Maintenance
☞ Apply grease to lubrication points 1 on the bucket ram.
☞ Apply grease to lubrication points 2 on the stick ram.
☞ Apply grease to lubrication points 2 on the stick ram.
☞ Apply grease to lubrication points 3 on the boom ram.
☞ Apply grease to lubrication points 3 on the boom ram.
Lubrication points on the boom and stick
☞ Apply grease to lubrication points 4 on the boom.

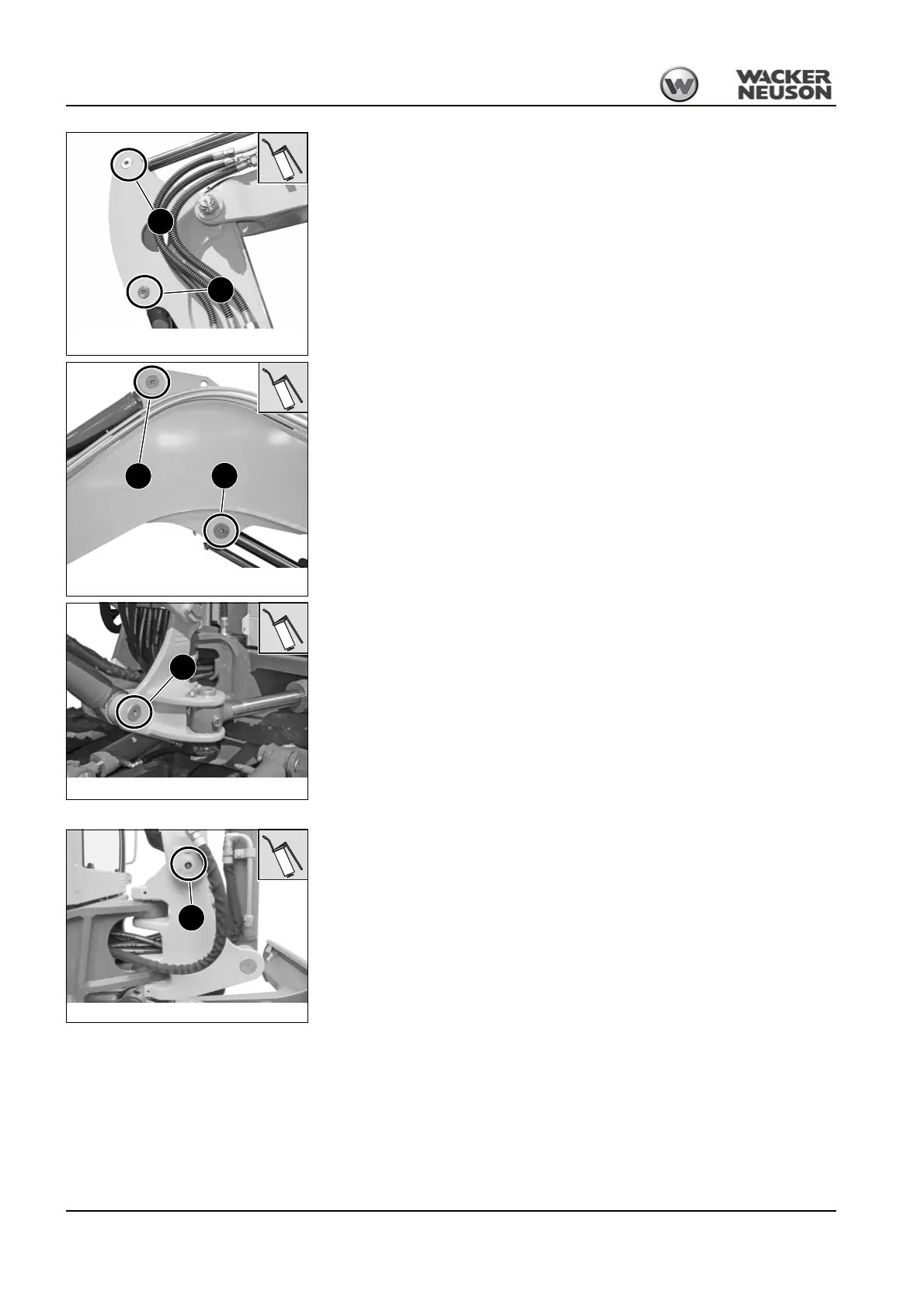

Fig. 305: Lubrication points on bucket and stick rams
2
1
Fig. 306: Lubrication points on boom and stick rams
2
3
Fig. 307: Lubrication points on the boom ram
3
Fig. 308: Boom lubrication points
4
