Operation
Right-hand control lever
Lowering the boom with the engine stopped
Lower the boom as follows:
☞ Ensure that no-one is dangerously close to the machine.
☞ Turn the ignition key to position “1”.
☞ Press forward and hold the control lever (A and E)
➥ Until the boom is completely lowered.
☞ Return the control lever to neutral.
Releasing pressure
Proceed as follows:
☞ Stop the engine
☞ Move the control lever in all directions a few times.
➥ This releases the pressure in the hydraulic system.
– see chapter 3.56 Releasing the pressure on the operating hydraulics on page 3-102

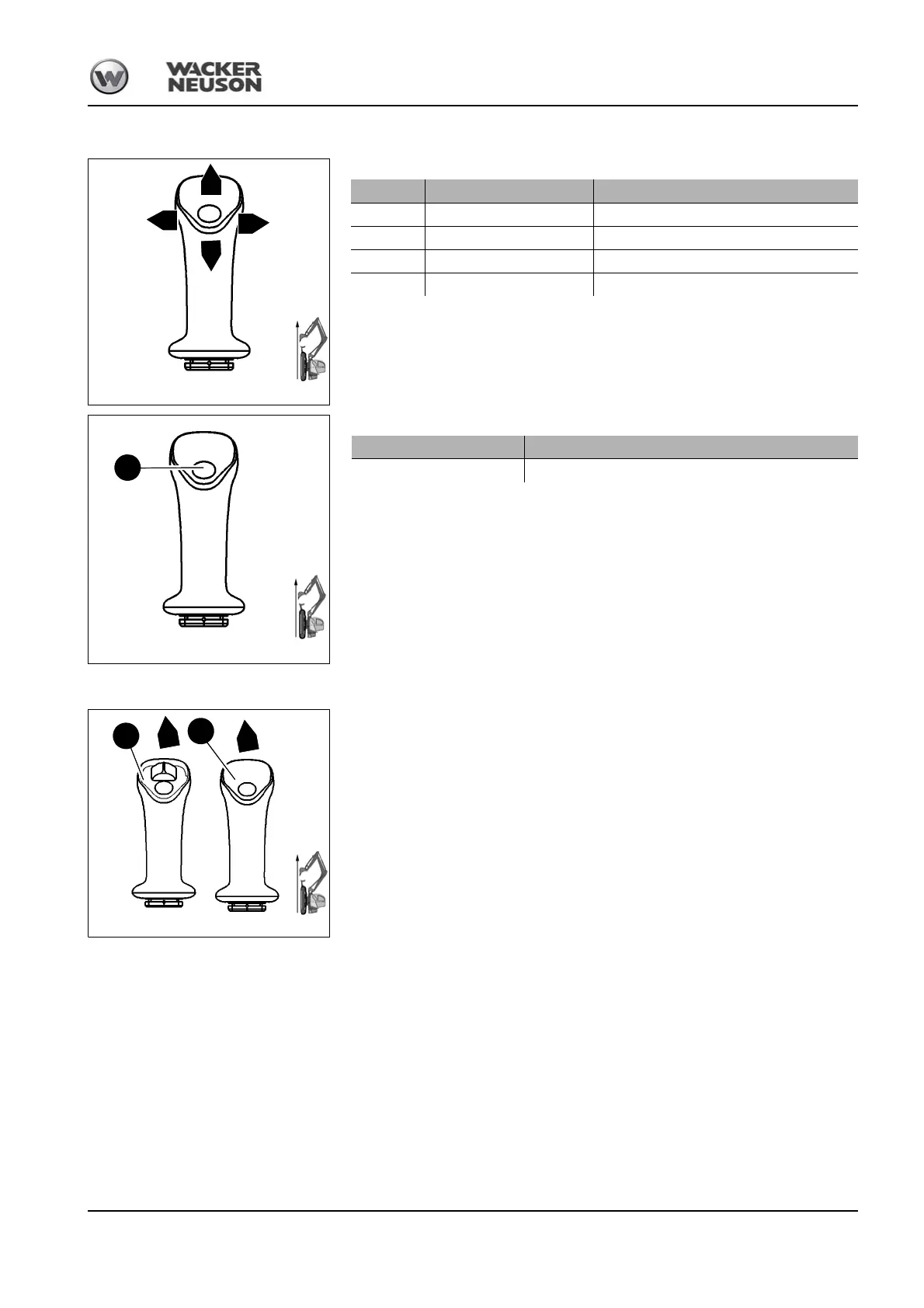

Fig. 188: Right-hand control lever
H
G
E
F
Position Lever Function
E
Forward Lowers the boom
F
To the right Tilts out the bucket
G
Backward Raises the boom
H
To the left Tilts in the bucket
Fig. 189: Functions of right-hand control lever
H
Button Function
H
Horn
Fig. 190: Lowering the boom with the engine stopped
A
E
3
4
