Operation
No thrusting the stabilizer blade
☞ Do not thrust the stabilizer blade against rocks or blocks to avoid damage to the rams
and the blade itself.
Retracting attachments
☞ Ensure that the bucket does not hit the stabilizer blade as you retract attachments for
driving or transport.
Stabilizer blade fully lowered
☞ Fully lower the stabilizer blade when using it on the side opposite the excavation side.
Work position of machine
Proceed as follows:
☞ Place stabilizer blade A on the side you want to dig.

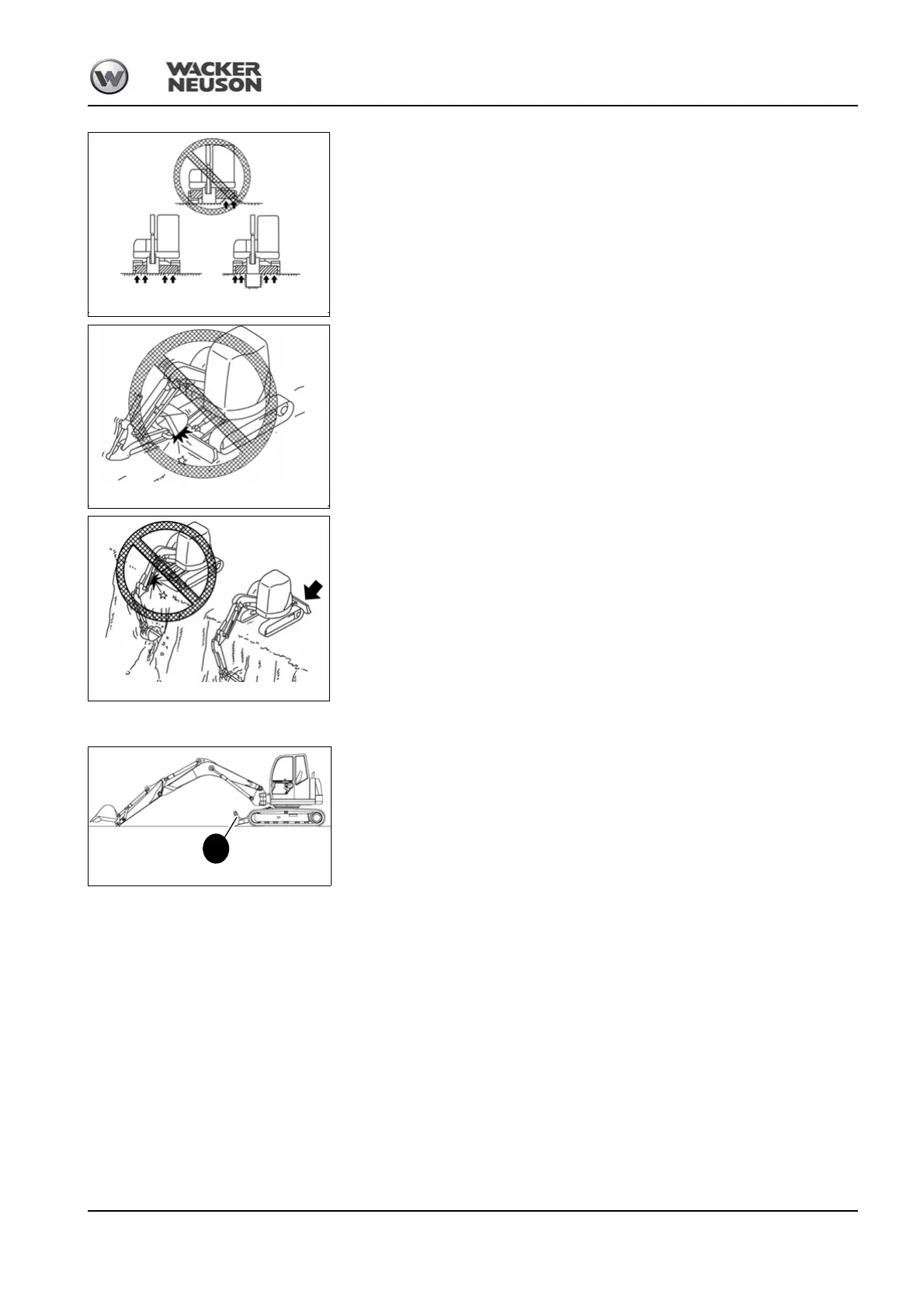

Fig. 237: No thrusting the stabilizer blade
Fig. 238: Retracting attachments
Fig. 239: Stabilizer blade fully lowered
Fig. 240: Work position of machine
A
