5.13 Travelling drive
The engine components and the oil are very hot immediately after switching off
the machine. If the inside of the drive gear is under pressure, the oil or the plug
can be squeezed out.
Risk of injury and scalding.
☞ Wait until the engine has cooled down before taking up work.
☞ Slowly open the plug to release the pressure inside.
Checking the oil level and adding oil
☞ Place the machine on firm, level and horizontal ground.
☞ Place the machine so that filler plug A is at the top.
☞ Stop the engine.
☞ Let the engine cool down.
☞ Raise the control lever base.
☞ Unscrew screws A and B with a suitable tool.
☞ A small quantity of oil must flow out of opening B.
➥ If the oil does not flow out of opening B, add oil:
☞ Add oil through opening A,
➥ until a small quantity of oil flows out of opening B.
☞ Screw screws A and B back in again.
☞ Move the machine a few metres.
☞ Check the oil level again.
➥ If the oil level is not correct:
☞ Repeat the procedure
Draining oil
☞ Place the machine on firm, level and horizontal ground.
☞ Place the machine so that filler plug A is at the bottom.
☞ Stop the engine.
☞ Let the engine cool down.
☞ Raise the control lever base.
☞ Unscrew screws A and B with a suitable tool.
➥ The oil now flows out of opening A.
☞ Use a suitable container to collect the oil as it drains.
Collect the oil with a suitable container and dispose of it in an environmentally
friendly manner.

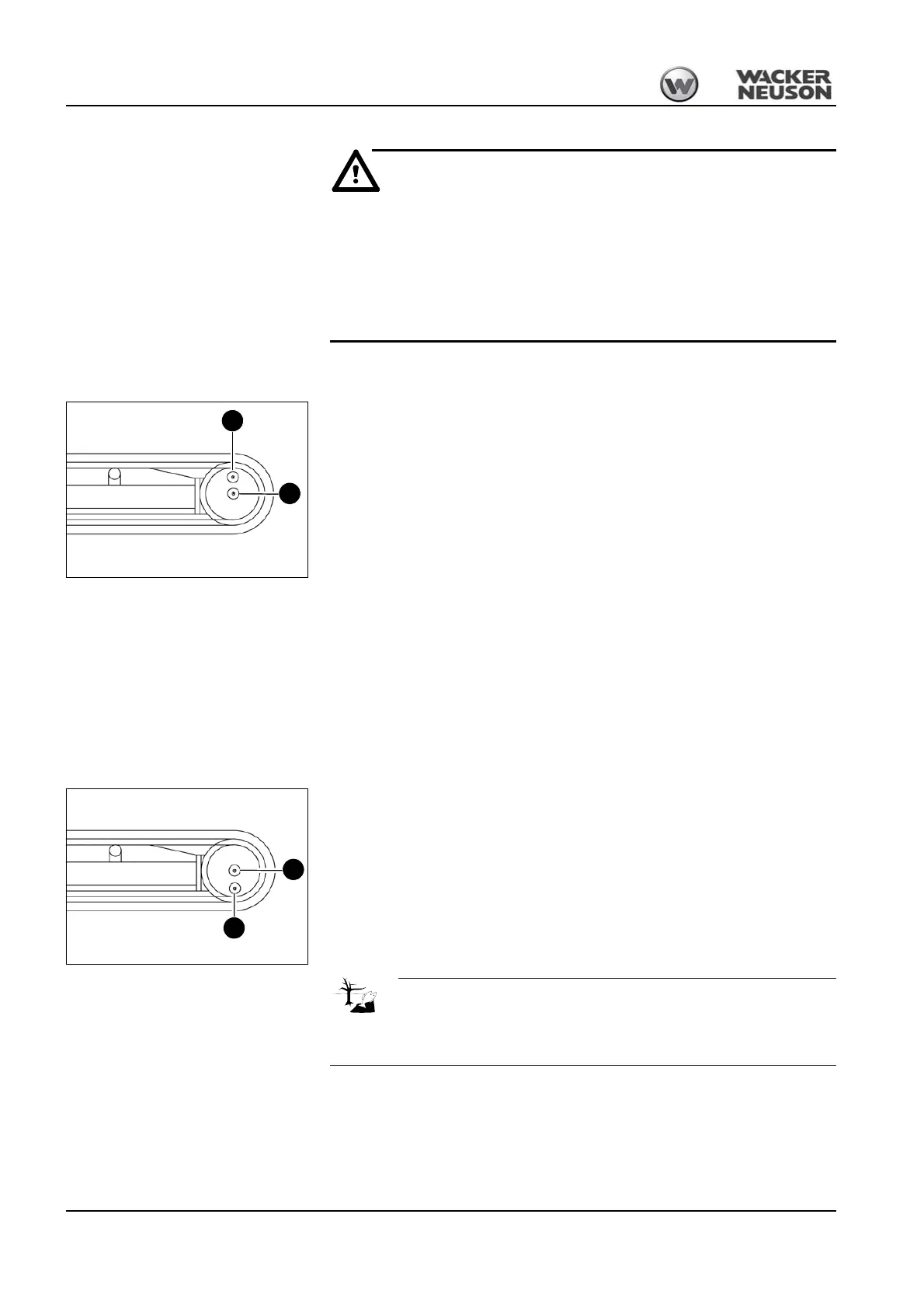

Fig. 300: Checking the oil level
