3-24 BA 50Z3/6003 en – Edition 4.3 * * 5003b330.fm
Operation
3.15 Special instructions for driving on public roads
The machine is subject to the:
• Applicable legal regulations of your country
Also observe the applicable regulations for accident prevention of your country.
Drive position
• Adjust the seat, head rest and armrest to the user’s weight and size.
• Set the machine to drive position:
• Position the machine as shown.
• Position the boom at the centre and raise it about 400 mm (about 15.74 in) off the
ground.
When driving, raise the stabilizer blade sufficiently high off the ground to avoid
ground contact on rough terrain.
Drive levers
Rotating through 180° inverts the drive lever functions (the stabilizer blade is
at the rear).
Risk of accidents.
☞ Bear in mind the stabilizer blade’s position.
The stabilizer blade side is the front side.
Raise the boom and the stabilizer blade.
The machine can be moved either with the drive levers or with the pedals. Lock the upper
carriage when travelling over longer distances.
3
Forward or reverse drive speed depends on the position of the drive levers or the drive
pedals, and of the position of the high-speed switch.
Ensure that both tracks move as you change direction in order to avoid unneces-
sary abrasion.

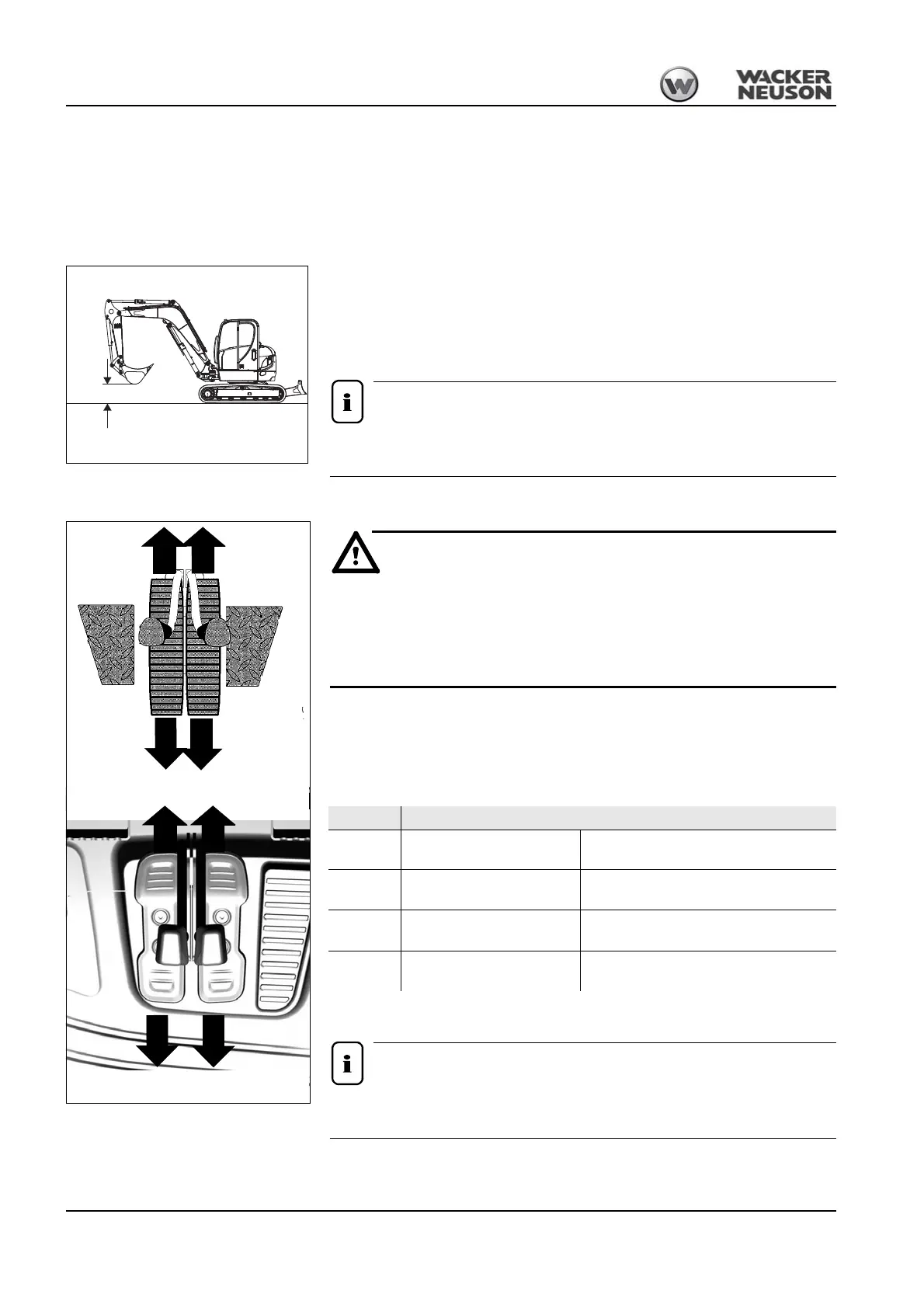

Fig. 60: Travel position
About 400 mm
(about 15.74")
Fig. 61: Drive pedal (up to serial no. AH02781)
1
2
3
4
Fig. 61: Drive pedals (from serial no. AJ02777)
3
4
1
2
Position Function
1
2
Push forward
Push forward
Machine moves forward
3
4
Pull backward
Pull backward
Machine moves backward
3
2
Pull backward
Push forward
Machine turns to the left
1
4
Push forward
Pull backward
Machine turns to the right
