WinGD X62DF-S2.0 User Manual

Marine Installation Manual 2022-03 4-71
4 Ancillary Systems
4.7 Fuel oil system
X62DF-S2.0
For changing over between heavy fuel oil and marine diesel oil (MDO/MGO)
and vice versa, as well as for operation on distillate fuel, refer to the separate
Concept Guidance (DG 9723), which is provided on the WinGD webpage
under the following link:
Concept Guidance Distillate Fuels

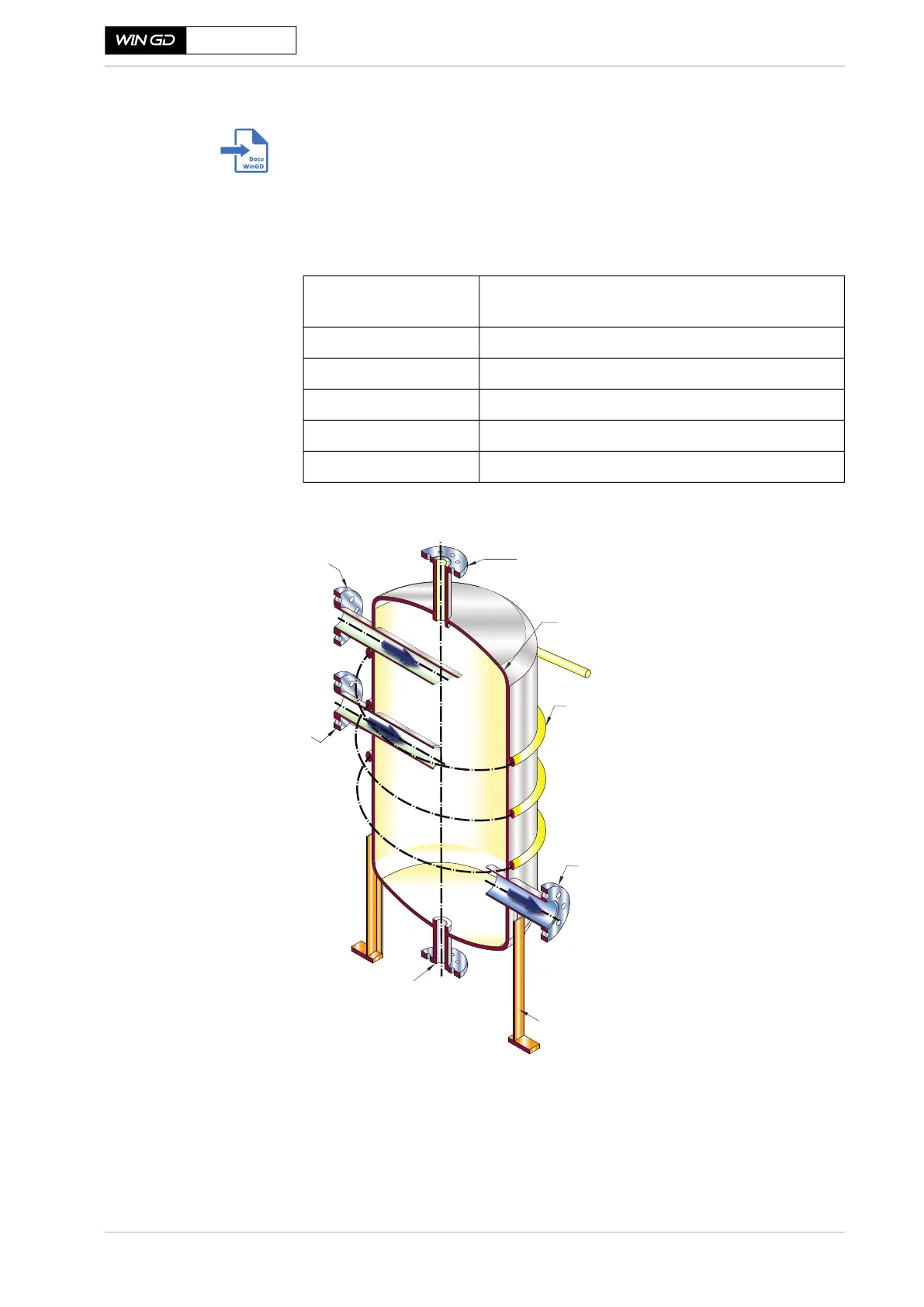

Figure 4-46 Mixing unit
Type Cylindrical steel fabricated pressure vessel as shown in
Figure 4-46
Capacity Refer to GTD.
Dimensions See MIDS.
Service pressure 10 bar
Test pressure According to classification society
Working temperature Up to 150°C
2
SM-0068
1
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Outlet
Inlet, return pipe
Inlet from feed pump
Vent
Drain
Heating coil
Insulation
Mounting brackets
