4.9 Leakage collection system and washing devices
X62DF-S2.0
4.9.2 Draining of exhaust uptakes
Engine exhaust uptakes can be drained automatically using a system as shown in
Figure 4-56.

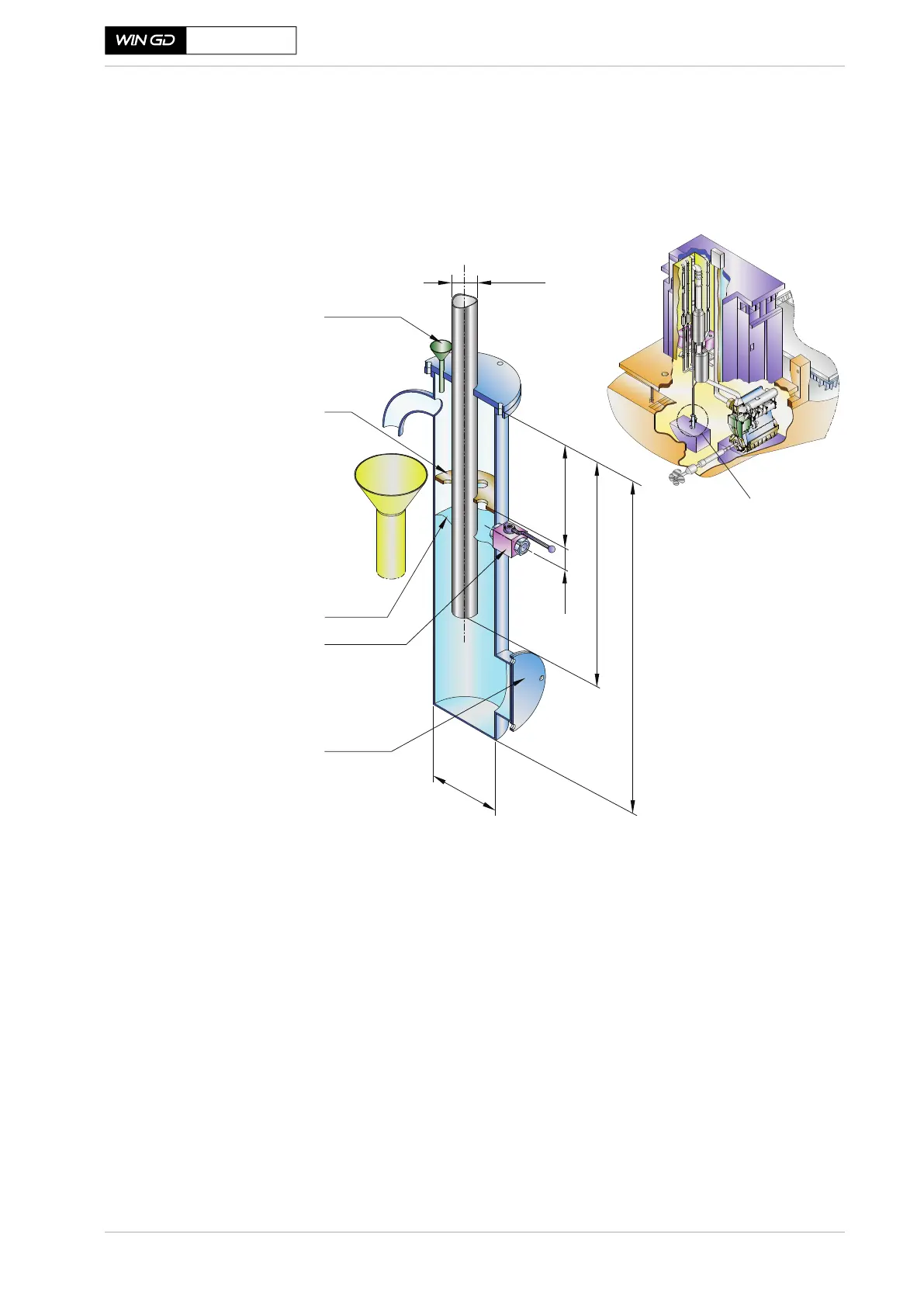

Figure 4-56 Arrangement of automatic water drain
4.9.3 Air vents
The air vent pipes of the ancillary systems have to be fully functional at all incli-
nation angles of the ship at which the engine must be operational. This is nor-
mally achieved if the vent pipes have an uninterrupted inclination of min. 5%.
Such arrangement enables the vapour to separate into its air and fluid compo-
nents, discharging the air to atmosphere and returning the fluid to its source.
SM-0081
1
2
3
4
wl
Filling funnel
Pipe bracket
Test cock
Cleaning door
Minimum water level
Sectional detail for view A
1
Ø108 x 5
1700
Ø368 x 8
1130
530
100
A
2
wl
3
4
Proposal for
design and dimensions
