Marine Installation Manual 2022-03 3-1
3 Engine Installation
3.1 Engine dimensions and masses
X62DF-S2.0
3 Engine Installation
The purpose of this chapter is to provide information to assist in the installation
of the engine. It is for guidance only and does not supersede current instructions.
3.1 Engine dimensions and masses

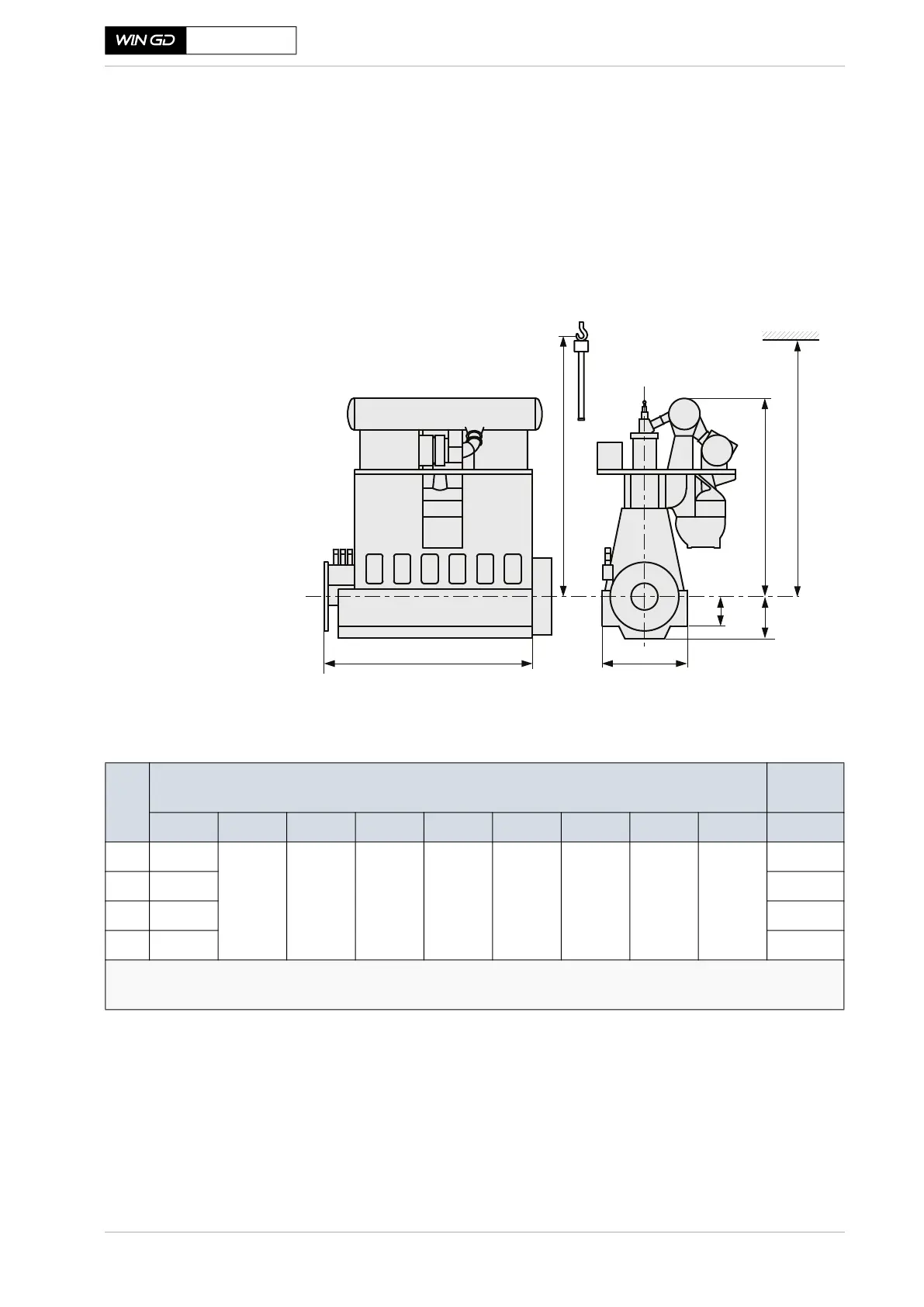

Figure 3-1 Engine dimensions
Table 3-1 Engine dimensions and masses
No.
cyl.
Dimension in mm with a tolerance of approx. ±10 mm
Net eng.
mass
a)
a) Without oil / water; net engine mass estimated according to nominal dimensions given in drawings, including turbocharger and SAC, piping
and platforms
A B C D E F1
b)
b) Min. height for vertical removal of piston with standard crane
F2
c)
c) Min. height for vertical removal of piston with double-jib crane
F3
d)
d) Min. height for tilted removal of piston with double-jib crane
G [tonnes]
5 6,260
3,440 1,300 8,745
Dim. depending
on TC type
10,300 10,300 9,680 1,835
280
6 7,260 325
7 8,260 370
8 9,260 415
Min. capacity of bridge crane: 4,500 kg
Min. capacity of double-jib crane
e)
: 2 x 2,450 kg
e) In cases of double-jib crane application, both hooks are used in parallel; special lifting tools are required.
When selecting the double-jib lifting method, it must be considered that maintenance work will demand additional time and effort, espe-
cially for tilted removal (F3), compared to standard procedure (F1). Availability of the special lifting tools needs to be considered in the pro-
ject schedule.
