WinGD X62DF-S2.0 User Manual

Marine Installation Manual 2022-03 4-75
4 Ancillary Systems
4.7 Fuel oil system
X62DF-S2.0

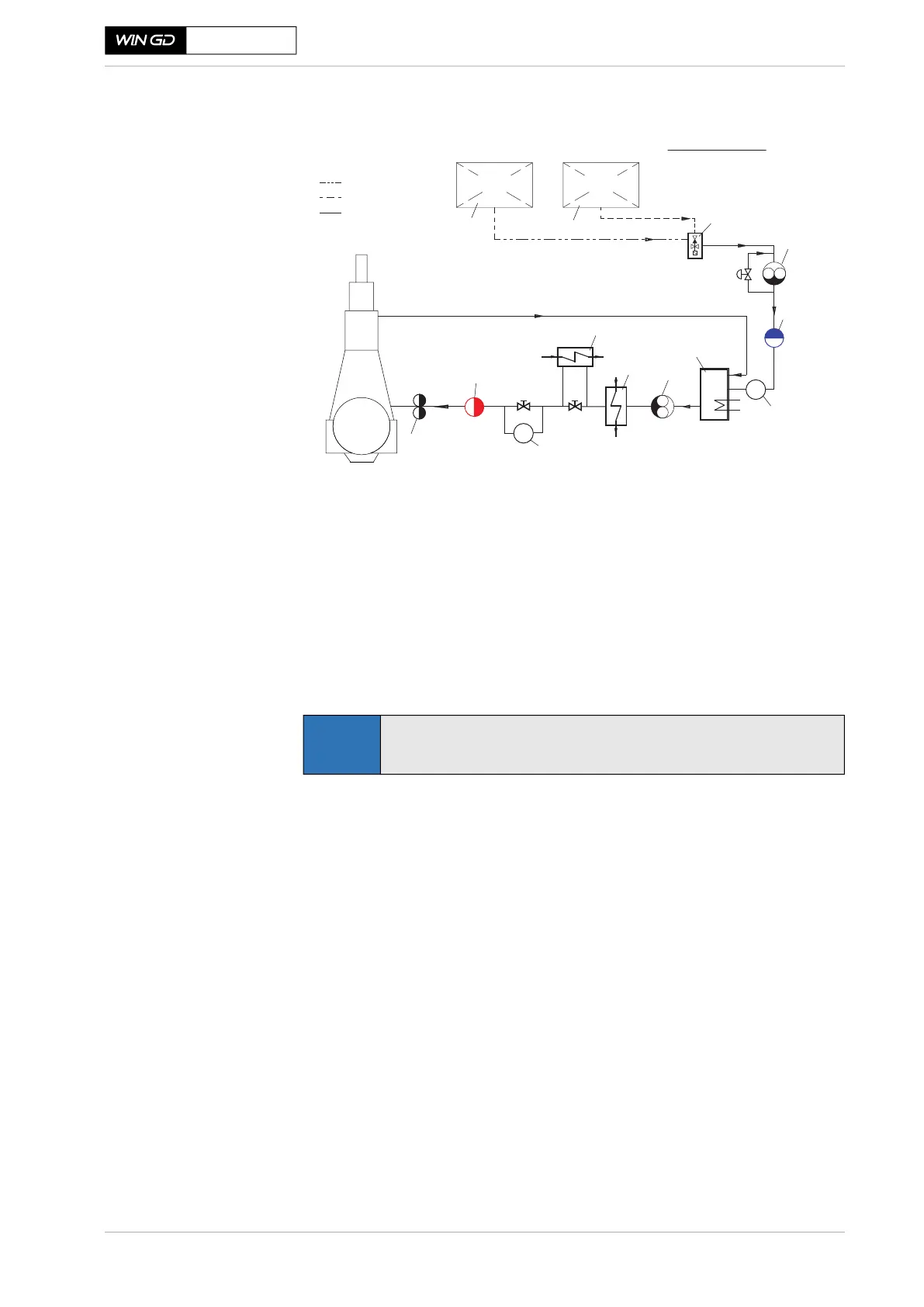

Figure 4-48 Fuel oil filter arrangement ‘A’
The automatic self-cleaning filter of maximum 10m abs. is used to protect the
engine against serious damage. It captures the catalytic fines which were not re-
moved by the fuel oil separator. In addition, the filter provides a good indication
of the separator's efficiency.
NOTE
The self-cleaning performance must be suitable for the required filter
fineness.
SM-0206
Main
Engine
1 HFO/LSHFO settling, storage and separation system
2 MDO/MGO settling, storage and separation system
3 Automatic fuel changeover unit
4 Feed pump - Low pressure
5 Automatic self-cleaning filter
6 Flow meter
FM
PRV
Pm
5 (Option 2)
5 (Option 1)
7
4
8
10
6
3
1
2
12
Pm
Pm
9
Only 1 automatic self-cleaning filter
to be installed: either before the
engine inlet (hot side), or after the
low-pressure feed pump (cold side)
LT Cooling
water system
7 Fuel oil mixing unit
8 Booster pump - High pressure
9 Fuel oil end-heater
10 MDO/MGO heat exchanger
11 Viscometer
12 Duplex filter
Option 1 & Option 2:
HFO/LSHFO piping
MDO/MGO piping
Common piping
HFO/LSHFO
MDO/MGO
V
11
