WinGD X62DF-S2.0 User Manual

Marine Installation Manual 2022-03 3-13
3 Engine Installation
3.5 Engine foundation and seating
X62DF-S2.0

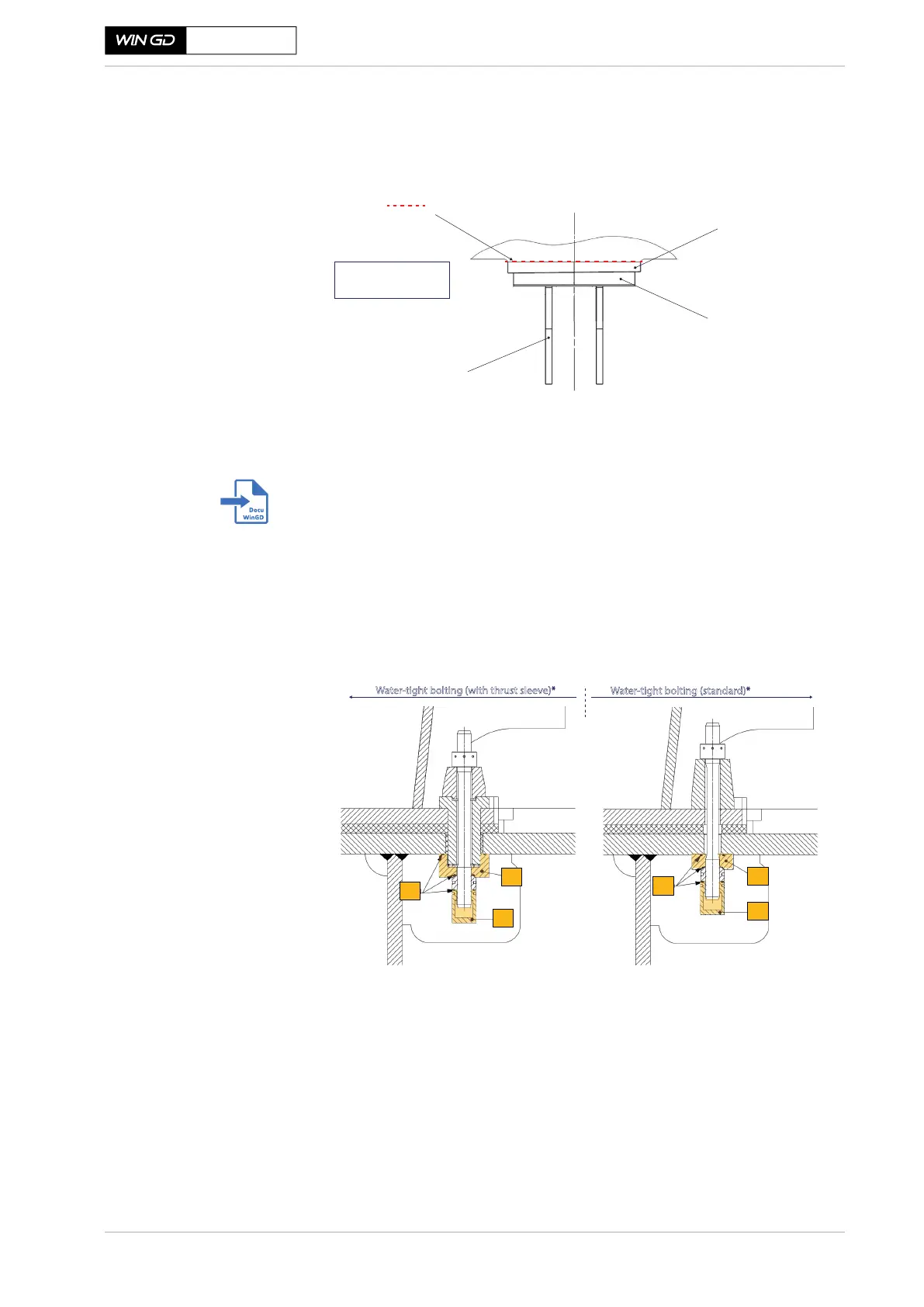

Figure 3-8 Side stopper installation arrangement
More details about engine seating can be found in the relevant Fitting Instruc-
tion (DG 9710) on the WinGD webpage under the following link:
Fitting Instruction
In some specific fitting conditions (e.g. when the foundation is directly con-
nected to the bottom or to the cofferdam), the classification society requires the
use of water-tight bolting for the engine fixation. In these cases, the use of water-
tight bolting protects the engine room from the risk of flooding (see Figure 3-9).
Figure 3-9 Proposed designs for water-tight bolting
SM-0853
Side stopper
Wedge
Contact surface
Supports
Side stopper welded to
the foundation top plate
SM-0854
13
10
12
11
12
13
10: Conical socket
11: Conical socket
12: Cover
13: Sealings
Water-tight bolting (with thrust sleeve)*
Water-tight bolting (standard)*
(*Assembly parts for water-Ɵght bolts)
