YASKAWA SGDA series User Manual

5.4Σ -Series Dimensional Drawings
291

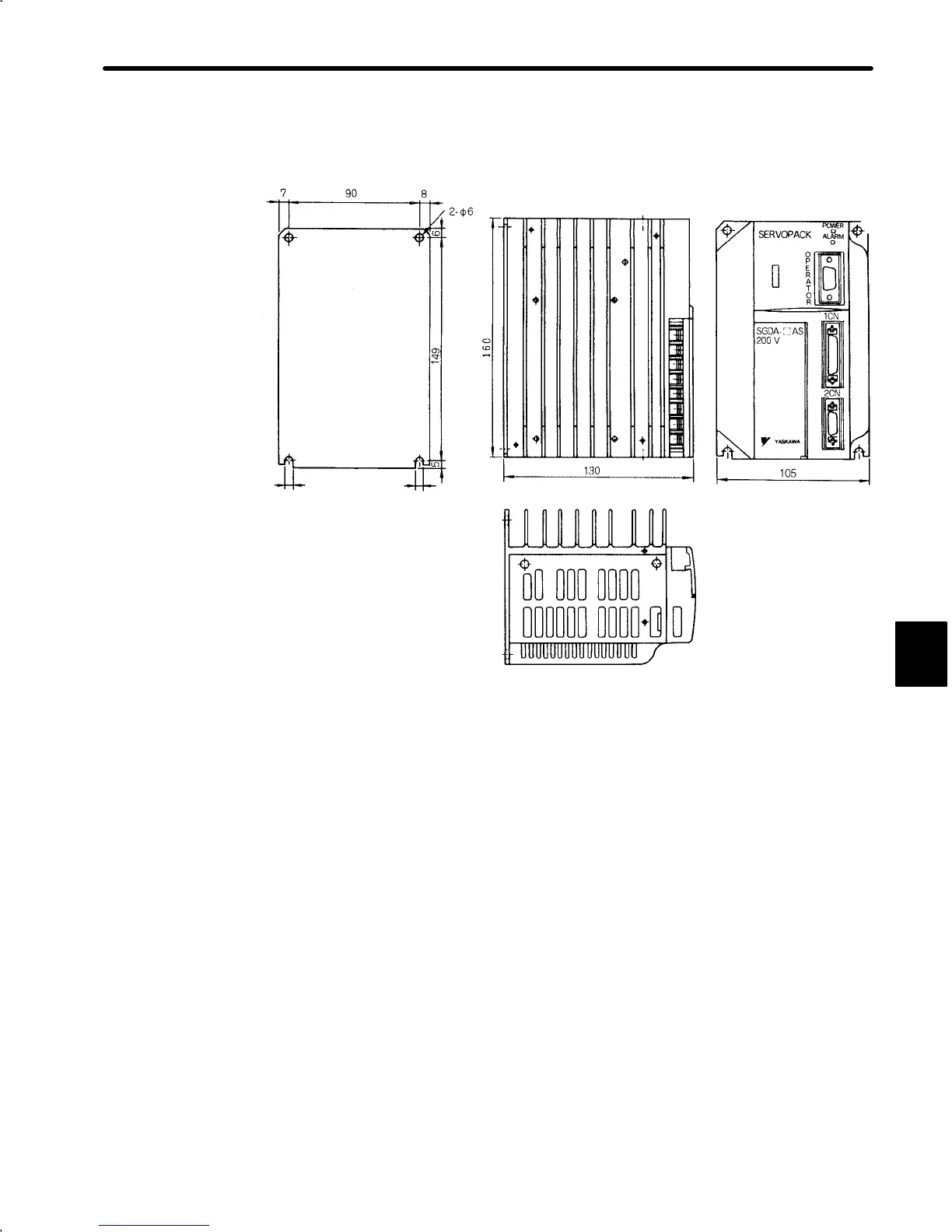

(3) SGDA-08Aj (200V, 750W (1.01 HP))
SGDA-03Bj (100V, 300W (0.40 HP))
Approx. Mass: 1.5 kg (3.31 lb)
(0.28)
(3.54)
(0.31)
(2-Φ0.24) MTG HOLES
(0.24)
(0.20)
(5.87)
(6.30)
(5.12)
(0.24)
(4.13)
(0.24)
6
6
5.4.3 Digital Operator Dimensional Drawings
1) The following two types of Digital Operator are available.
a) JUSP-OP02A-1 Hand-held Type
b) JUSP-OP03A Mount Type
