SERVO SELECTION AND DATA SHEETS
5.6.10 Circuit Breaker
330

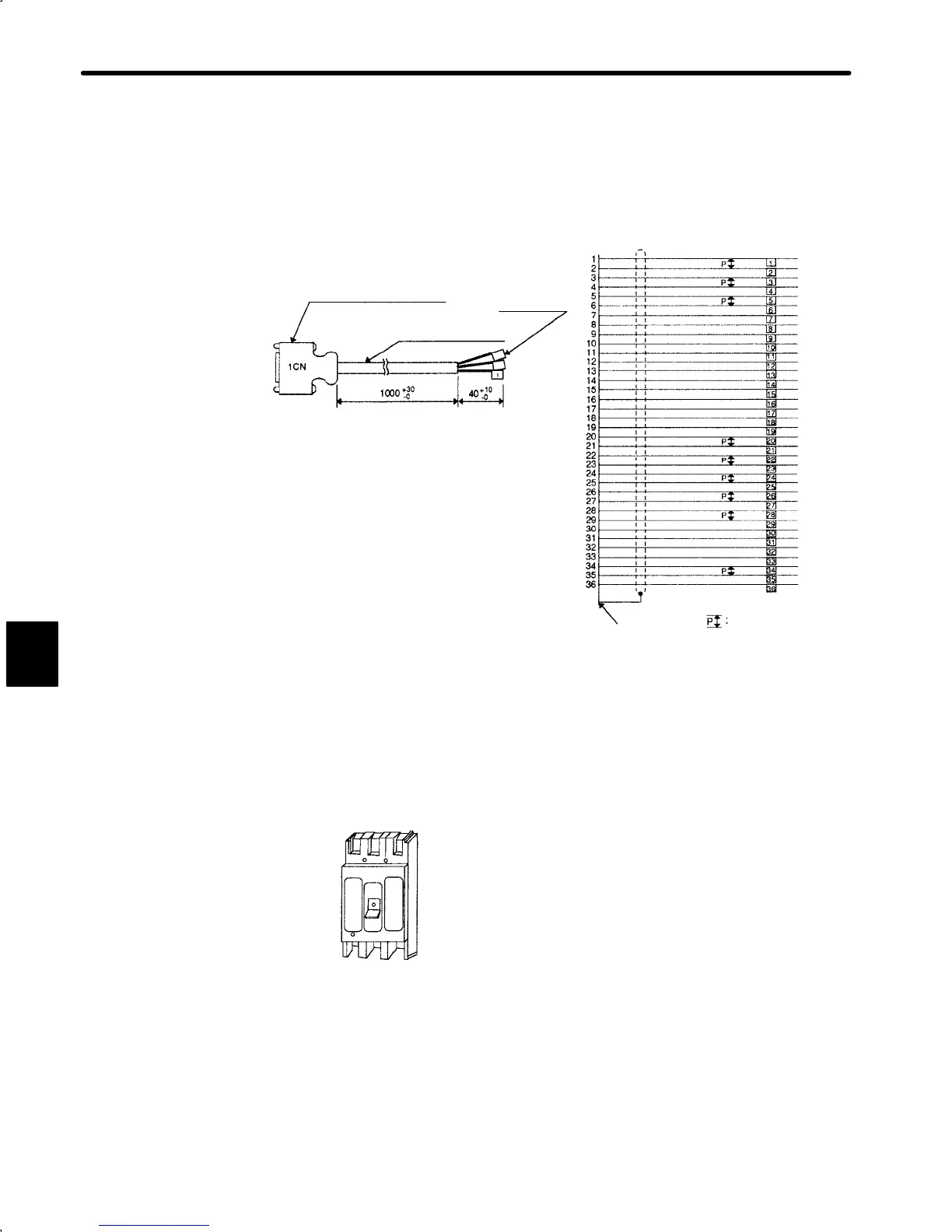

5.6.9 Cable With 1CN Connector and One End Without Connector
1) Use a cable with no connector at the host controller end. The loose wires are marked with
labels with terminal numbers indicated.
Connector at Servopack End (36 P)
10136-6000EL
Shell
10336-52A0-008
Cable (Black)
SSRFPVV-SB 28 x 18P
Terminal number
labels
SGDA Servopack (3M36P connector)
•
Cable with 1CN Connector and One End Loose Wires:
DE9404859
Details of Leads
Case
Connector Unit
Shield
Twisted Pair
3.3
+0.098
0
ft 0.13
+0.033
0
ft
()()
(3M)
5.6.10 Circuit Breaker
1) The customer should purchase a circuit breaker (MCCB) of appropriate capacity.
Use to protect the power lines.
•
Recommended Product
Ground fault detector for motor protection manufactured by
Mitsubishi Electric Co. Ltd.
Type: MN50-CF
Rated Current: 7.1 A, 10 A, 16 A, 25 A, 32 A, 45A
5
