APPLICATIONS OF Σ-SERIES PRODUCTS
3.1.2 Setting the Overtravel Limit Function
56

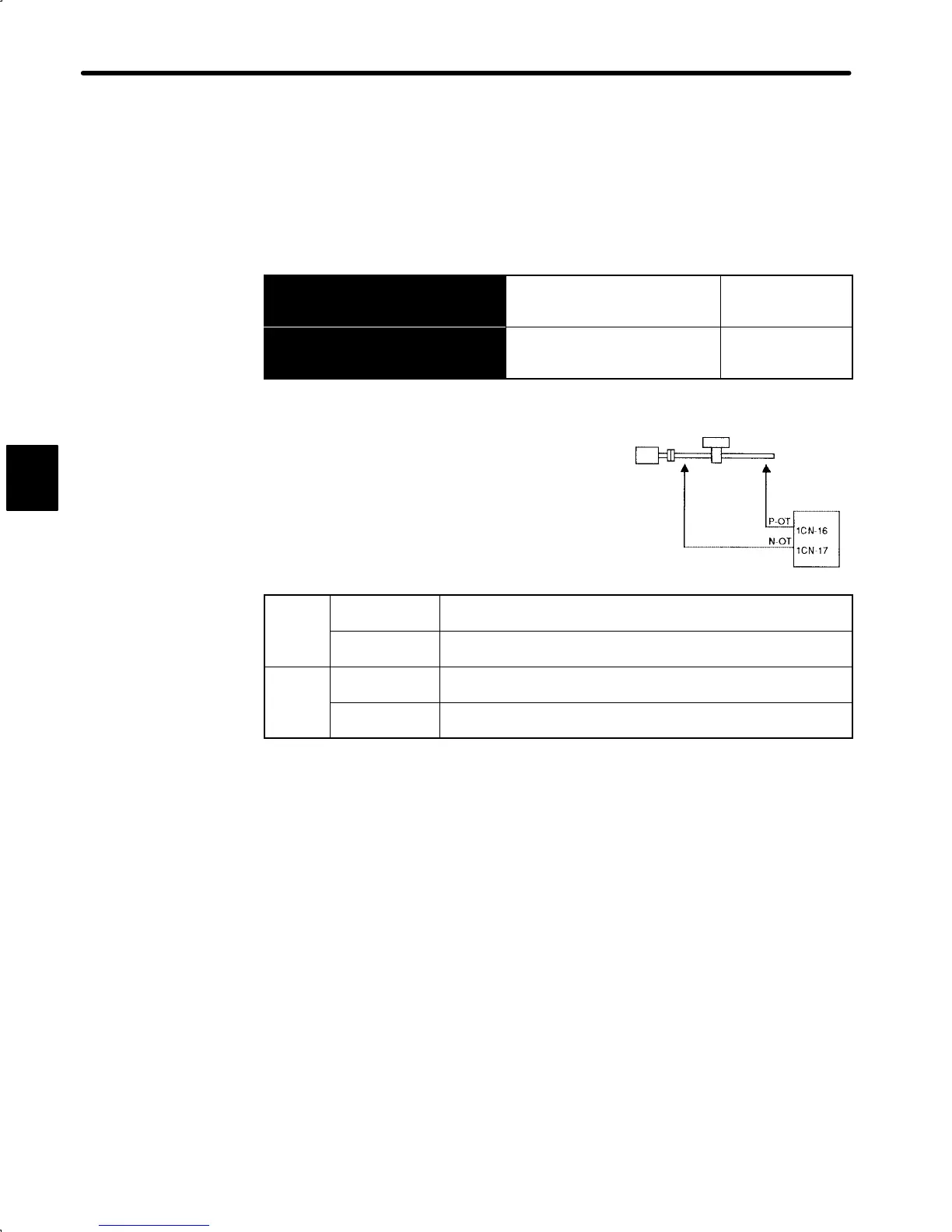

3.1.2 Setting the Overtravel Limit Function
1) The overtravel limit function forces the moving part of the machine to stop when it ex-
ceeds the movable range.
2) To use the overtravel limit function, connect the following input signal terminals correctly.
→ Input P-OT 1CN-16
Forward Rotation Prohibited
(Forward Overtravel)
For Speed/Torque
Control and
Position Control
→ Input N-OT 1CN-17
Reverse Rotation Prohibited
(Reverse Overtravel)
For Speed/Torque
Control and
Position Control
Inputs terminals for overtravel limit switch.
For linear motion, connect a limit switch to prevent
damage to the machine.
P-OT
ON: 1CN-16 is
at low level.
Forward rotation allowed. Normal operation status.
OFF: 1CN-16
is at high level.
Forward rotation prohibited (reverse rotation allowed).
N-OT
ON: 1CN-17 is
at low level.
Reverse rotation allowed. Normal operation status.
OFF: 1CN-17
is at high level.
Reverse rotation prohibited (forward rotation allowed).
3
Reverse
rotation side
Forward
rotation side
Servopack
Limit switch
Servomotor
