APPLICATIONS OF Σ-SERIES PRODUCTS

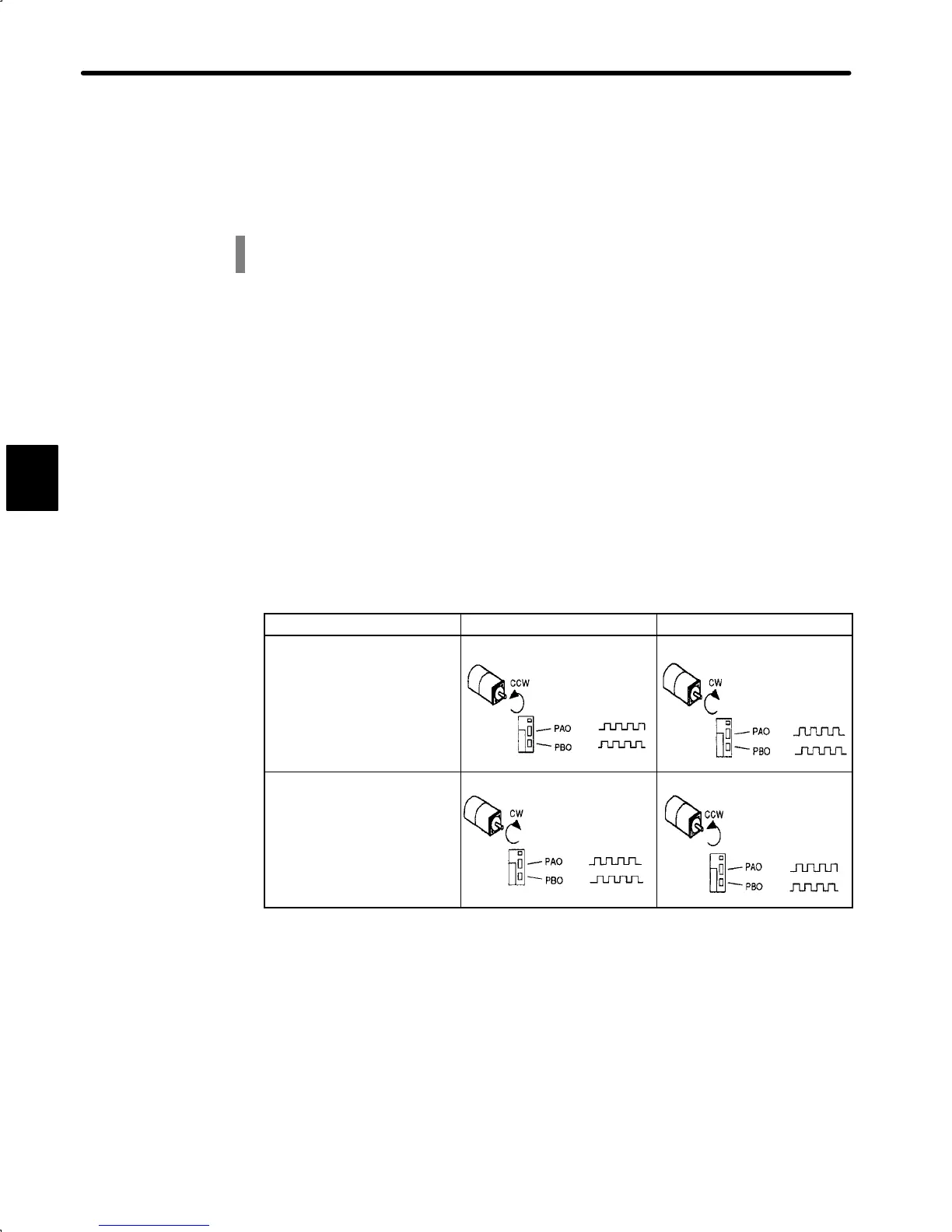

3.1.1 Changing the Direction of Motor Rotation
54
3.1 Setting User Constants According to Machine
Characteristics
This section describes how to set user constants according to the dimensions and
performance of the machine to be used.
3.1.1 Changing the Direction of Motor Rotation 54...........................
3.1.2 Setting the Overtravel Limit Function 56...............................
3.1.3 Restricting Torque 59...............................................
3.1.1 Changing the Direction of Motor Rotation
1) This Servopack provides a reverse rotation mode in which the direction of rotation can be
reversed without altering the servomotor wiring. With the standard setting, forward
rotation is defined as counterclockwise (ccw) rotation viewed from the drive end.
2) If reverse rotation mode is used, the direction of motor rotation can be reversed without
other items being changed. The direction (+/ −) of axial motion is reversed.
Standard Setting Reverse Rotation Mode
Forward Run Reference
Encoder output
from Servopack
(Phase A)
(Phase B)
Encoder output
from Servopack
(Phase A)
(Phase B)
Reverse Run Reference
Encoder output
from Servopack
(Phase A)
(Phase B)
Encoder output
from Servopack
(Phase A)
(Phase B)
3
