5.6.14 Regenerative Unit
334
5.6.14 Regenerative Unit
1) JUSP−RG08 type

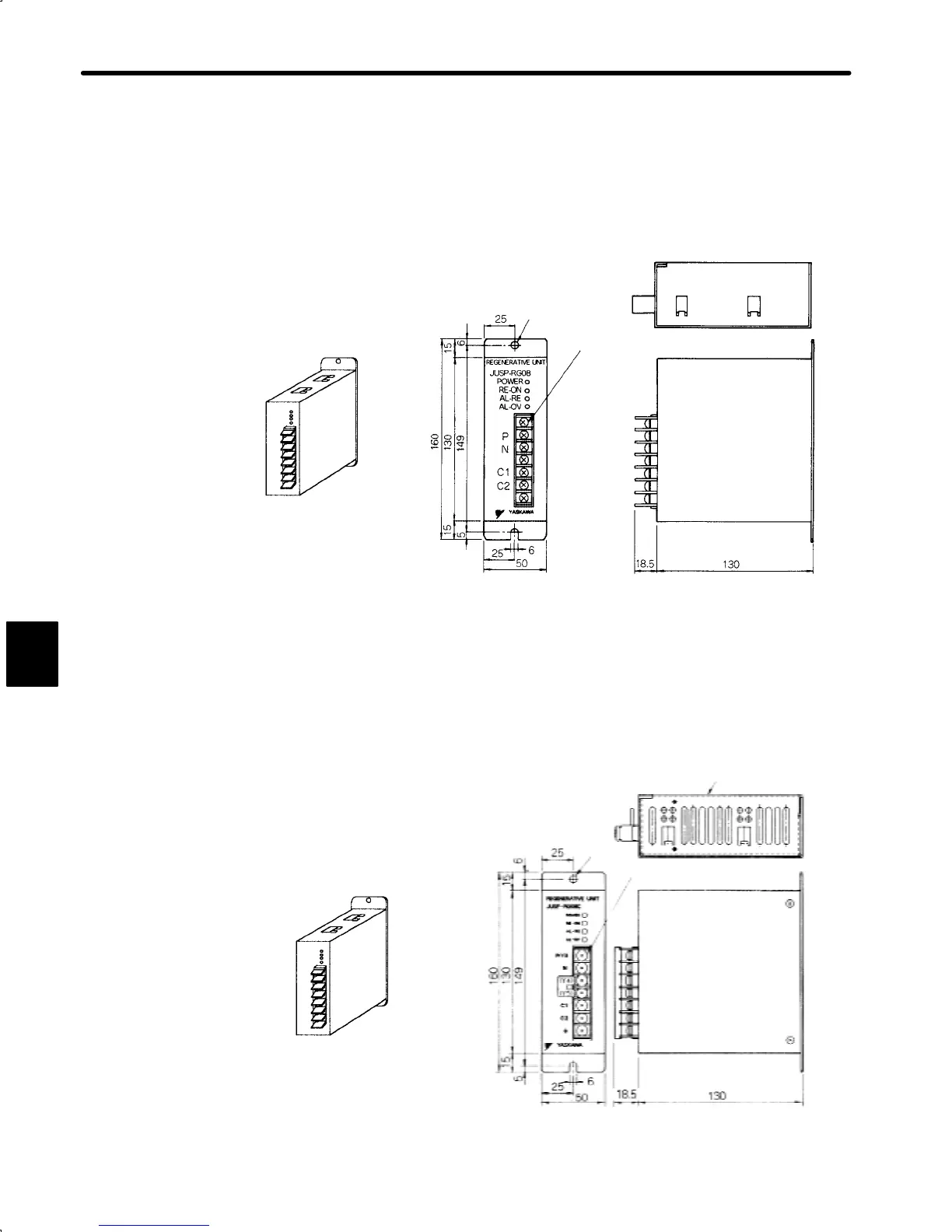

Dimensional drawings of the regenerative unit are shown below.
• Dimensional Drawings
M4 External Terminal Screws
Approx. Mass: 1 kg (2.20 lb)
Hole 6 dia.
(Φ0.24)
(0.78)
(0.24)
(1.97)
(0.98)
(0.73)
(5.12)
(0.59)
(6.30)
(5.12)
(5.87)
(0.20)
(0.59)
(0.24)
2) JUSP−RG08C type
JUSP−RG08C type is an exterior type regenerative unit. When regenerative ability of the
built−in resistor is insufficient, install this regenerative unit to enhance the regenerative
ability.
• Dimensional Drawings
M4 External Terminal Screws
Approx. Mass: 1 kg (2.20 lb)
Hole 6 dia.
(Φ0.24)
(1.97)
(0.98)
(0.73)
(5.12)
(6.30)
(5.12) (5.87)
(0.20)
(0.59)
(0.24)
(0.24)
(0.98)
(0.59)
Nameplate
