2.2.3 Installing the Servopack
22

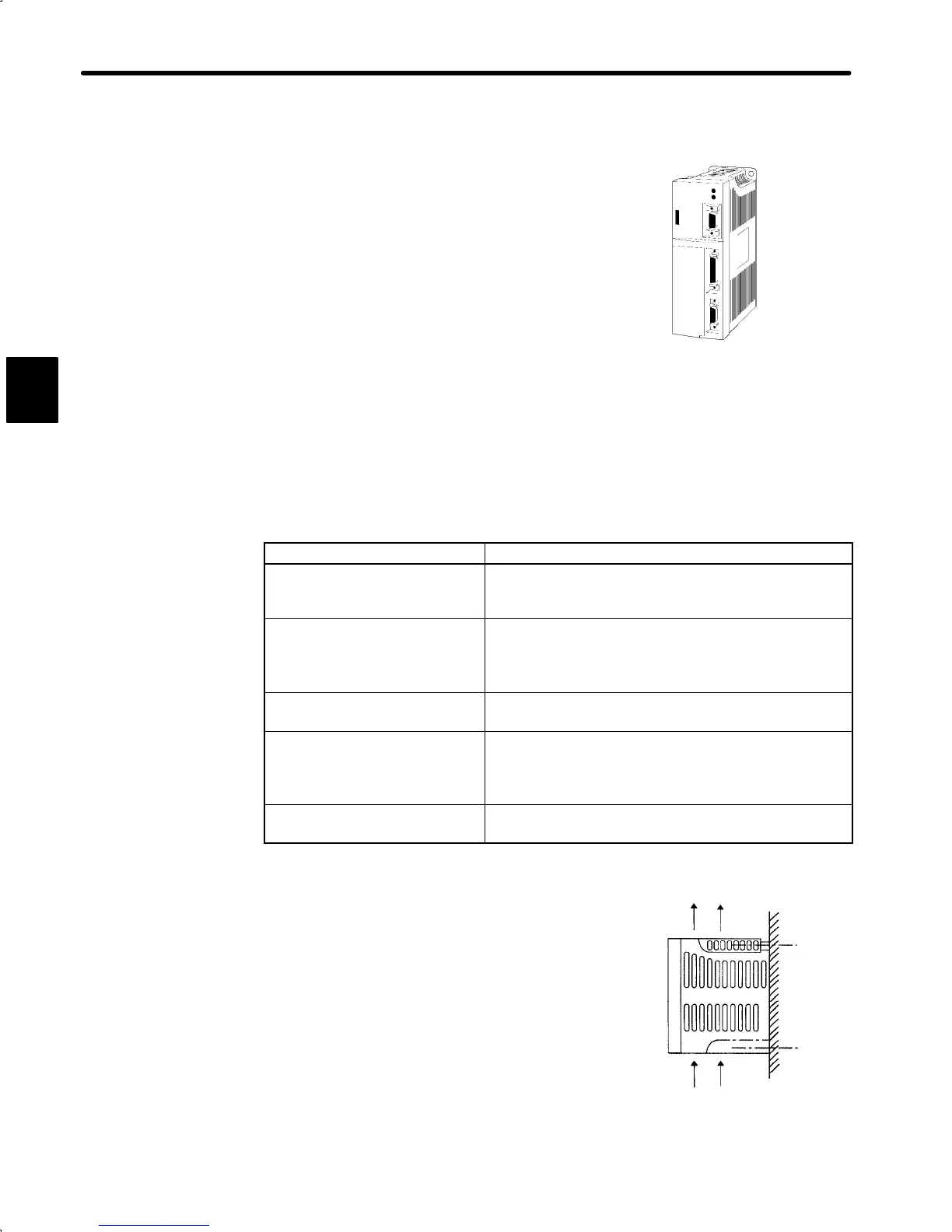

2.2.3 Installing the Servopack
Σ-Series SGDA Servopack is a book-shaped compact
servo controller.
Incorrect installation will cause problems. Always ob-
serve the installation instructions described in the next
page.
Storage:
When the Servopack is to be stored with the pow-
er cable disconnected, store it in the following
temperature range:
Between −20°C and 85°C
Installation sites:
Situation Notes on Installation
When installed in a control panel
Design the control panel size, unit layout, and cooling
method so that the temperature around the periphery of
the Servopack does not exceed 55°C.
When installed near a heating
unit
Suppress radiation heat from the heating unit and a
temperature rise caused by convection so that the
temperature around the periphery of the Servopack does
not exceed 55
°
C.
When installed near a source of
vibration
Install a vibration isolator underneath the Servopack to
prevent it from receiving vibration.
When installed in a place
receiving corrosive gases
Corrosive gases do not immediately affect the Servopack
but will eventually cause contactor-related devices to
malfunction. Take appropriate action to prevent corrosive
gases.
Others
Avoid installation in a hot and humid place or where
excessive dust or iron powder is present in the air.
Orientation:
Install the Servopack perpendicular to the wall as
shown in the figure.
The Servopack must be orientated as shown in
the figure because it is designed to be cooled by
natural convection.
• Firmly secure the Servopack through three or
four mounting holes.
2
SGDA Servopack
Ventilation
To Next Page
