Administrator’s Guide for Yealink Video Conferencing Systems
34

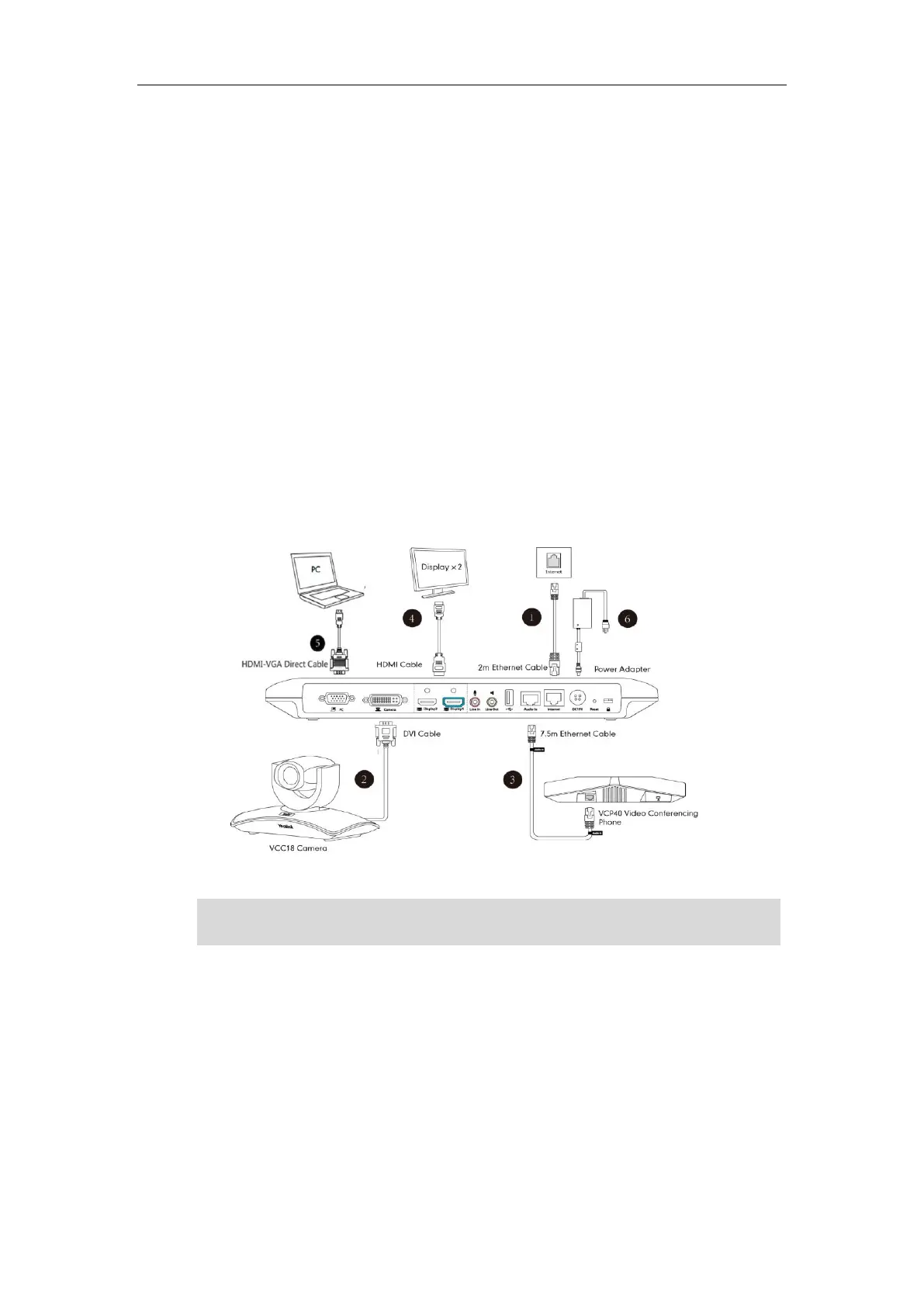

Installing the VC400 Video Conferencing System
Do the following:
1. Connect the Internet port on the VC400 Codec to a switch/hub device port with the
supplied 2m Ethernet cable.
2. Locate the Camera port on the back of the VC400 Codec, and connect it to the Camera
port of the camera with the supplied DVI cable.
3. Connect the Audio In port on the VC400 Codec to the Audio Out port on VCP40 video
conferencing phone with the 7.5m Ethernet cable labeled Audio in.
4. Locate the Display1 port on the VC400 Codec, and connect it to the HDMI port on the
display device with the supplied HDMI cable (Make sure the display device is powered on)
5. (Optional.) Locate the PC port of the VC400 Codec and connect it to the HDMI port on the
PC with the supplied HDMI-VGA direct cable for sharing content.
6. Connect the DC19V port on the VC400 Codec to an AC power outlet with the supplied
power adapter and power cord.
Note
Installing the VC120 Video Conferencing System
Do the following:
1. Connect the Internet port of the VC120 Codec to a switch/hub device port with the
supplied 2m Ethernet cable.
2. Locate the Camera port on the back of the VC120 Codec, and connect it to the Camera
port on the camera with the supplied DVI cable.
The VC400 video conferencing system should be used with Yealink original power adapter
(19V/3.42A) only. The use of the third-party power adapter may cause the damage to the system.
