Yealink VC400 Administrator's Guide

Configuring Network
73

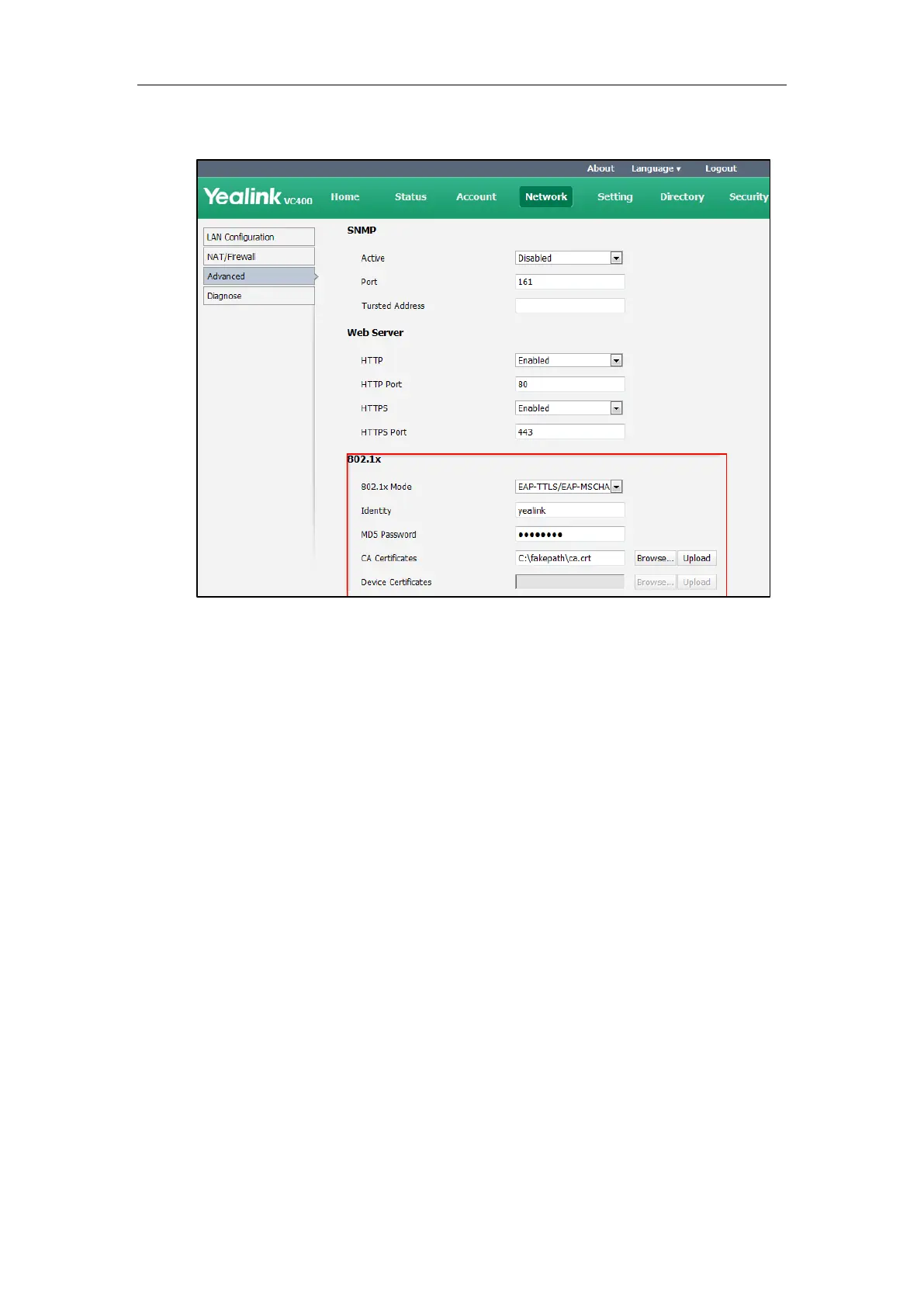

4) Click Upload to upload the certificate.
3. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will take effect after a reboot.
4. Click Confirm to reboot the system immediately.
To configure the 802.1X via the remote control:
1. Select Menu->Advanced (default password: 0000) ->Advanced Network.
2. Select the desired mode from the pull-down list of 802.1x Mode.
3. Press the Save soft key to accept the change.
The display device prompts “Reboot now?”.
4. Select OK to reboot the system immediately.
H.323 Tunneling
The H.245 protocol is a control protocol that manages the media sessions. It is a part of the
H.323 protocol suite. The H.245 protocol is used primarily to negotiate the master-slave
relationship between communicating systems. The H.245 messages can be encapsulated and
carried between H.225 controlled system within H.225 messages. This way of "piggy-backing"
an H.245 message to the H.225 message is referred to as H.323 Tunneling. The tunneling feature
relies on H.225 system-to-system connectivity (via TCP) to pass H.245 messages, and uses the
H.225 communication channel without creating a separate TCP socket connection (per H.323
call) for media control.

Yealink VC400 Specifications

General

Optical zoom	18 x
White balance	Auto, Indoor, Outdoor
Focus adjustment	Auto
Video codecs	H.264, H.264, H.263
Supported video modes	1080p
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.711a, G.722
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
ITU-supported standards	H.323
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
Power consumption (max)	30 W

Weight and Dimensions

Depth	183 mm
Width	330 mm
Height	40 mm
