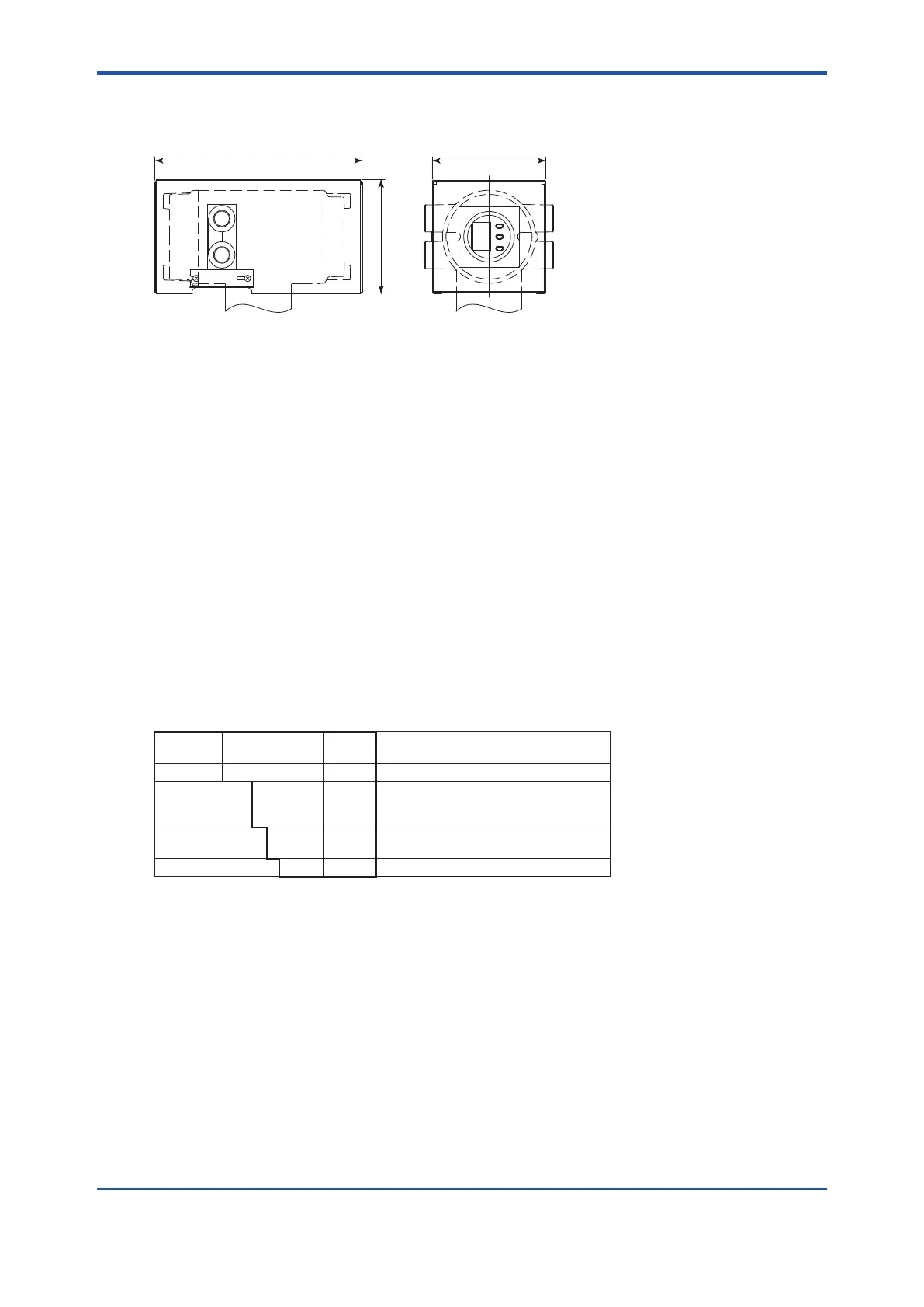

l Hood (Option code /H)
Unit: mm
274
150
150
± 4
± 3
± 3
F13.ai
Material of HOOD : Aluminum Food Weight : Approx. 800g
2.1.3 ZO21R Probe Protector
Used when sample gas ow velocity is approx. 10 m/sec or more and dust particles wears the
detector in cases such as pulverized coal boiler of uidized bed furnace (or burner) to protect the
detector from wearing by dust particles.
When probe insertion length is 2.5 m or more and horizontal installation, specify the ZO21R-L-
200-□*B to reinforce the probe.
Insertion Length: 1.05 m, 1.55 m, 2.05 m.
Flange: JIS 5K 65A FF equivalent, ANSI Class 150 4 FF (without serration)
equivalent . However, ange thickness is different.
Material: SUS316 (JIS), SUS304 (JIS) or ASTM grade 304 (Flange)
Weight: 1.05m; Approx. 6/10 kg (JIS/ANSI),
1.55 m; Approx. 9/13 kg (JIS/ANSI),
2.05 m; Approx. 12/16 kg (JIS/ANSI)
Installation: Bolts, nuts, and washers are provided for detector, probe adapter and
process-side ange.
l Model and Codes
Model Sufx code
Option
code
Description
ZO21R -L - - - - - - Probe Protector (0 to 700 °C)
Insertion
length
-100
-150
-200
- - - - - -
- - - - - -
- - - - - -
1.05 m
1.55 m
2.05 m
Flange ( *1) -J
-A
- - - - - -
- - - - - -
JIS 5K 65 FF
ANSI Class 150 4 FF
Style code *B - - - - - - Style B
*1 Thickness of ange depends on dimensions of ange.
