  <2.Specications>
2-10
IM 11M12A01-04E 11th Edition : Jul. 19, 2017-00

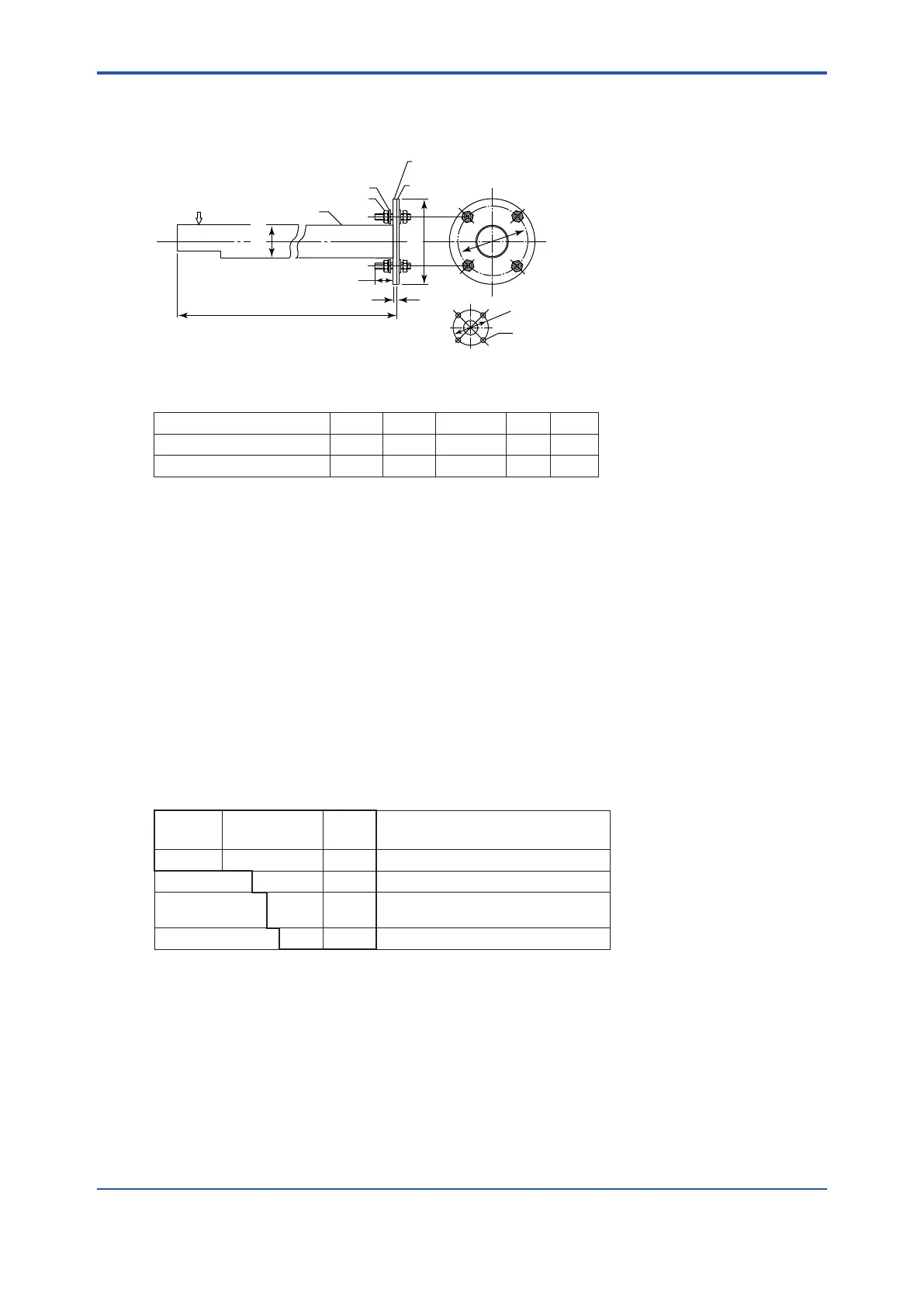

l EXTERNAL DIMENSIONS
Unit: mm
t
F2-3E.ai
D
Ø
B
C
Ø
B
Flange <1>
(with bolts, nuts and washer)
gasket (t3.0)
SUS316
Dimensions of
holes on opposing surface
ØA
Gas flow
Washer (12)
Mounting nut (M12)
l (Insert length)
l=1050,1550,2050
Ø60.5
Flange<1> A B C t D
JIS 5K 65 FF 155 130 4 - Ø15 5 40
ANSI Class 150 4 FF 228.6 190.5 8 - Ø19 12 50
2.1.4 ZH21B Dust Protector
This protector is designed to protect the probe output from dust agitation (i.e., to prevent
combustible materials from entering the probe cell where humidity measurements are made) in a
dusty environment.
Insertion length: 0.428m
Flange: JIS 5K 80 FF or ANSI Class 150 4 FF (However, ange thickness is
different)
Material: SUS 316(JIS), SUS304 (JIS) or ASTM grade 304 (ange)
Weight: Approximately 6kg (JIS), approximately 8.5kg (ANSI)
Mounting: Mounted on the probe or process ange with bolts and associated nuts
and washers.
l Model and Codes
Model Sufx code
Option
code
Description
ZH21B - - - - - - - - - - - - - - - - - - - Dust Protector (0 to 600 °C)
Insertion length -40 - - - - - - 0.428 m
Flange ( *1) -J
-A
- - - - - -
- - - - - -
JIS 5K 80 FF (*1)
ANSI Class 150 4B FF (*2)
Style code *B - - - - - - Style B
Note: The ange thickness varies.
(*1) Specify the probe ZR22G-040-h-K
(*2) Specify the probe ZR22G-040-h-C
