<6. Components>
6-1
IM 11M12A01-04E 11th Edition : Jul. 19, 2017-00
6. Components
This chapter describes the names and functions of components for the major equipment of the
EXAxt ZR Integrated type Zirconia Oxygen/Humidity Analyzer.
6.1 ZR202G Zirconia Oxygen/Humisity Analyzer
Terminal box,
Non explosion-proof
JIS C0920 / equivalent to IP44D.
Equivalent to NEMA 4X/IP66
(Achieved when the cable entry is
completely sealed with a cable
gland in the recirculation pressure
compensated version.)
Probe
this part is inserted in the furnace.
Selectable of length from 0.4, 0.7,
1.0, 1.5, 2.0, 2.5 or 3.0m.
Flange
used to mount the detector.
Selectable from JIS, ANSI,
DIN or JPI standard models.
F6.1E.ai
Bolt
Washer
Pipe support
U-shaped pipe
Metal O-ring
Dust filter mounting screw
Sensor (cell)
Contact
Screw
Probe
Calibration gas
pipe opening
Filter

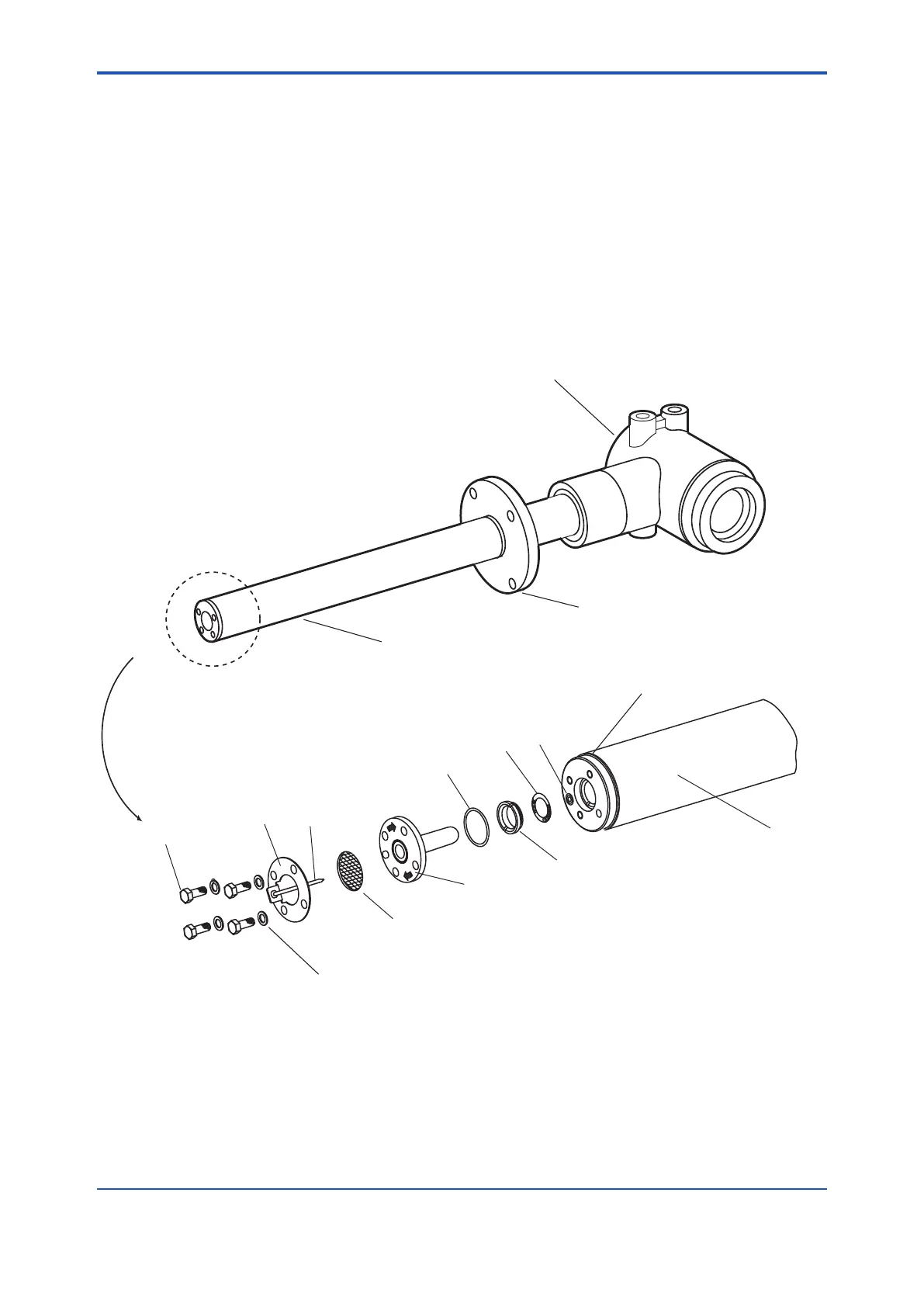

Figure 6.1 Integrated type Zirconia Oxygen/Humidity Analyzer
