<7. Startup>
7-4
IM 11M12A01-04E
7.4.2 Display Conguration
The parameter codes provided for the equipment are used to control the equipment display
panels (see below). By selecting appropriate parameter codes, you can conduct calibration and
set operation parameters. Figure 7.5 shows the conguration of display items. The parameter
codes are listed in groups of seven; which are briey described in Table 7.2.
To enter parameters, you rst need to enter the password, refer to See 7.4.3.
Touch the [ >] key and [ ENT] key at same time to revert to the main screen.
F7.4E.ai
Group G setup display
Password entry display
Group A setup display
Group B setup display
Group C setup display
Parameter code
selection display
Group D setup display
Group E setup display
Group F setup display
%

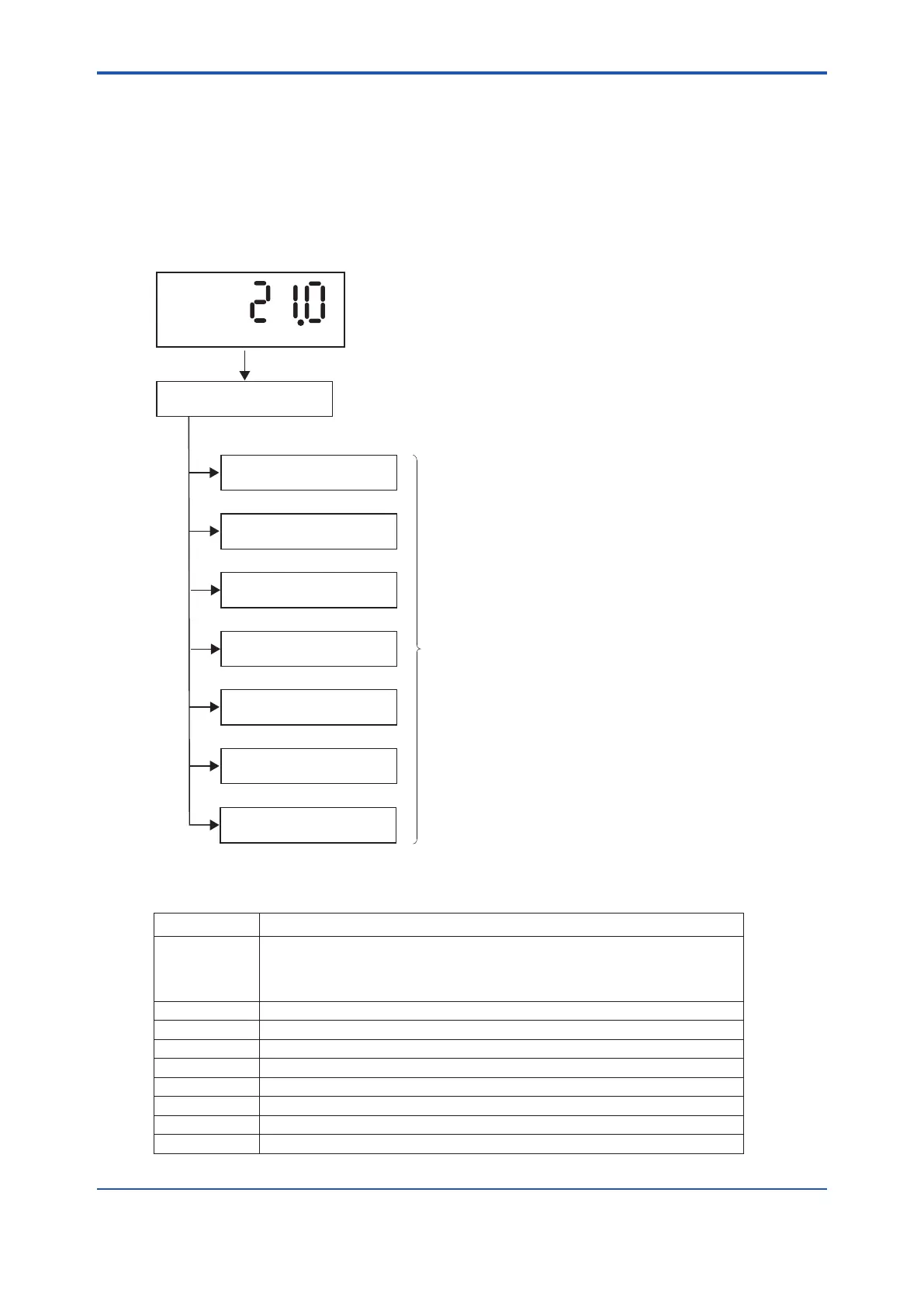

Figure 7.5 Display Conguration
Table 7.2 Display Functions
Display Function and item to be set
Basic panel Displays the oxygen concentration in normal operation, or displays the detector
heater temperature while warming up. In case of humidity analyzer, displays
the oxygen con. or moisture quantity, or mixture ratio in normal operation. If an
error or alarm arises, the corresponding error or alarm number appears.
Password entry Enters the password for the parameter code selection display.
Group A setup Displays detailed data, such as the cell voltage or temperature.
Group B setup Sets and performs calibration.
Group C setup Sets analog output.
Group D setup Sets an alarm.
Group E setup Sets the input and output contacts.
Group F setup Selects the type of equipment and sets the parameters for computation.
Group G setup Performs the current-loop or contact checks.
11th Edition : Jul. 19, 2017-00
