YOKOGAWA ZR402G User Manual

  <2.Specications>
2-22
IM 11M12A01-04E 11th Edition : Jul. 19, 2017-00
324
496
200
180
Pressure regulator
Zero gas cylinder
2B mounting pipe
( Ø60.5 )
(G7001ZC)
G7013XF/
G7014XF
F23.ai
(Note)The zero gas cylinder and the regulator valve are not included in the E7044KF (case assembly)
(158.3)
(160)
The oblique line is an opening portion.

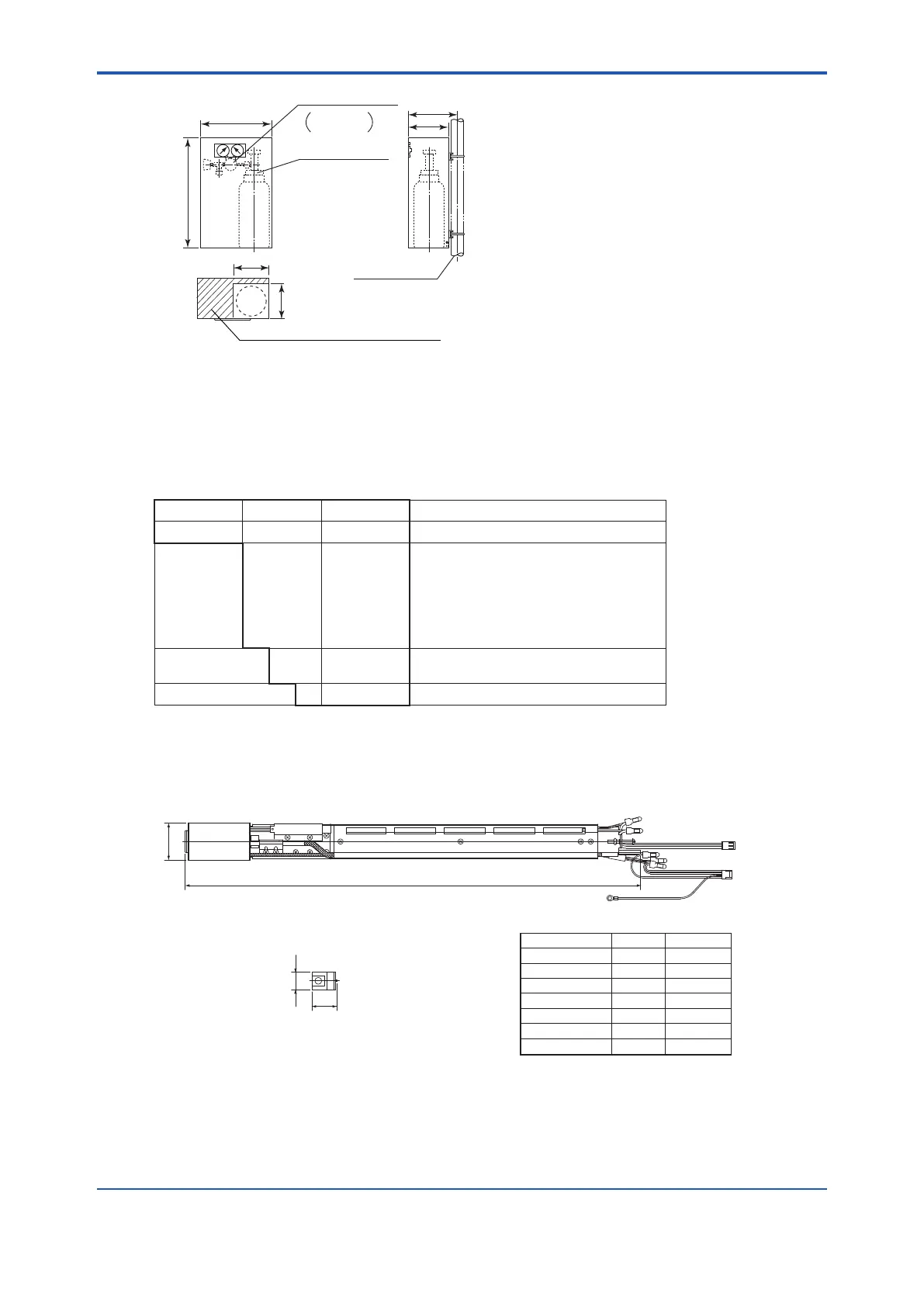

2.4.9 ZR202A Heater Assembly
l Model and Codes
Model Sufx code Option code Description
ZR202A - - - - - - - - - - - - - - - - - - - - Heater Assembly for ZR202G
Length (*1) -040
-070
-100
-150
-200
-250
-300
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
0.4 m
0.7 m
1 m
1.5 m
2 m
2.5 m
3 m
Jig for change -A
-N
- - - - - - - - - - -
- - - - - - - - - - -
with Jig
None
― -A - - - - - - - - - - - Always -A
*1 Sufx code of length should be selected as same as ZR202G installed.
(Note) The heater is made of ceramic, do not drop or subject it to pressure stress.
l External Dimensions
K9470BX
ZR202A-040
ZR202A-070
ZR202A-100
ZR202A-150
ZR202A-200
ZR202A-250
ZR202A-300
552
852
1152
1652
2152
2652
3152
Approx. 0.8
Approx. 1.2
Approx. 1.6
Approx. 2.2
Approx. 2.8
Approx. 3.4
Approx. 4.0
Jig for change
L±12
(K9470BX)
Ø 21.7
30
Unit : mm
Ø 45
L: length
L
Weight (kg)
Model & Code
F2.16.EPS
