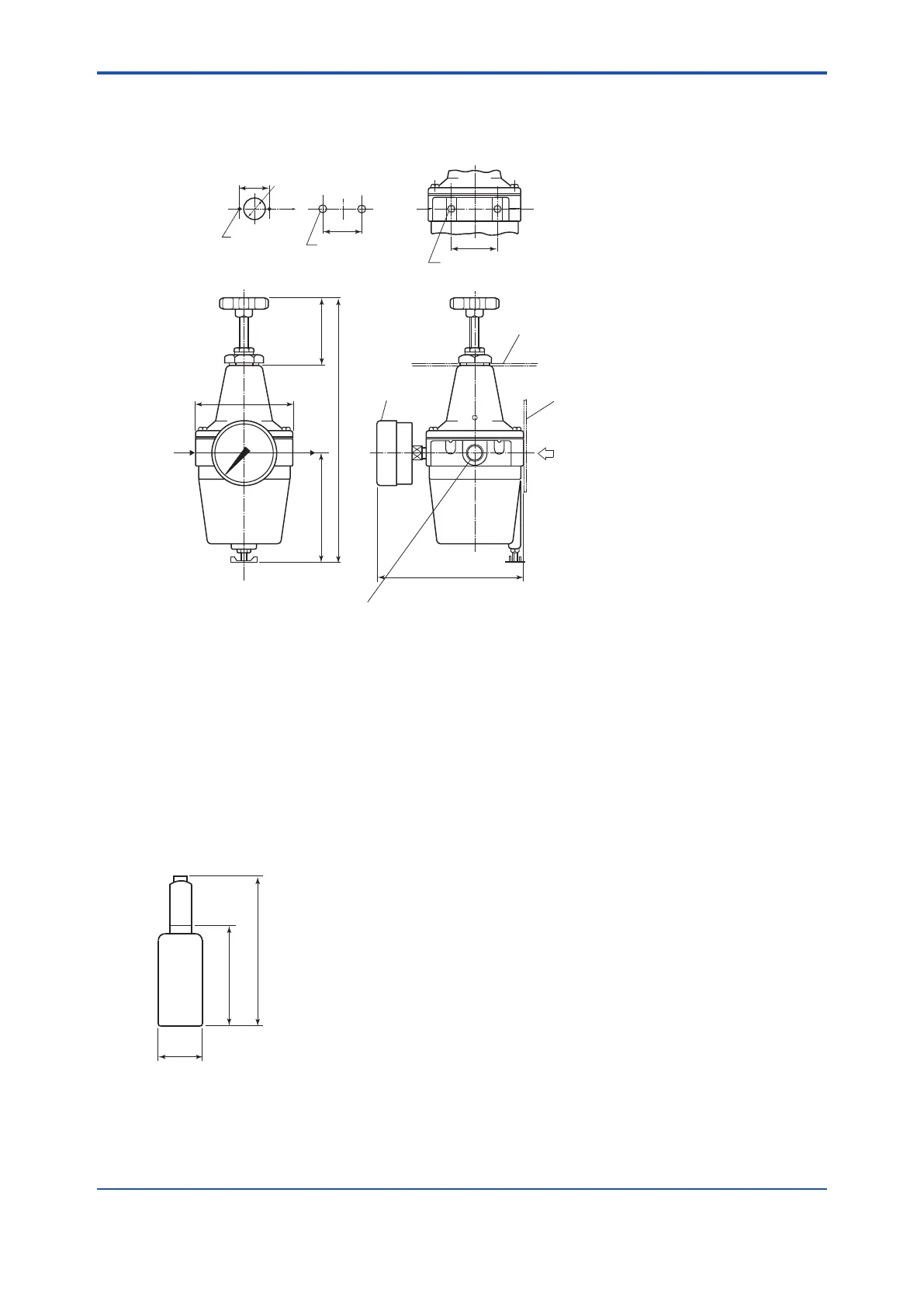

l External Dimensions
Ø74
Primary
Secondary
88
Max. 210
max. 55
Approx. 122
Secondary
pressure
gauge
Panel (Horizontal mounting)
Panel (Vertical mounting)
G7003XF, G7004XF: Rc 1/4
K9473XK, K9473XG: 1/4NPT connector
A
22
ø15
2-ø2.2
+0.5
-0
2-ø6.5
40
2-M6 screw depth 8
40
Horizontal
mounting
Vertical
mounting
Panel cut dimensions
View A
F22_1.ai
Unit : mm
2.4.6 Zero Gas Cylinder (part no. G7001ZC)
The gas from this cylinder is used as the calibration zero gas and detector purge gas.
l Standard Specications
Capacity: 3.4 l
Filled pressure: 9.8 to 12 MPa G
Composition: 0.95 to 1.0 vol%O
2
(N
2
-balanced)
(Note) Export of such high pressure lled gas cylinder to most countries is prohibited or restricted.
Unit : mm
Weight : Approx. 6 kg
F32.ai
485
325
ø140
