Adding ABB drives to PROFINET
1.
F
ollow
steps
1 and 2
of
Adding ABB drives to PROFIBUS DP li
ne
.
2.
From the hardware catalog pane, drag
and drop the required
PROFINET
ABB Drive to the PLC.

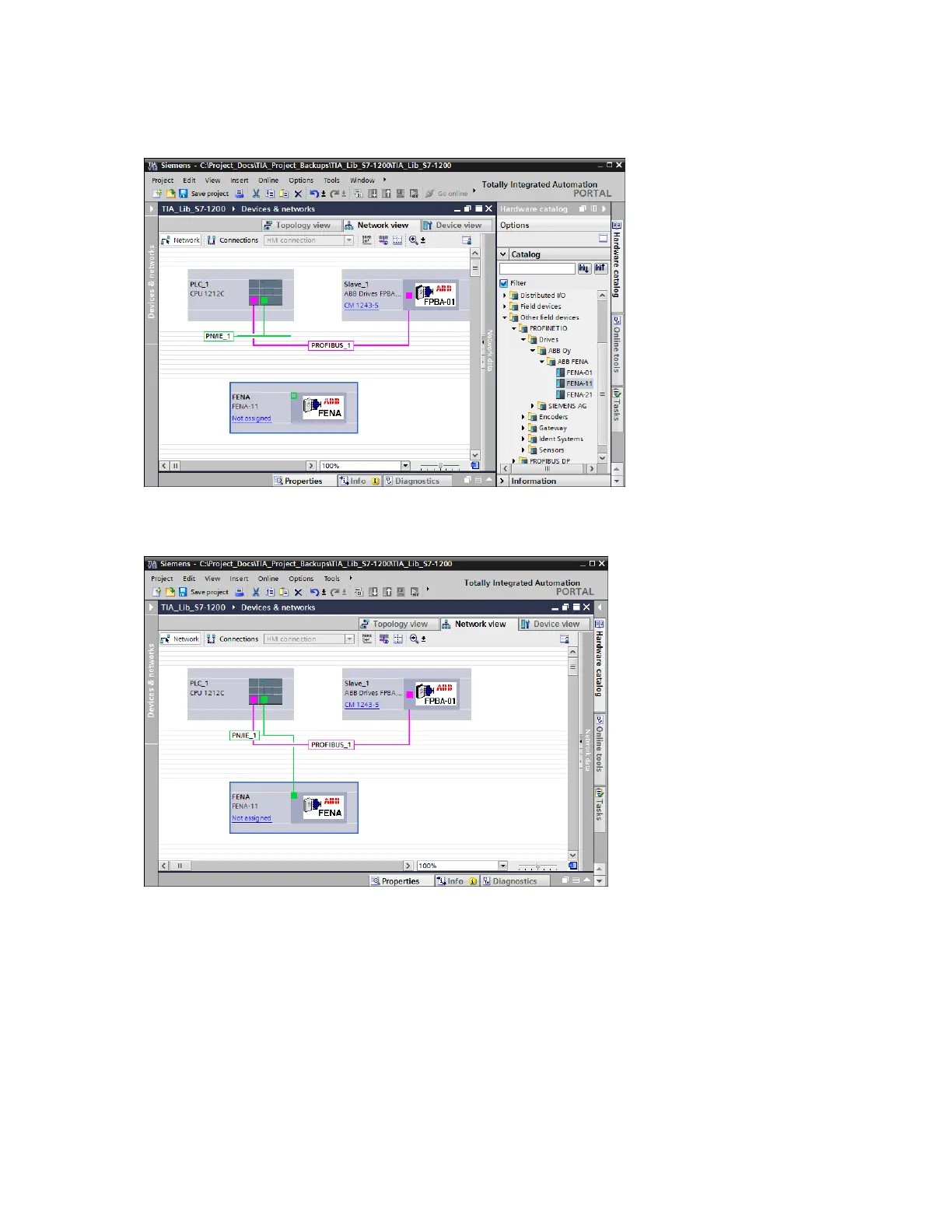

Figure 125 FENA drive
3.
In the ABB drive, connect PLC to the PROFINET interface.
Figure 126 Connecting PLC and FENA drive
111
113
Table of Contents
Default Chapter
4
Table of Contents
4
List of Related Manuals
8
Introduction
8
Contents of this Chapter
8
Compatibility
8
Target Audience
9
Safety Instructions
9
Purpose of the Manual
9
Limitations
9
Contents of the Manual
10
Related Documents
10
SIMATIC Manager/Tia Portal with ABB Drives and PROFIBUS Module Setup
10
Cybersecurity Disclaimer
11
Disclaimer
11
Drive Configuration
12
Contents of this Chapter
12
Overview
12
Configuring ACS355 Drives
13
Starting ACS355 Drives for PROFIBUS DP
13
ACS355 Minimum Required Parameter Settings for PROFIBUS DP
13
Starting ACS355 Drives for PROFINET
14
ACS355 Minimum Required Parameter Settings for PROFINET
15
ACS355 more Parameters Read from Drive to PLC (Optional)
15
ACS355 more Parameters Written from PLC to Drive (Optional)
16
Configuring ACS380 Drives
16
Starting ACS380 Drives for PROFIBUS DP
16
ACS380 Minimum Required Parameter Settings PROFIBUS DS
17
Starting ACS380 Drives for PROFINET
18
ACS380 Minimum Required Parameter Settings for PROFINET
18
ACS380 more Parameters Read from Drive to PLC (Optional)
19
ACS380 more Parameters Written from PLC to Drive (Optional)
19
Configuring ACS550 Drives
20
Starting ACS550 Drives for PROFIBUS DP
20
ACS550 Minimum Required Parameter Settings for PROFIBUS DP
20
Starting ACS550 Drives for PROFINET
21
ACS550 Minimum Required Parameter Settings for PROFINET
21
ACS550 more Actual Values or Parameters to be Read from Drive to PLC (Optional)
22
ACS550 more Parameters to be Written from PLC to Drive (Optional)
22
Configuring ACS580 Drives
23
Starting ACS580 Drives for PROFIBUS DP
23
ACS580 Minimum Required Parameter Settings for PROFIBUS DP
24
Starting ACS580 Drives for PROFINET
25
ACS580 Minimum Required Parameter Settings for PROFINET
26
ACS580 more Parameters Read from Drive to PLC (Optional)
27
ACS580 more Parameters Written from PLC to Drive (Optional)
27
Configuring ACS800 Drives
27
Starting ACS800 Drives for PROFIBUS DP
27
ACS800 Minimum Required Parameter Settings for PROFIBUS DP
28
Starting ACS800 Drives for PROFINET
29
ACS800 Minimum Required Parameter Settings for PROFINET
30
ACS800 more Parameters Read from Drive to PLC (Optional)
31
ACS800 more Parameters Written from PLC to Drive (Optional)
31
Configuring ACS850 Drives
31
Starting ACS850 Drives for PROFIBUS DP
31
ACS850 Minimum Required Parameter Settings for PROFIBUS DP
32
Starting ACS850 Drives for PROFINET
32
ACS850 Minimum Required Parameter Settings for PROFINET
33
ACS850 more Parameters Read from Drive to PLC
34
ACS850 more Parameters Written from PLC to Drive
34
Configuring ACS880 Drives
34
Starting ACS880 Drives for PROFIBUS DP
34
ACS880 Minimum Required Parameter Settings for PROFIBUS DP
35
Starting ACS880 Drives for PROFINET
36
ACS880 Minimum Required Parameter Settings for PROFINET
37
ACS880 more Parameters Read from Drive to PLC (Optional)
37
ACS880 more Parameters Written from PLC to Drive (Optional)
38
Configuring ACSM1 Drives
38
Starting ACSM1 Drives for PROFIBUS DP
38
ACSM1 Minimum Required Parameter Settings for PROFIBUS DP
39
Starting ACSM1 Drives for PROFINET
40
ACSM1 Minimum Required Parameter Settings for PROFINET
41
ACSM1 more Parameters Read from Drive to PLC (Optional)
42
ACSM1 more Parameters Written from PLC to Drive (Optional)
42
SIMATIC Manager
43
Contents of this Chapter
43
Setting PG/PC Interface
44
Hardware Configuration
45
Starting a New Project
45
Adding Rack and CPU to the Hardware
46
Installing GSD Files for ABB Drives
49
Adding Drives to PROFIBUS DP Line
49
Adding Drives to PROFINET
52
Downloading Hardware Configuration
54
PLC Libraries for S7-300
56
Copying ABB_DRIVES_LIB Blocks to the Project
56
Symbol Editor
57
Fb500 Abb_Drive_Control_Fb
58
Block Variables and Data Types
60
Setting the Drive in Standby Mode
61
Setting the Drive in Run Mode
62
Downloading a Program and Setting PLC in Run Mode
63
VAT Table
64
FC501 ACS_DRIVE_PZD (Optional)
65
Block Variable and Data Types for FC501
66
Scalable Variables and Data Types
68
FC500 ACS_DRIVE_PARA (Optional)
69
Block Variables and Data Types for FC500
69
TIA Portal
71
Contents of this Chapter
71
Configuring PC IP Address
71
Configuring S7-300 PLC
73
Installing GSD and GSDML File for S7-300 PLC
79
PLC Libraries for S7-300
81
Adding ABB Drives to PROFIBUS DP Line
81
Adding ABB Drives to PROFINET
85
Downloading Configuration to PLC
89
Copying ABB Drive Libraries to S7-300 Project
90
Adding PLC Tags to S7-300
93
Fb500 Abb_Drive_Control_Fb
94
Adding Watch and Force Tables
96
Fc501 Acs_Drive_Pzd
97
Fc500 Acs_Drive_Para
99
Error Codes for FB500 and FC500
102
Configuring S7-1200 and S7-1500 PLC
105
Installing GSD File for S7-1200 PLC
108
PLC Libraries for S7-1200
109
Adding ABB Drives to PROFIBUS DP Line
109
Adding ABB Drives to PROFINET
112
Downloading Configuration to S7-1200 PLC
116
Copying ABB Drive Libraries to S7-1200 Project
118
Adding PLC Tags to S7-1200
122
Fb500 Abb_Drive_Control_Fb
123
Block Variables and Data Types for FB500
125
Fb501 Acs_Drive_Para
129
Block Variables and Data Types for FB501
130
Fb502 Acs_Drive_Pzd
135
Block Variables and Data Types for FB502
136
Further Information
138
