ABB ACSM1 Series User Manual

Copying ABB drive libraries to S7-300 project
Prerequisites: Check for ABB Drive libraries available in the user PC.

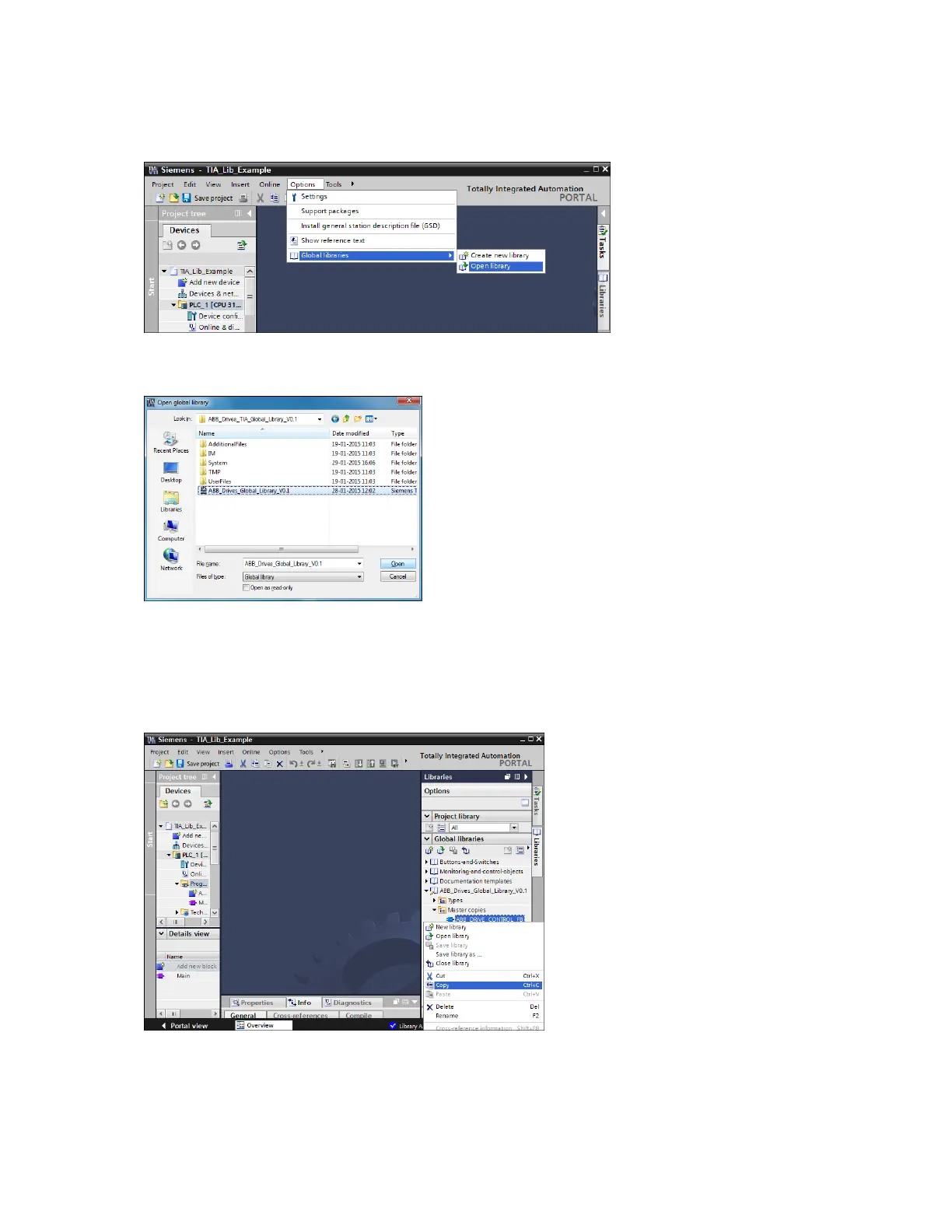

1. In the main menu of TIA portal, navigate to Options → Global libraries → Open library.
Figure 84 Global library
2. Select the required ABB drive library in the file system and click OK.
Figure 85 File system
After selecting ABB drive library, on the right side of the TIA portal window, the application
displays Libraries pane with the selected library.
3. Expand ABB_Drives_Global_Library → Master copies and right-click
ABB_DRIVE_CONTROL_FB and then click Copy.
Figure 86 Libraries
