49
Installing GSD files for ABB drives
GSD files for ABB drives can be found in www.abb.com/drives or from this package. Install the GSD files
(Options → Install GSD File). Find the catalog where the GSD files are placed by clicking the Browse
button, highlight the GSD file(s) and click Install. When the files are installed, click Close.
The following GSD files are available from the ABB website.
 ABB0959.gsd for FPBA-01 PROFIBUS DP-V0
 ABB10959.gsd for FPBA-01 PROFIBUS DP-V1 (used in this example)
 ABB_0812.gsd for RPBA-01 PROFIBUS DP-V0
 ABB10812.gsd for RPBA-01 PROFIBUS DP-V1
 GSDML-V2 31-ABB-FENA-20150120.xml for PROFINET
 GSDML-V2 31-ABB-FENA-20140901.xml for PROFINET.

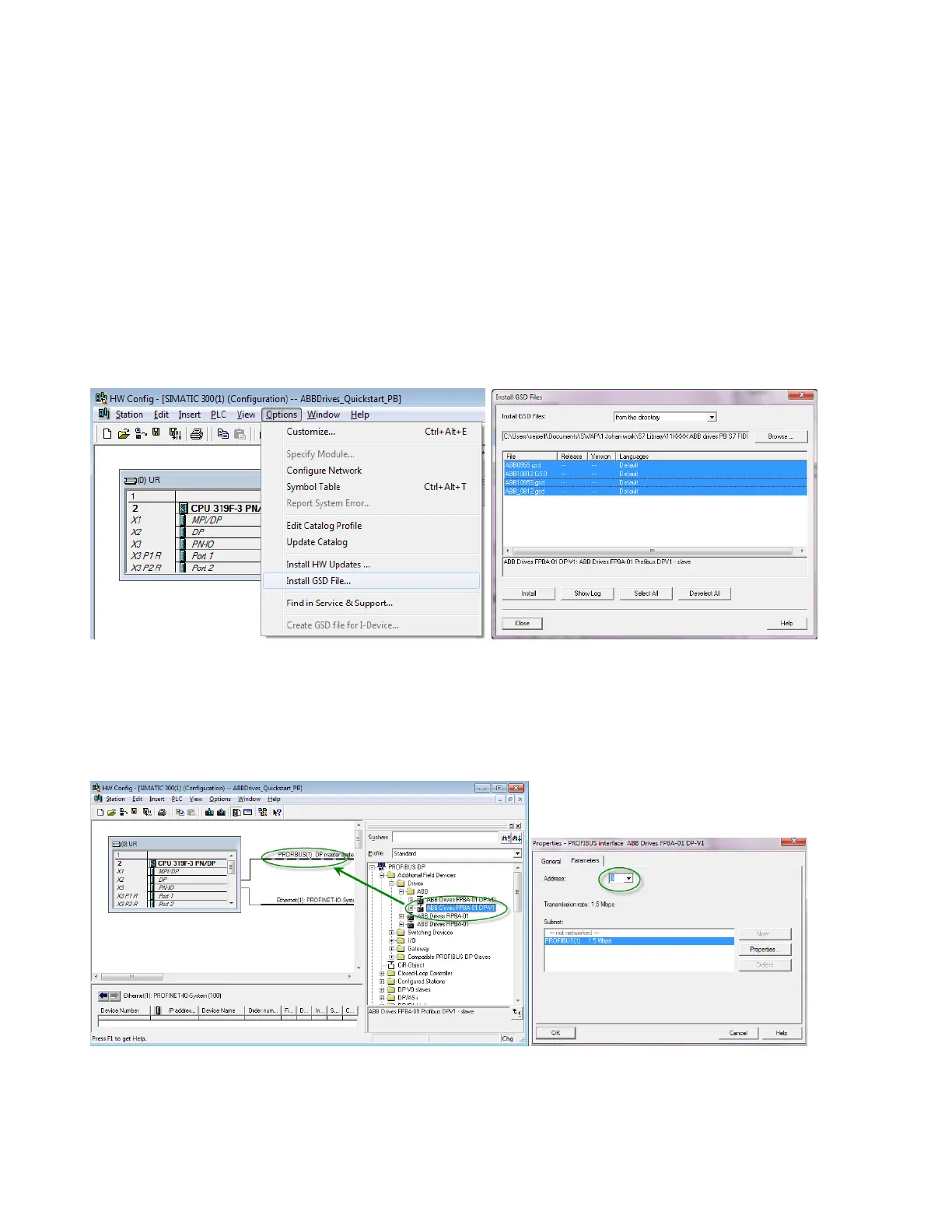

Figure 11 Installing GSD file
Adding drives to PROFIBUS DP line
After the GSD file installation, new drive PROFIBUS DP modules appear in the hardware library. Drag
and drop according to your actual fieldbus module type and desired DP mode (V0 or V1) to the
PROFIBUS DP line. Set the PROFIBUS DP node address for the fieldbus module and click OK.
Figure 12 PROFIBUS DP
