Downloading configuration to
S7
-
1200
PLC
1.
Click
to download the configuration to
PLC.

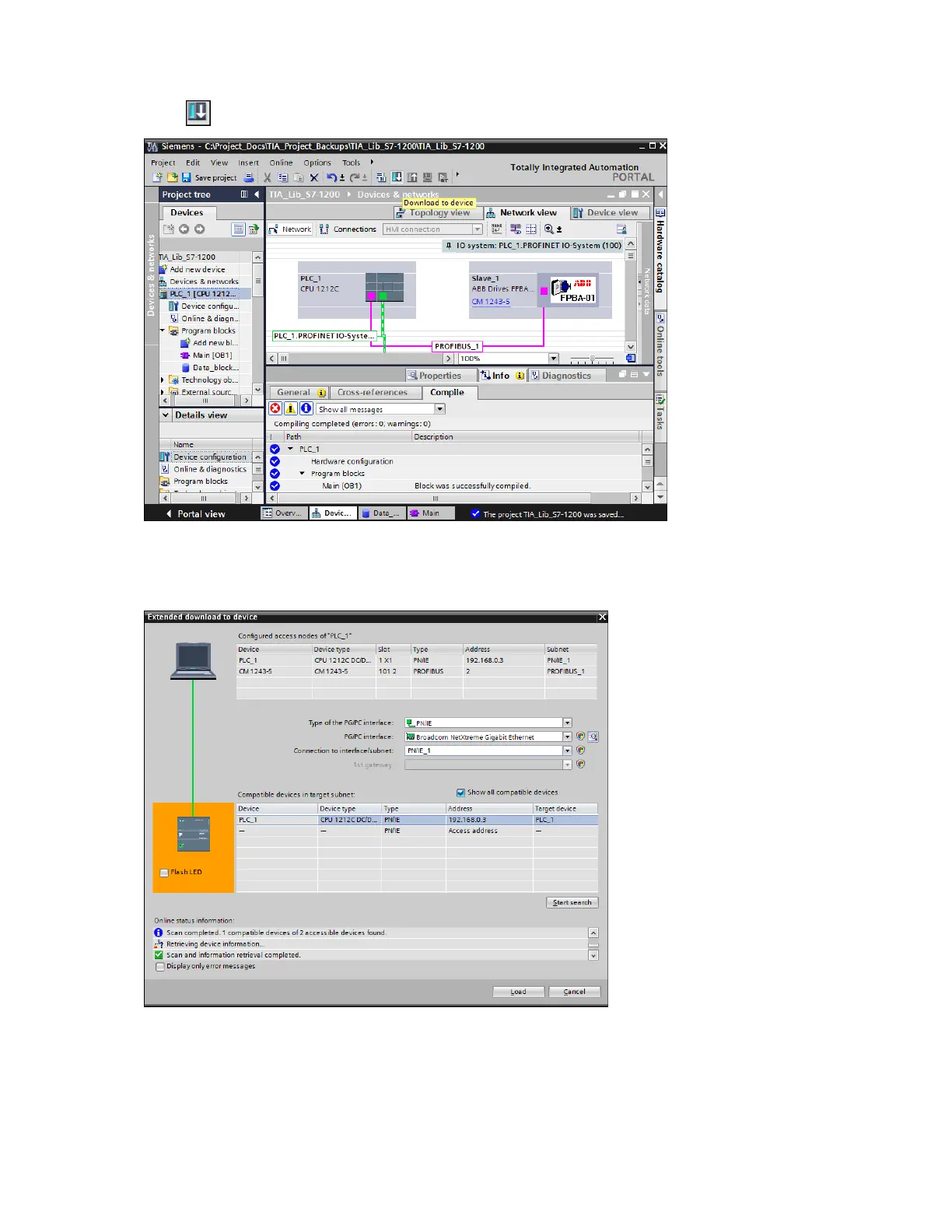

Figure 132 Download
2.
From the Extended download to device wi
ndow, select
PG/PC interface
and
Connection to
subnet
from the drop-down list and click
Load
.
Figure 133 Load
115
