• Divisions
You can change the number of divisions of grid lines so that they serve as a guide to laying out objects.
Note
• You can input between 1 and 10.
• You can change the numbers by clicking either ▲ button or ▼ button.
• Grid Color
Select the grid line color.
• Print Object Frames
You can print the object border.
Note
•
If you do not want to print the object border, deselect the Print Object Frames check box.
• Object Frame Style
You can select the object frame style for printing.
The following settings are available for the object frame style.
Setting Details
Solid Line You can print the solid line as the frame style.
Dotted Line You can print the dotted line as the frame style.
Dashed Line You can print the dashed line as the frame style.
•
Auto Arrange Spacing
Change the object-to-object spacing to be applied in the operation of laying out objects automatically.
Note
•
You can input between 0.0 and 100.0(mm) (between 0.00 and 3.94(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.

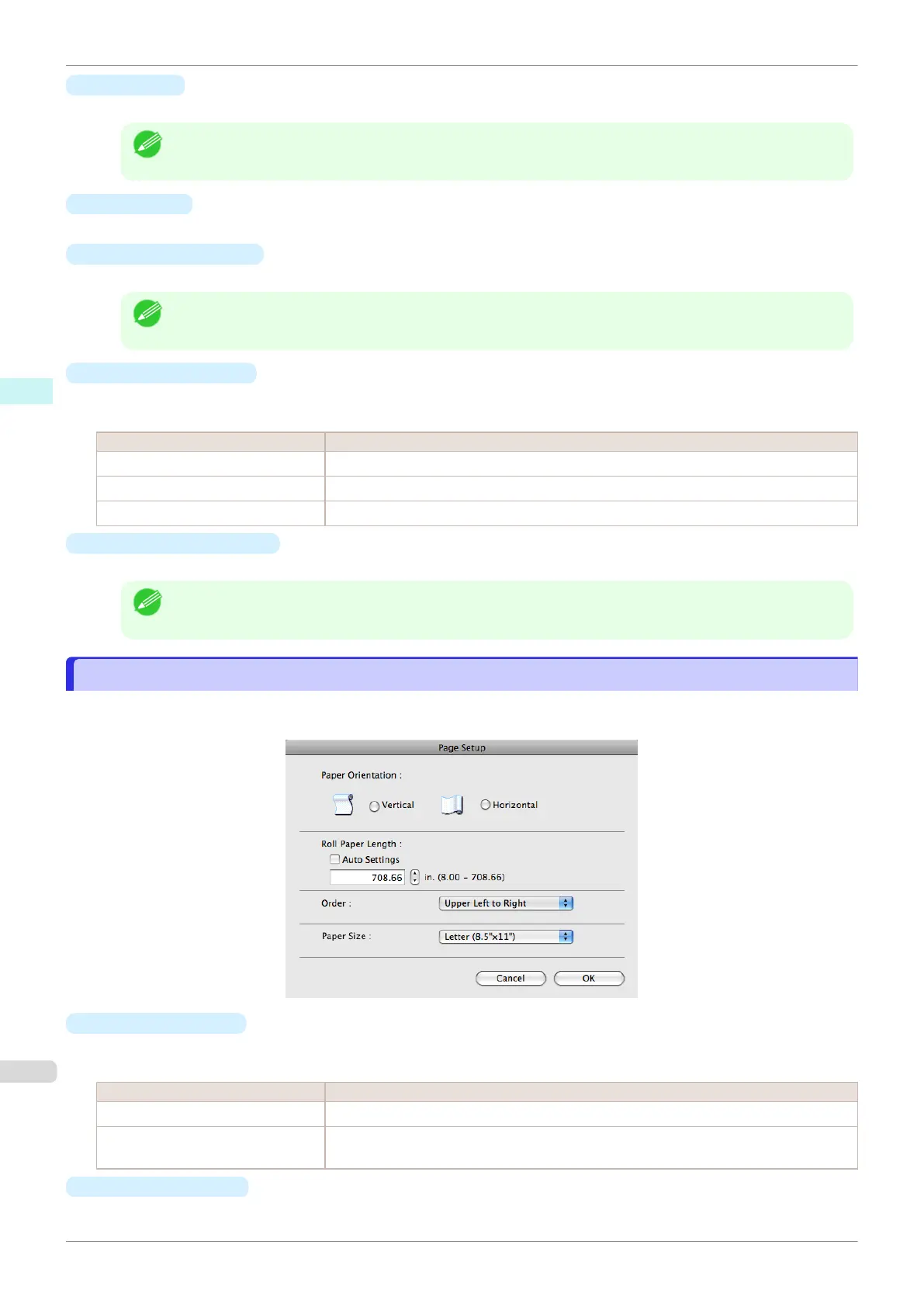

Page Setup Dialog Box
Page Setup Dialog Box
This dialog box appears when you select Page Setup from the File menu.This dialog box provides selections for
setting the media size, orientation and other important features.
•
Paper Orientation
This selects the paper orientation.
The following settings are available for orientation.
Setting Details
Vertical Prints the image and text created with the application software in the orientation as it is.
Horizontal Prints the image and text by rotating sideways 90 degrees from the orientation as speci-
fied in the application.
• Roll Paper Length
Set the length of one page to print on roll paper.
Page Setup Dialog Box
iPF770
User's Guide
Mac OS Software Free Layout
300

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
