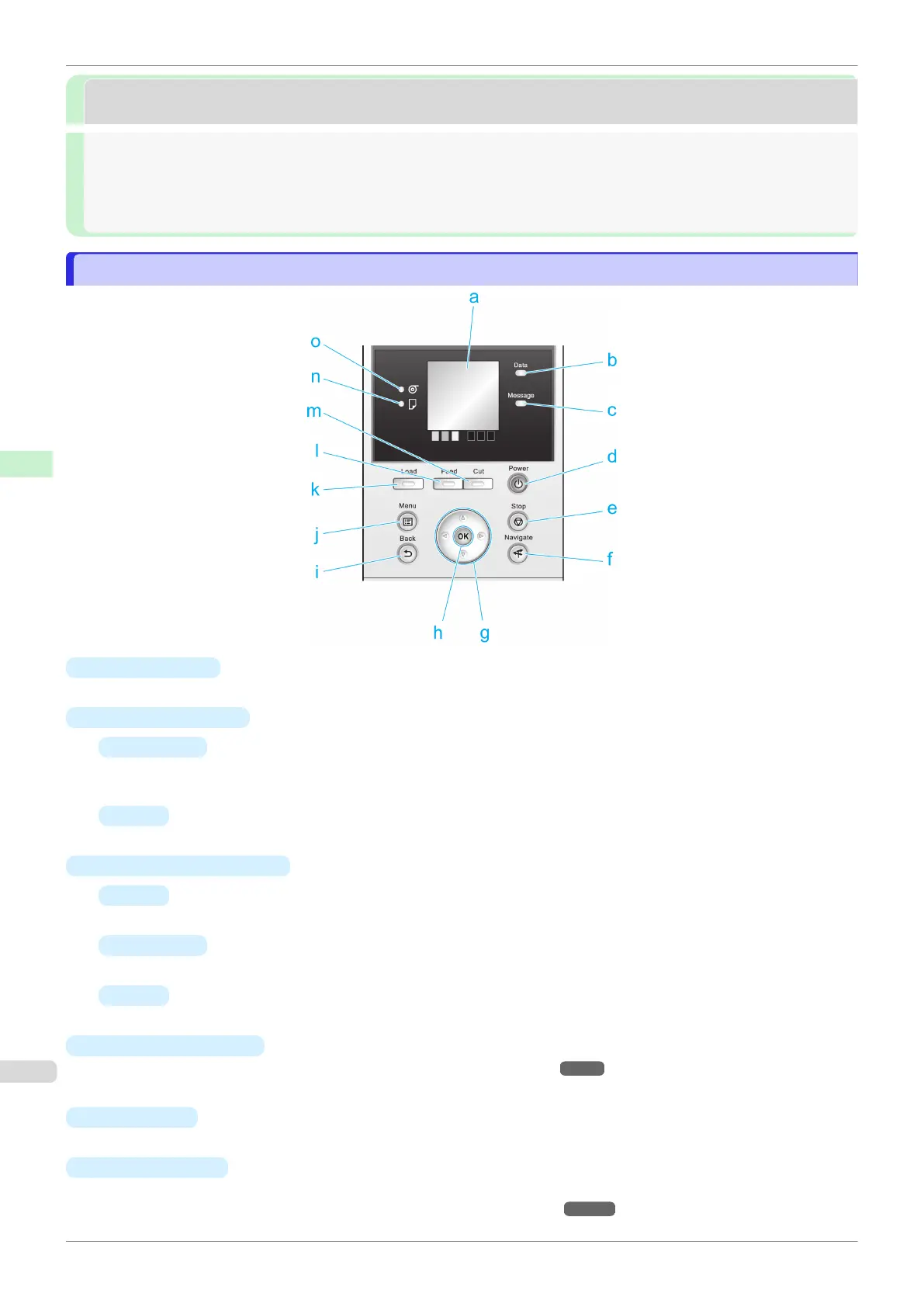

Control Panel
Control Panel
a
Display Screen
Shows printer menus, as well as the printer status and messages.
b Data Lamp (green)
• Flashing
During printing, the Data lamp flashes when the printer is receiving or processing print jobs. Otherwise,
this lamp flashes when the print job is paused or the printer is updating the firmware.
• Off
There are no active print jobs when the Data lamp is off.
c
Message Lamp (orange)
•
On
A warning message is displayed.
•
Flashing
An error message is displayed.
• Off
The printer is off or is operating normally.
d
Power
button (green)
Turns the printer on and off. (See "Turning the Printer On and Off.") ➔ P.15
The Power button is lit when the printer is on or in Sleep mode.
e Stop
button
Cancels print jobs in progress and ends the ink drying period.
f Navigate
button
Enables you to check instructions for loading and removing paper or replacing ink tanks or printheads, as well
as other operations. (See "How to View Instructions with Navigate.") ➔ P.404
Control Panel
iPF770
User's Guide
Control Panel Operations and Display Screen
398

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
