Canon imagePROGRAF iPF770 User Manual

Printer parts
Printer parts
Front .............................................................................................................................................................. 432
Side ................................................................................................................................................................434
Top Cover (Inside) ........................................................................................................................................... 435
Roll Cover (Inside) ........................................................................................................................................... 436
Carriage ......................................................................................................................................................... 436
Ink Tank Cover (Inside) .................................................................................................................................... 437
Stand ............................................................................................................................................................. 438
Control Panel .................................................................................................................................................. 398

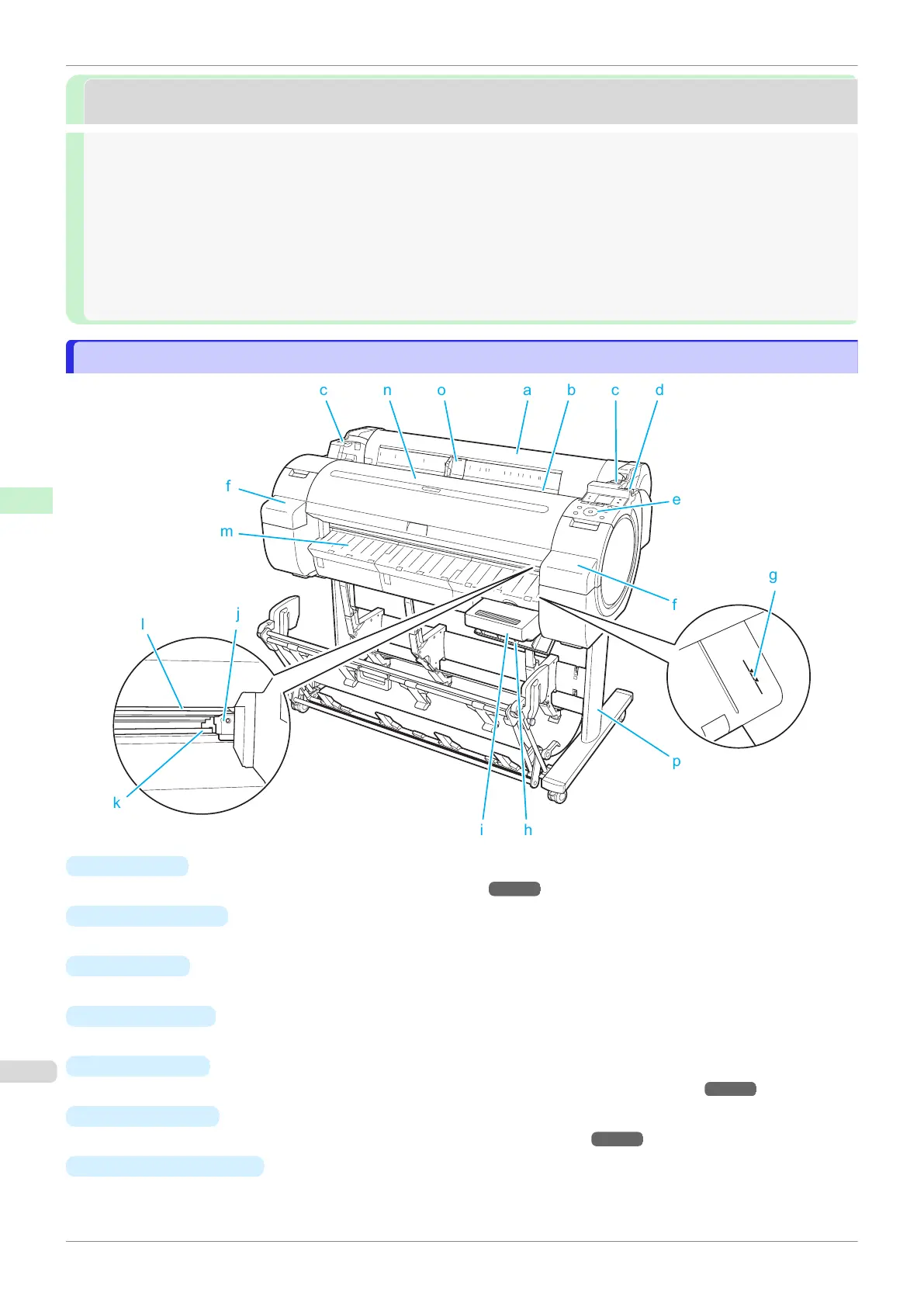

Front
Front
p
on
m
l
k
j
ih
g
f
f
e
dccba
a
Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).") ➔P.436
b Paper Feed Slot
When loading paper, insert it here.
c
Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") ➔P.398
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") ➔P.437
g Paper Alignment Line
An orange line for alignment of paper.
Front
iPF770
User's Guide
Printer Parts Printer parts
432

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
