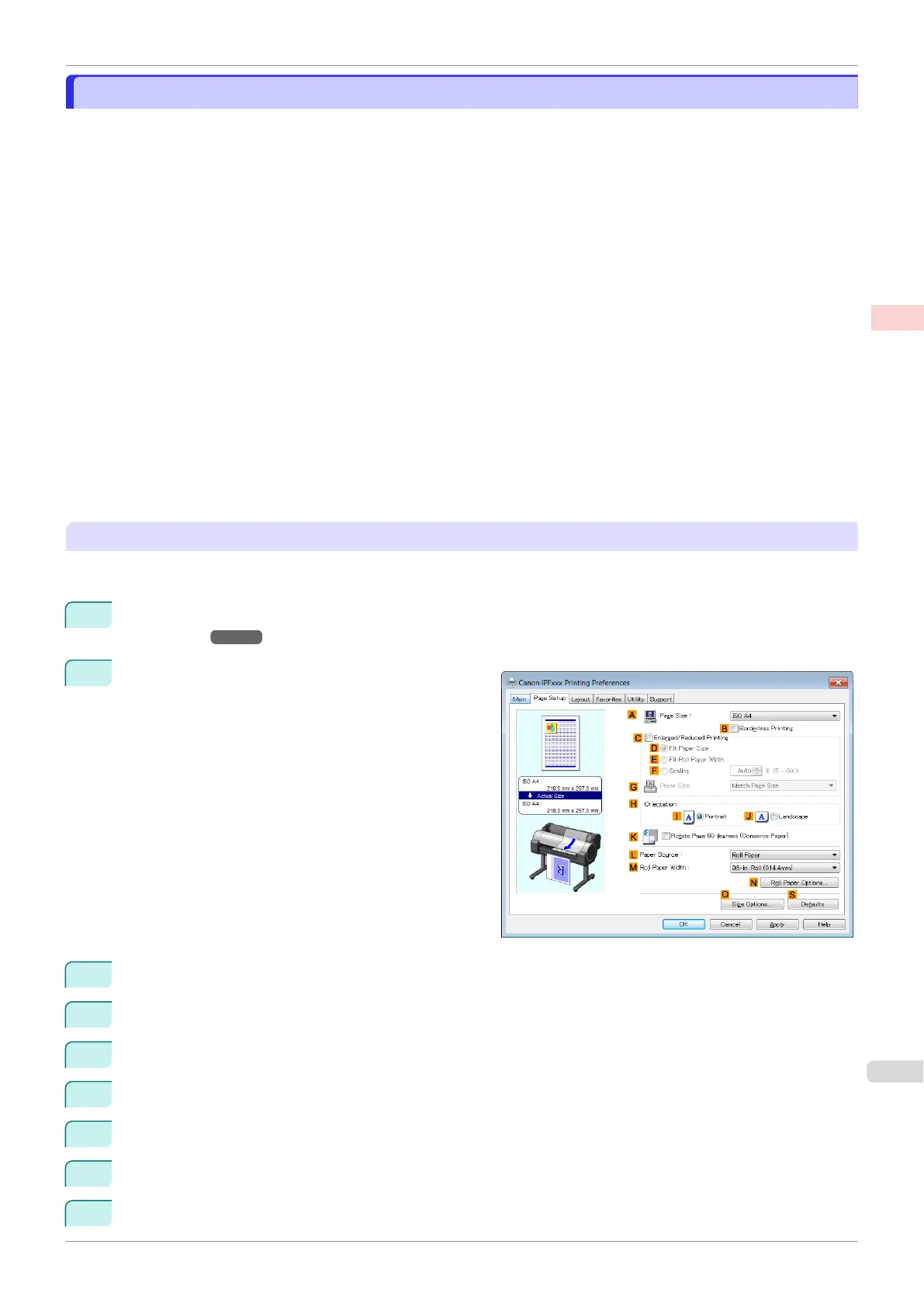

Printing Vertical or Horizontal Banners (Large-Format Printing; Windows)
Printing Vertical or Horizontal Banners (Large-Format Printing; Windows)
By automatic enlargement of a document created with an application software by the printer driver, you can print
maximum 18.0 m vertical or horizontal banners.
However, you may not be able to print 18.0 m due to restrictions in the settable document size according to the
application software.
This topic describes how to print a banner about five times as long as the roll width based on the following exam-
ple.
• Document: A horizontal banner created in Microsoft Word
• Page size: Non-standard (100×500 mm [3.9×19.7 in])
• Paper: Roll
• Paper type: Plain Paper
• Roll paper width: 16 in (406.4 mm)
The print procedure is as follows.
1. Register a Custom Paper Size in the printer driver.
Call a non-standard paper size registered in the printer driver with Custom Paper Size.
Once you register Custom Paper Size, you then can select it repeatedly from the paper size list.
Custom Paper Size can be set up to 18.0 m.
2. In the application, create an original in the size you registered.
3. Print the banner, using the settings that correspond to banners.
Registering a Custom Paper Size
This example describes how to register a paper size that is horizontally elongated and suitable for banners in either
horizontal or vertical format.
1 Display the printer driver dialog box. (See "Accessing the Printer Driver Dialog Box from the Operating Sys-
tem Menu .") ➔P.147
2
Click the Page Setup tab to display the Page Setup
sheet.
3 Select and click a roll paper in the L Paper Source list.
4 Click O Size Options to display the Paper Size Options dialog box.
5 Enter a desired paper name in Custom Paper Size Name. My Horizontal Banner is used in this example.
6 In Units, click mm.
7 Under Paper Size, enter 100 in Width and 500 in Height.
8 Click Add to add the paper size of My Horizontal Banner.
9 Click OK to close the Paper Size Options dialog box.
iPF770 Printing Vertical or Horizontal Banners (Large-Format Printing; Windows)
User's Guide
Enhanced Printing Options Printing banners or at other non-standard sizes
87

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
