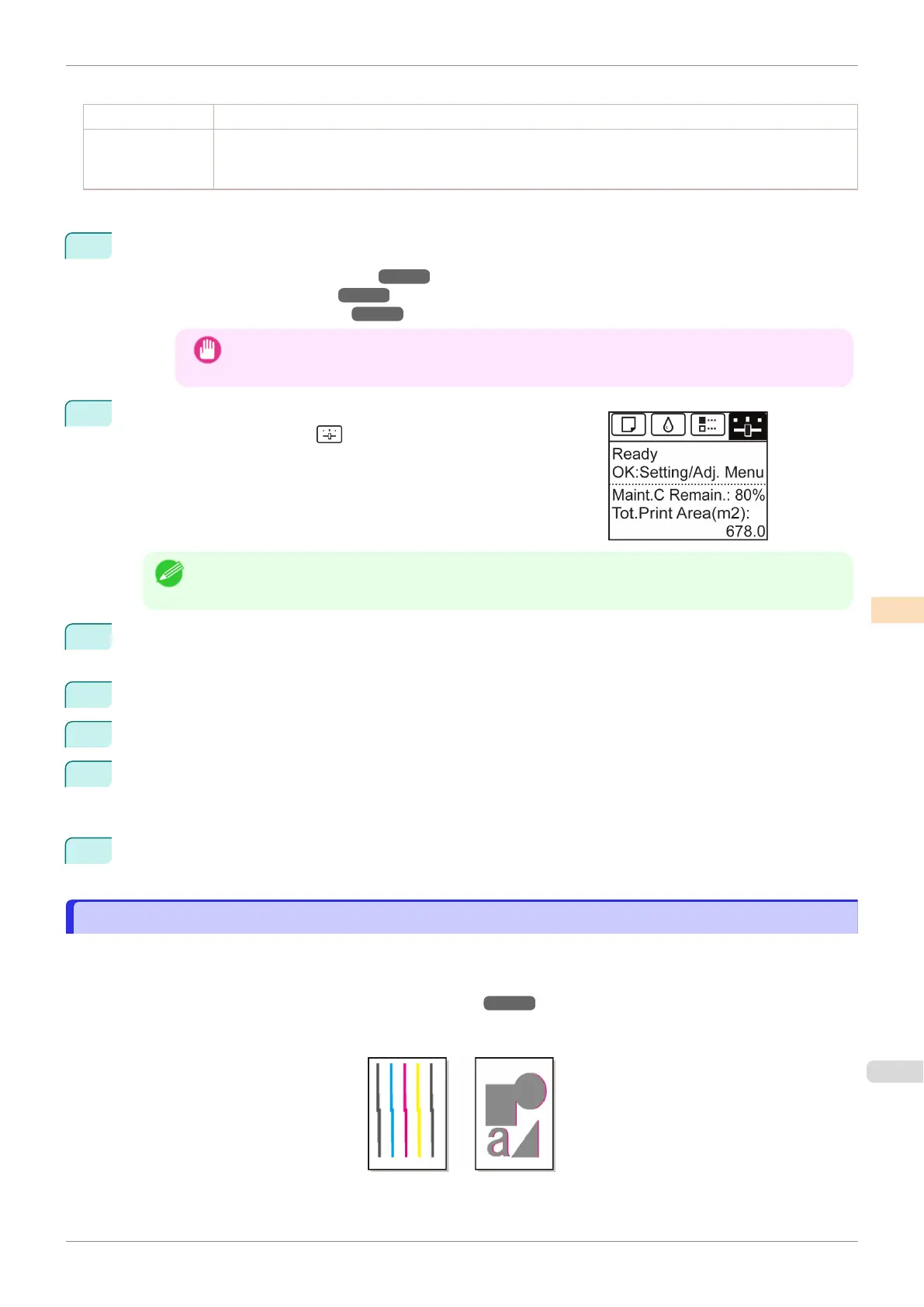

Paper to Prepare
When Using Rolls An unused roll at least 10 inches wide
When Using Sheets Auto(Standard) : One sheet of unused paper of at least A4/Letter size
Auto(Advanced) : Five sheets of unused paper of at least A4/Letter size (or one sheet when using A2 or
larger)
Perform adjustment as follows.
1 Load the paper.
• Attaching the Roll Holder to Rolls ➔P.320
• Loading Rolls in the Printer ➔P.322
• Loading Sheets in the Printer ➔P.340
Important
•
Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to
select the Settings/Adj. tab ( ).
Note
•
If the Tab Selection screen is not displayed, press the Menu button.
3
Press the
OK button.
The Set./Adj. Menu is displayed.
4 Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
5 Press ▲ or ▼ to select Head Posi. Adj., and then press the OK button.
6 Press ▲ or ▼ to select Auto(Standard) or Auto(Advanced), and then press the OK button.
A test pattern is printed for adjustment.
Adjustment is now finished if you have printed on a roll or a sheet of A2 size or larger.
7 If you are printing on sheets smaller than A2 size for Auto(Advanced), a confirmation message is dis-
played requesting you to continue printing. Press the OK button and follow the instructions displayed.
Manual Adjustment to Straighten Lines and Colors
Manual Adjustment to Straighten Lines and Colors
If printed vertical lines are warped or colors are out of alignment, execute Head Posi. Adj. to adjust the Printhead
alignment.
Normally, execute Standard.
(See "Automatic Adjustment to Straighten Lines and Colors.")
➔P.480
However, when printing on special paper, or if printing is not improved after Standard, try Manual.
Manual adjustment requires you to examine the printed test pattern and enter an adjustment value.
iPF770 Manual Adjustment to Straighten Lines and Colors
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
481

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
