Clarion NX505E User Manual

NX505E 11
English

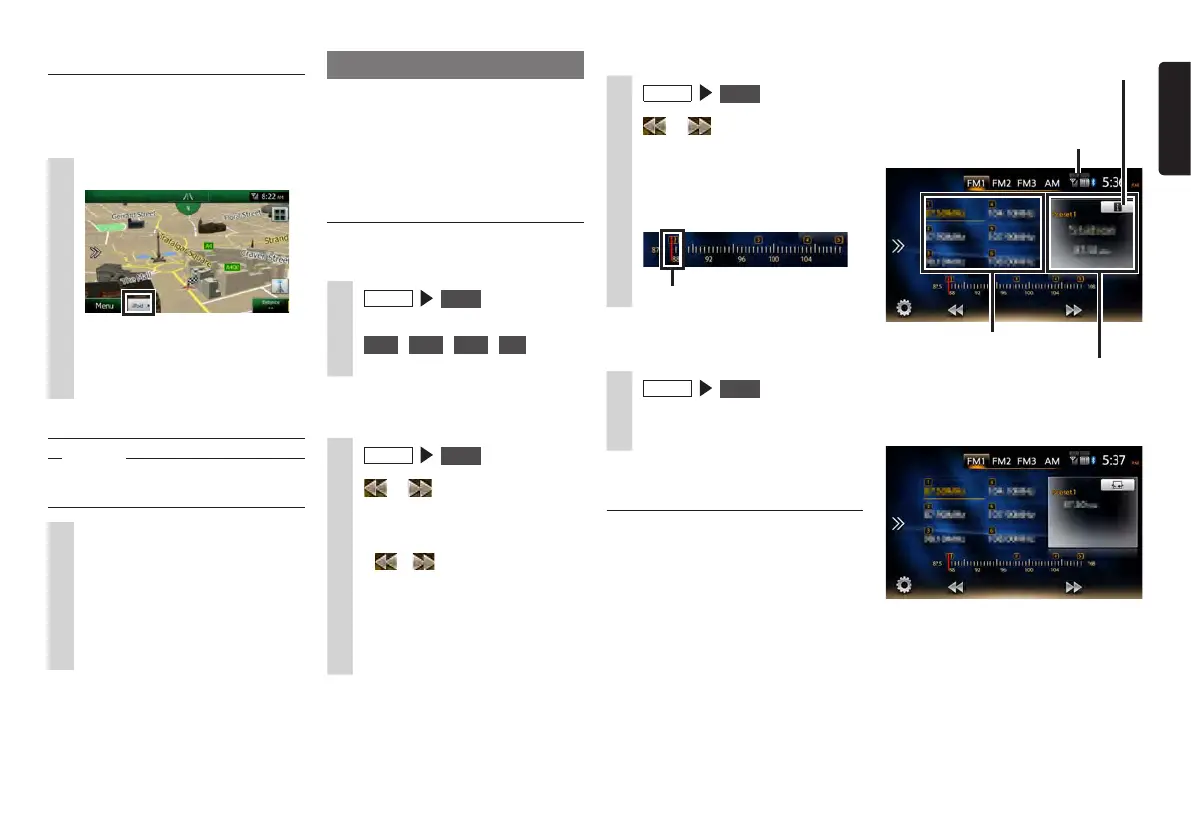

Displaying the AV control bar
The AV control bar for quickly accessing
audio-visual functions can be displayed.
Display content differs according to the
currently selected audio-visual type.
1
AV control bar display key
The AV control bar of the currently
selected audio-visual is displayed. To
hide the AV control bar, touch the bar
display key.
Turning off the screen
Notice
•Whilethescreenisoff,thevoiceguidance
ofthenavigationdoesnotwork.
1
Press the rotary volume knob.
The screen turns off.
Press the rotary volume knob again to
display the screen as before.
When the audio screen is previously
displayed, the audio main menu
screen of the selected source is
displayed.
MEMO:
•Thescreentemporarilyturnsonwhenyou
receiveacallorusethecamera.
Listening to the radio
You can enjoy both AM and FM radio on
the unit. The RDS radio has a function to
automatically switch to the radio if another
source is selected to receive emergency
information, traffic information, or a program
specified by the user.
Receiving radio broadcasts
❏
Switching between AM and FM
radio
1
MENU Tuner
Radio broadcasts are received.
2
FM1
,
FM2
,
FM3
,
AM
Switches to the band you touch.
❏
Automatically selecting a
station
1
MENU Tuner
2
or
(Long press within 1.5 seconds)
When a receivable station is detected,
that station is automatically received.
If
or is long pressed for at
least 1.5 seconds, the frequency
switches continuously while the
key is touched. When you release
your finger from the key, receivable
broadcast stations are automatically
detected and received.
❏
Manually selecting the station
1
MENU Tuner
2
or
Each touch switches the frequency.
The frequency can also be switched
by touching the frequency setting
area or sliding the frequency setting
bar.
Frequency setting bar
❏
Selecting stations from the list
Select a registered station from the list.
1
MENU Tuner
2
Select the desired station.
The selected station is received.
Using the radio preset channel
list
❏
What is a “preset channel”?
You can register (preset) the frequency of
a station that can be received in the area
you are driving. You can receive any desired
station at the touch of a button without
having to adjust the frequency.
There are four preset channel lists: FM1,
FM2, FM3, and AM. Up to six stations can
be registered in each list.
There are two ways of registering to preset
channel lists, manual and automatic.
Preset channel list (Station list)
The preset channel number, name of
broadcasting station, and frequency are
displayed. Only the frequency is displayed for
AM radio.
Lights when the PTY or TA interrupt settings
are on.

P.12
Appears on audio screens other than the
RDS radio screen.
Touch it during an FM broadcast to display a
description of the broadcast that is currently
being received.
Broadcast details screen
Description of the content currently being
received is displayed.

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
