Clarion NX505E User Manual

60 NX505E
English

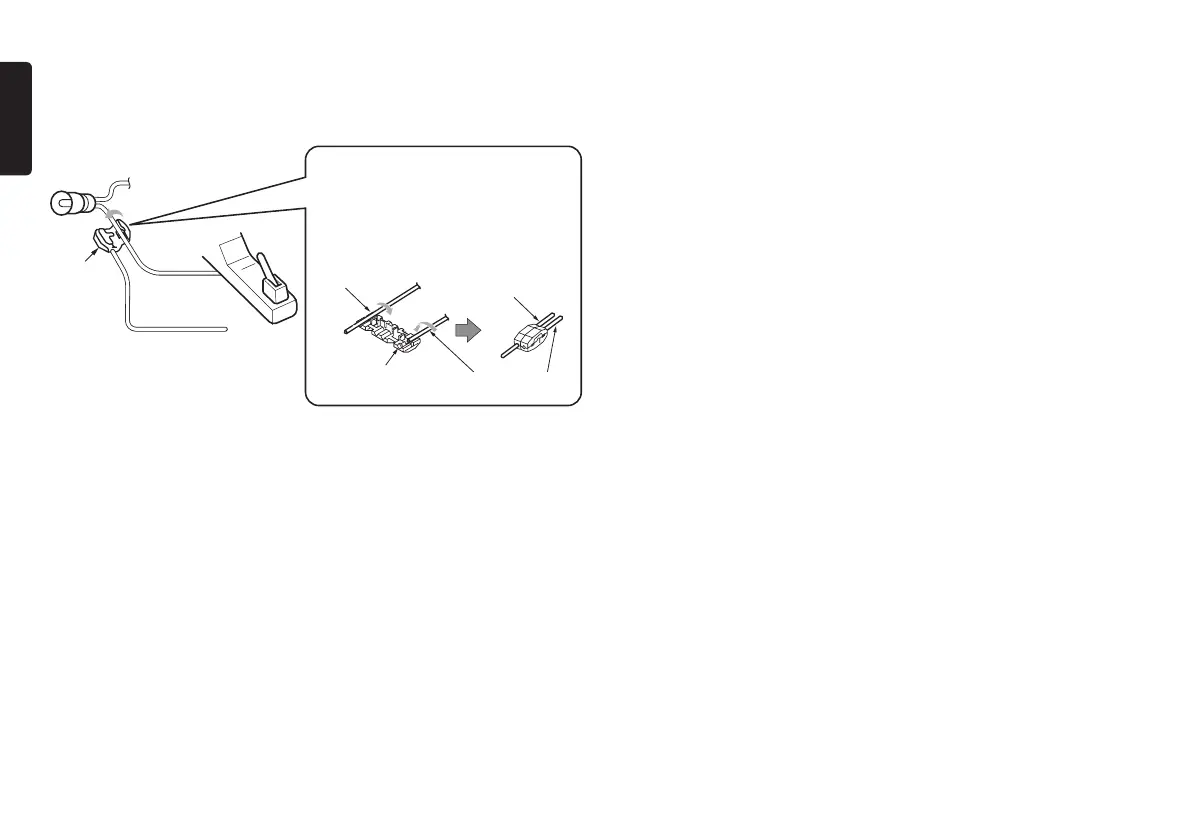

Connecting the parking brake lead
Connect the lead to parking brake lamp ground in the meter panel.
●
Connecting the parking brake lead to lamp ground allows you to watch video images
when the parking brake is engaged.
●
When the parking brake lead is not connected, the monitor will not display video images.
Parking brake lamp
Electro-tap
(sold
separately)
Parking brake lead
(Grass-green)
Parking brake
signal lead
Parking brake
+
lead to battery
●
How to attach the electro-tap
1. Place the Parking brake lead at the stopper,
and fold it back in the direction of the arrow.
2. Pass the Parking brake signal lead through,
and fold it back in the direction of the arrow.
Parking brake
signal lead
Stopper
Parking brake
signal lead
Parking brake lead
(Grass-green)
❏
Connecting the Accessories
Connection to the Rear Vision Camera for vehicle
The Rear Vision Camera for vehicle can be connected to optional Rear Vision Camera input
cable (CCA-644) with RCA pin cable. For detailed information, refer to the instruction sheet
or manual for the Rear Vision Camera.
●
Be sure to connect the reverse gear lead to the vehicle’s relevant terminal.
●
Connect the Rear Vision Camera to the RCA pin cable; if not, the screen turns black while
the gearshift lever is in the reverse gear position.

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
