Clarion NX505E User Manual

56 NX505E
English
5. INSTALLING THE MAIN UNIT
This unit is designed for fixed installation in
the dashboard.
●
When installing the main unit in NISSAN
vehicles, use the parts attached to
the unit and follow the instructions in
Figure 3.
When installing the main unit in TOYOTA
vehicles, use the parts attached to the
vehicle and follow the instructions in
Figure 4.
●
Wire as shown in Section 10.

P.59
●
Reassemble and secure the unit in the
dashboard and set the face panel and
center panel.
❏

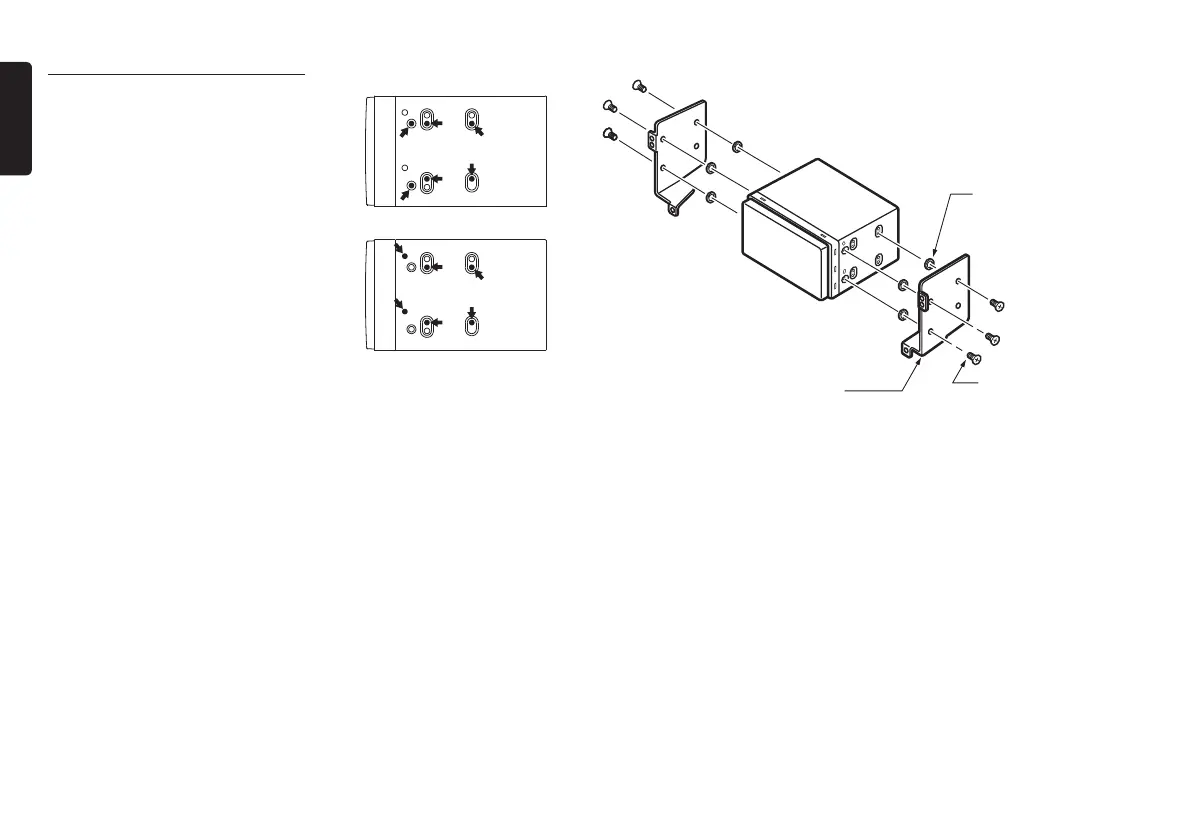

Installing the Main Unit in a NISSAN Vehicle
Figure 3
Mounting bracket
(1 pair for the left and right sides)
6-Spacer (thickness: 1 mm)
6-Flat head screw
(M5 x 8)
(attached to the main unit)
Main Unit
Mounting Screw Holes (Side View of
the Main Unit)
For NISSAN vehicle
For TOYOTA vehicle

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
