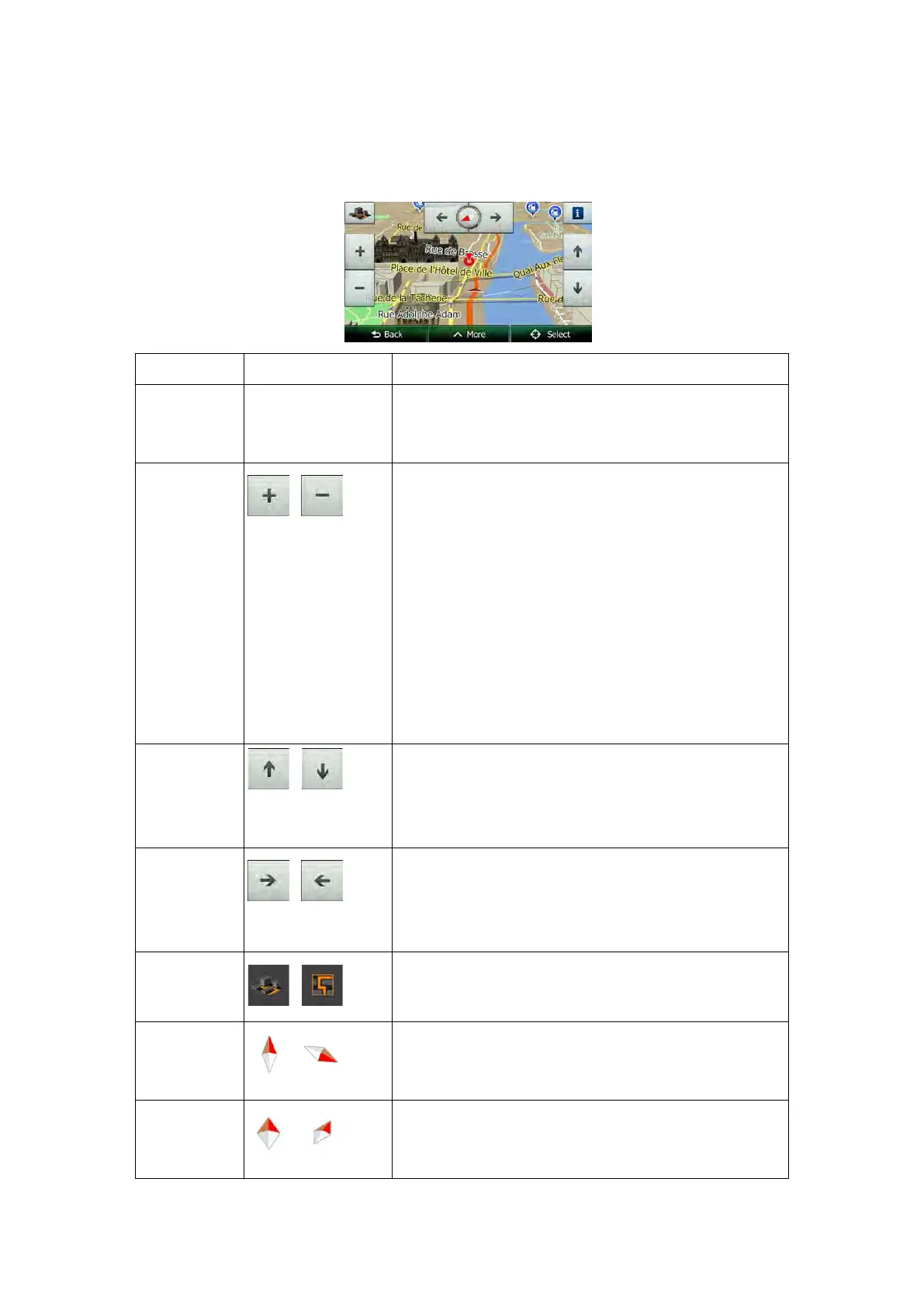

2.3.4 Manipulating the map
Tap the map anywhere to browse it during navigation. The map stops following the current
position (the Vehimarker, a blue arrow by default, is not locked in a fix position on the screen
any more) and control buttons appear to help you modify the map view.
Action
Button(s)
Description
Moving the
map with
drag&drop
No buttons
You ca
n move the map in any direction: tap and hold
the map, and move your finger towards the direction you
want to move the map.
Zooming in
and out
,
Changes how much of the map is displayed on the
screen.
Clarion Mobile Map uses high-
quality vector maps that
let you examine the map at various zoom levels, always
with optimised con
tent. It always displays street names
and other text with the same font size, never upside-
down, and you only see the streets and objects that you
need.
Map scaling has a limit in 3D map view mode. If you
zoom out further, the map switches to 2D view mode.
Tap the button once to modify the view in large steps, or
tap and hold the button to modify it continuously and
smoothly.
Tilting up and
down
,
Changes the vertical view angle of the map in 3D mode.
Tap the button once to modify the view in large steps, or
tap and hold the button to modify it continuously and
smoothly.
Rotating left
and right
,
Changes the horizontal view angle of the map.
Tap the button once to modify the view in large steps, or
tap and hold the button to modify it continuously and
smoothly.
2D or 3D view
,
Tap this button to switch between the 3D perspective
and 2D top-down map view modes.
Compass in
2D map view
mode
,
The direction of the compass shows North. Tap the
button to switch to North-
up view, and then tap again to
rotate the map in the previous direction.
Compass in
3D map view
mode
,
The direction of the compass
shows North. Tap the
button to switch to North-
up view, and then tap again to
rotate the map in the previous direction.
20 NX505E English

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
