Clarion NX505E User Manual

NX505E 35
English
●
Do not heat or disassemble the battery,
or put it in fire or water.
Doing so might cause the battery to
burst or leak, or cause fire or injury.
●
Do not carry the battery around or store
it together with metal ballpoint pens,
necklaces, coins, or other metal objects.
Doing so might cause the battery to
burst or leak, or cause fire or injury.
●
Dispose of used batteries according
to predetermined methods and at
predetermined locations.
●
Do not leave the battery provided with
the remote control within the reach of
small children or infants.
They might swallow them by mistake. If
you think that a small child or infant has
swallowed a battery, immediately consult
a physician.
Replacing the battery
Notice
•Whenusingtheremotecontrolforthefirst
time,insertthebatteryprovidedwiththe
remotecontrol.
1
Open the battery compartment
cover and remove the battery.

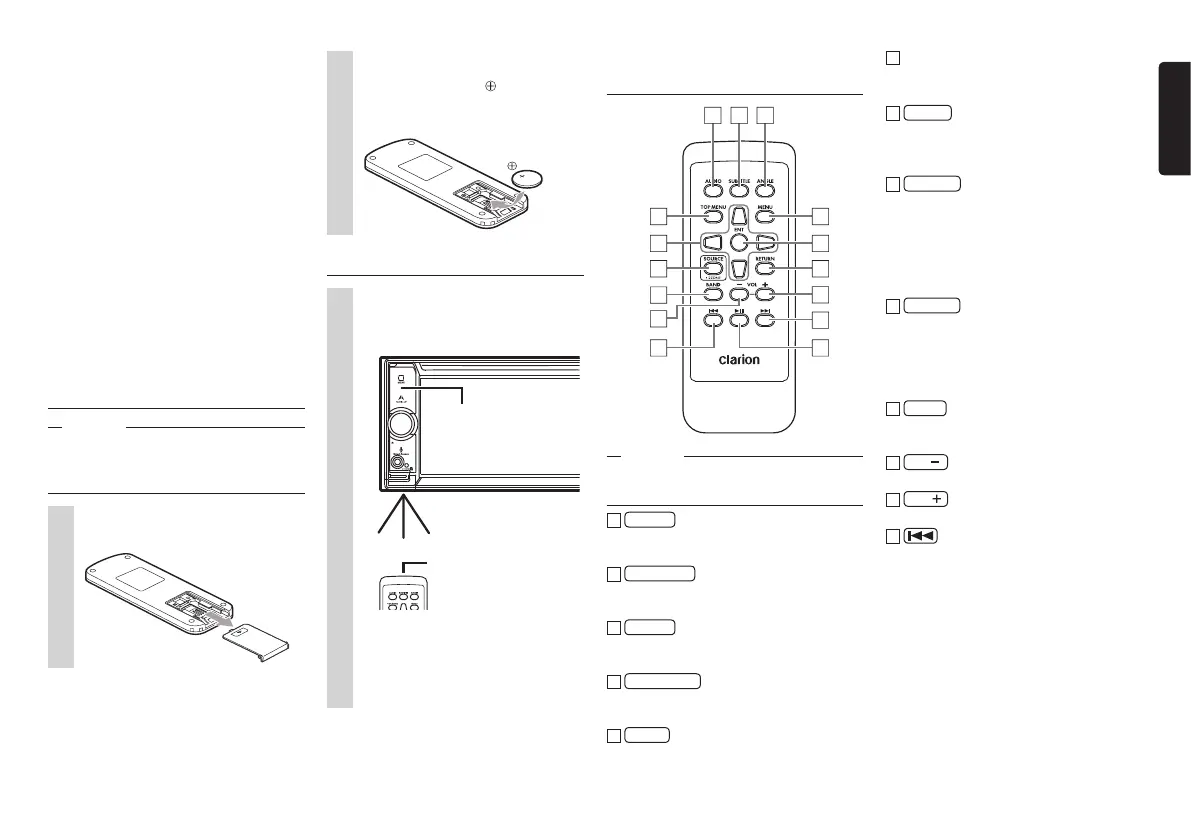

Names and functions of
remote control parts
4
9
12
15
1413
8
10
11
1 2 3
5
6
7
Notice
•DuringtelephonecallsandwhenAUXis
selected,thesecannotbeoperated.
1
AUDIO
button
This switches the audio language of
DVD video and DivX.
2
SUB TITLE
button
This switches the subtitle language of
DVD video and DivX.
3
ANGLE
button
This switches the multi angle setting of
DVD video.
4
TOP MENU
button
This displays the top menu screen of
DVD video.
5
MENU
button
This displays the top menu screen of
DVD video.
2
Insert the new lithium cell
(CR2032) with the
mark
face up, and close the battery
compartment cover.
How to use the remote control
1
Operate the remote control with
it pointed at the remote control
sensor on the unit.
Remote control sensor
Remote control emitter
30 degrees 30 degrees
Operate the remote control with its
emitter pointed at the remote control
sensor within a range 30 degrees
above, below, left and right of the
sensor.
6
direction button
This selects items in the DVD video
menu screen and top menu screen.
7
ENTER
button
This determines items selected in the
DVD video menu screen and top menu
screen.
8
SOURCE
button
This switches the source of the audio
mode.
When the unit is turned off, this turns the
power on.
Keeping this button hold down starts up
the voice recognition application.
9
RETURN
button
This returns you to the immediately
previous screen in the DVD video menu
screen and top menu screen.
✽
The 2ZONE function cannot be used
with the unit.
10
BAND
button
This switches the tuner FM and AM
bands.
11
VOL
button
This lowers the volume.
12
VOL
button
This raises the volume.
13
button
When radio is playing:
Preset channel decrement
Long press time:
Channel seek decrement
When other audio sources are selected
✽
1
:
Track/chapter decrement, track/chapter
rewind
