Clarion NX505E User Manual

NX505E 37
English

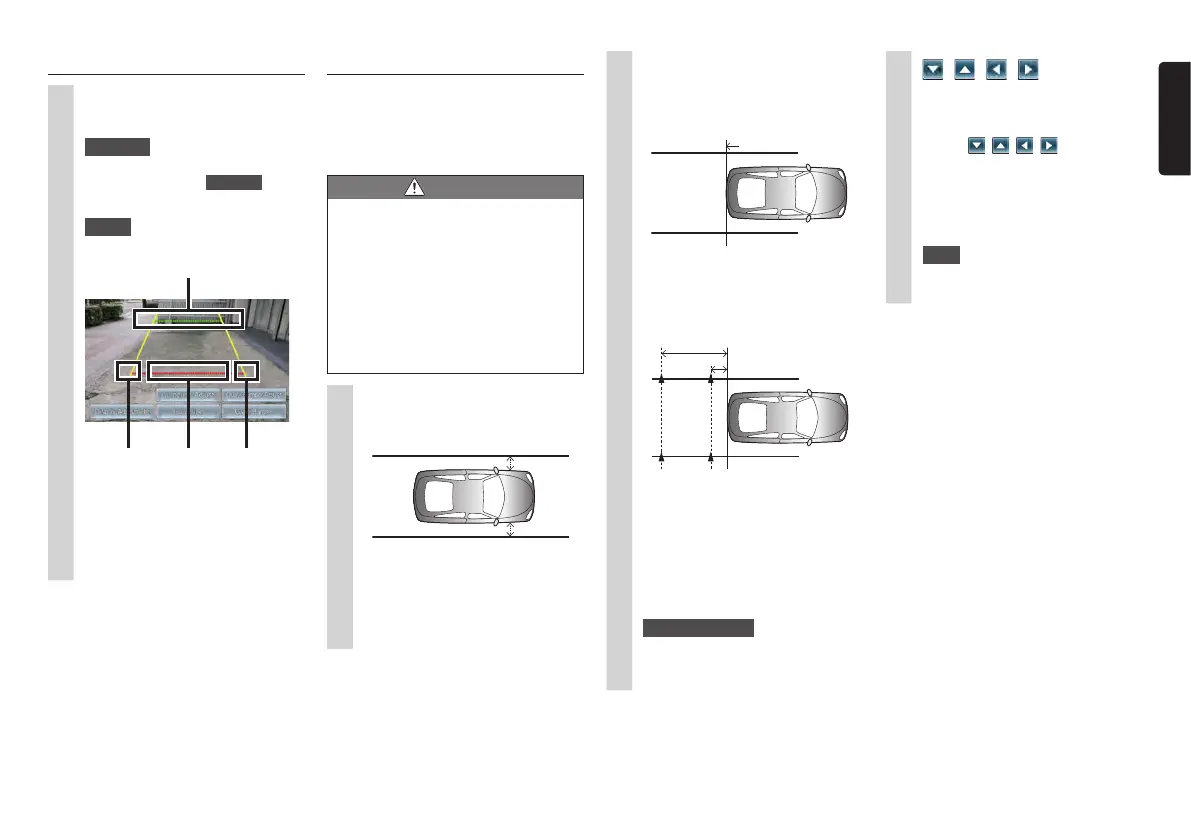

Displaying guidelines
1
Touch the screen while the rear
camera image is displayed.
2
Guideline
If five seconds elapses without you
touching the screen, Guideline will be
hidden.
3
Check
The guidelines are displayed.
A
B
C
C
A: Position about 2 m from the rear
end of the vehicle
B: Position about 50 cm from the rear
end of the vehicle
C: Approximately vehicle width + 20
cm
Adjusting the guidelines
When adjusting guidelines, marks must
be drawn on the ground. Prepare tools for
drawing lines on the ground, such as duct
tape. Also, be sure to do the adjustments to
match the car you drive.
WARNING
• Before adjusting the guidelines, stop
at a safe location.
• Before getting out of the vehicle and
marking the ground, be sure to turn
the engine key to the “OFF” position.
• Remember that guidelines are solely
for reference. During actual driving,
be sure to check the safety of the
area around you yourself.
1
Mark straight marks on the
ground at vehicle width + about
20 cm positions.
Approx. 20 cm
Approx. 20 cm
MEMO:
•Markonbothsidesofthevehicle
usingpackagingorsimilartape.
•Makethemarksslightlylongerthan
thelengthofthevehicle.
7
, , ,
Align the marks you made in step 3.
MEMO:
•Continuouslyholding
down
, , , allowsyouto
movealltheguidepointstogether.
8
Repeat steps 6 and 7 to align all
guide points with the marks you
made in step 3.
9
Back
This saves the settings and displays
the regular image in the rear camera.
2
Drive the vehicle forward by
about 2.5 meters, and mark
straight lines at the rear of the
vehicle.
Rear of vehicle
3
Mark four locations on the left
and right 50 cm and 2 m away
from the marks you made in step
2.
2 m
50 cm
MEMO:
•WerecommendmakinganXmark
usingpackagingorsimilartapethat
iseasilyvisiblefromthedriver’s
seat.
4
Display the guidelines

P.37
5
Guideline Adjust
6
Select the four guideline points
you want to adjust.

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
