D-Link DGS-1210-10 User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
108

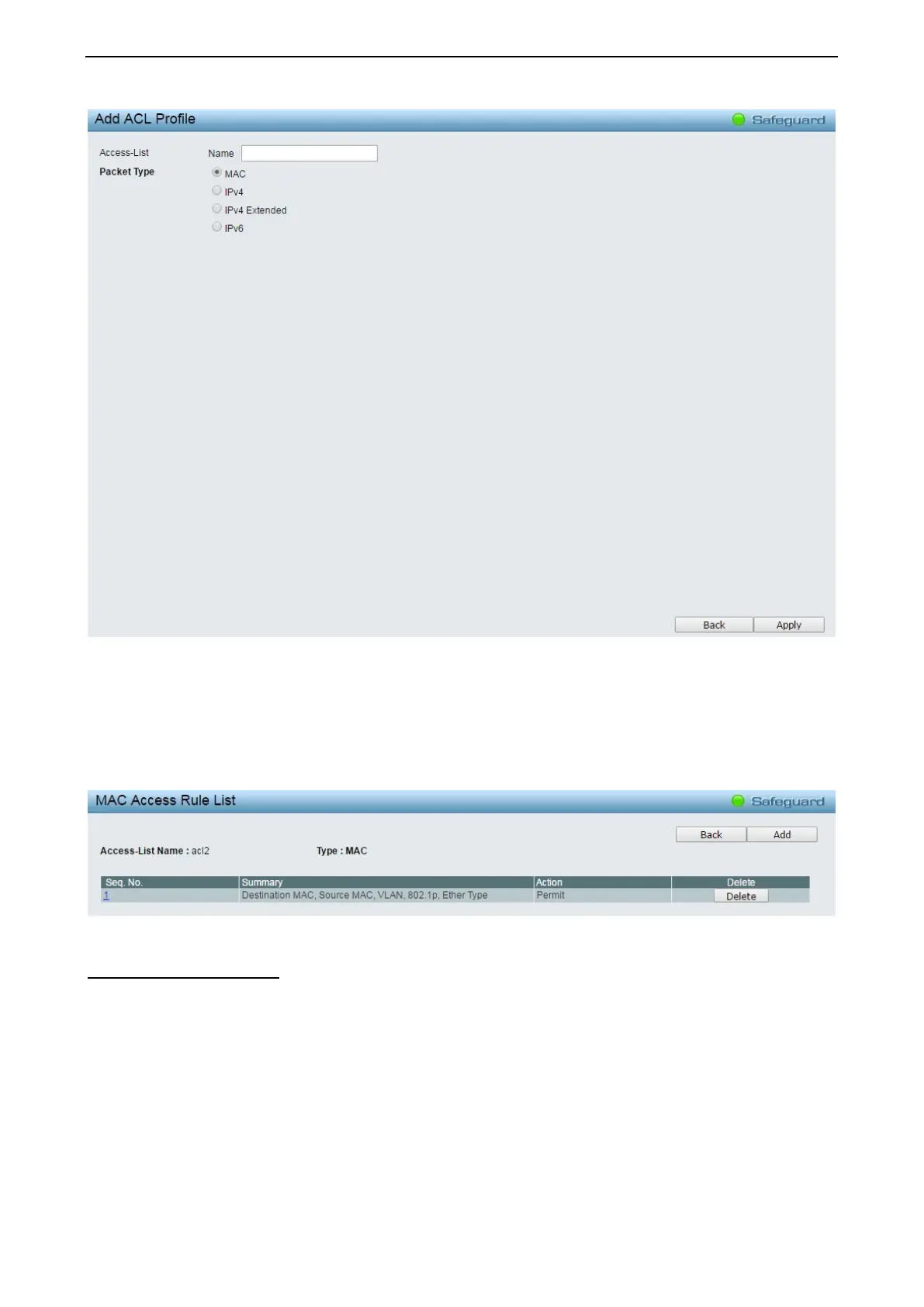

Figure 4.136 - ACL > ACL Access List – Add ACL Profile
Access-List: Specifies the access list name for the ACL profile to be added.
Packet Type: Specifies the packet type to be MAC, IPv4, IPv4 Exdended or IPv6 then click Apply button.
To modify an existing rule, click Edit Rules button and ACL Access list table will be displayed. Please click
on the Sequence No. hyperlink.
Figure 4.137 - ACL > ACL Access List – Update ACL Profile
ACL > ACL Access Group
The ACL Access Group page allows user to configure the ACL access group settings.

D-Link DGS-1210-10 Specifications

General

Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table Size	8K
VLANs	256
Jumbo Frame	9, 216 bytes
Fanless Design	Yes
Humidity	5% to 95% non-condensing
Ports	8 x 10/100/1000Base-T, 2 x SFP
Dimensions	280 x 180 x 44 mm
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
