D-Link DGS-1210-10 User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
72

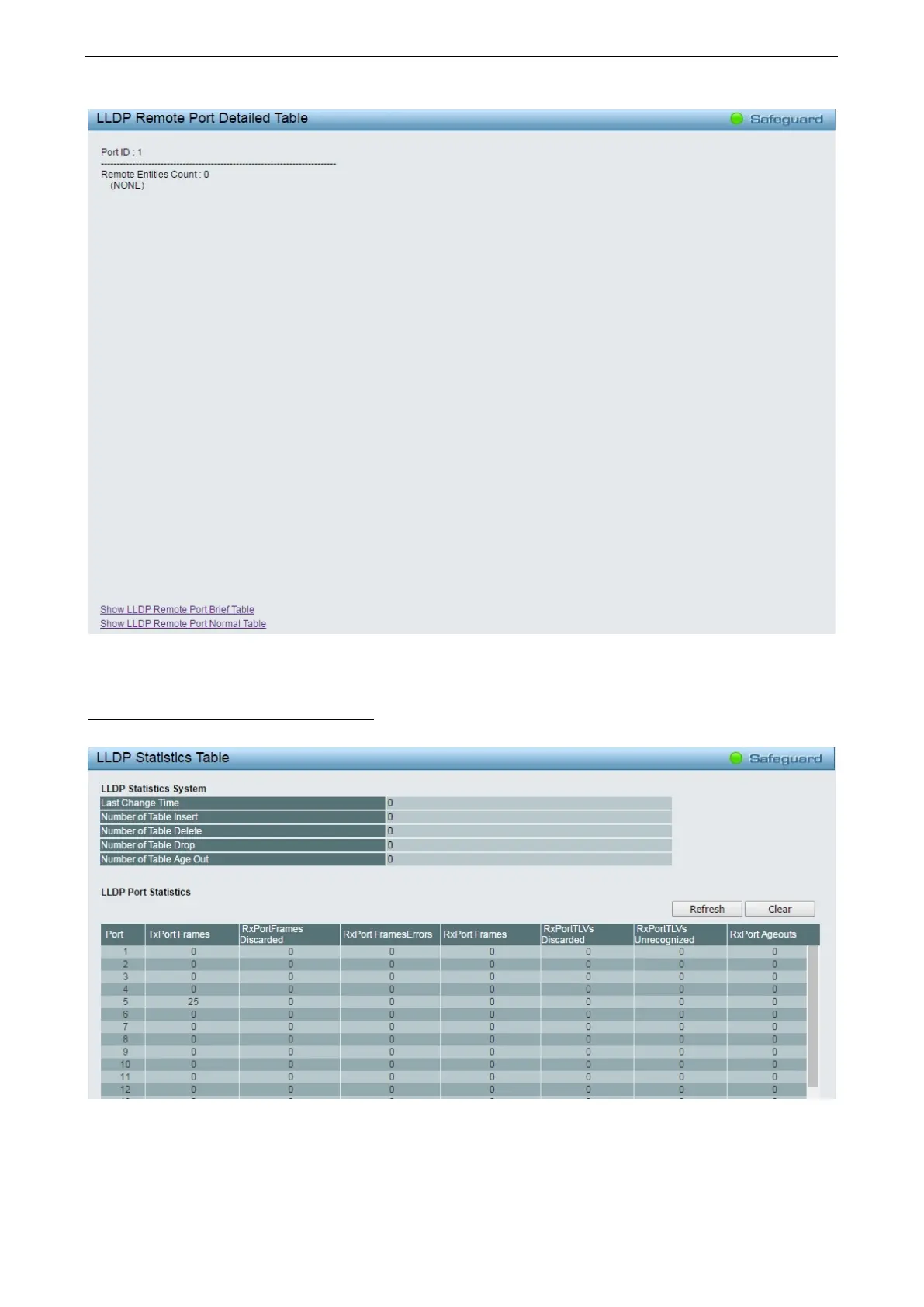

Figure 4.84 – L2 Functions > LLDP > LLDP Remote Port Detailed Table
L2 Functions > LLDP > LLDP Statistics
The LLDP Statistics page displays an overview of all LLDP traffic.
Figure 4.85 – L2 Functions > LLDP > LLDP Statistics
The following information can be viewed:
LLDP Statistics System: Displays the counters that refer to the whole switch.

D-Link DGS-1210-10 Specifications

General

Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table Size	8K
VLANs	256
Jumbo Frame	9, 216 bytes
Fanless Design	Yes
Humidity	5% to 95% non-condensing
Ports	8 x 10/100/1000Base-T, 2 x SFP
Dimensions	280 x 180 x 44 mm
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
