4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
6
6
5
5

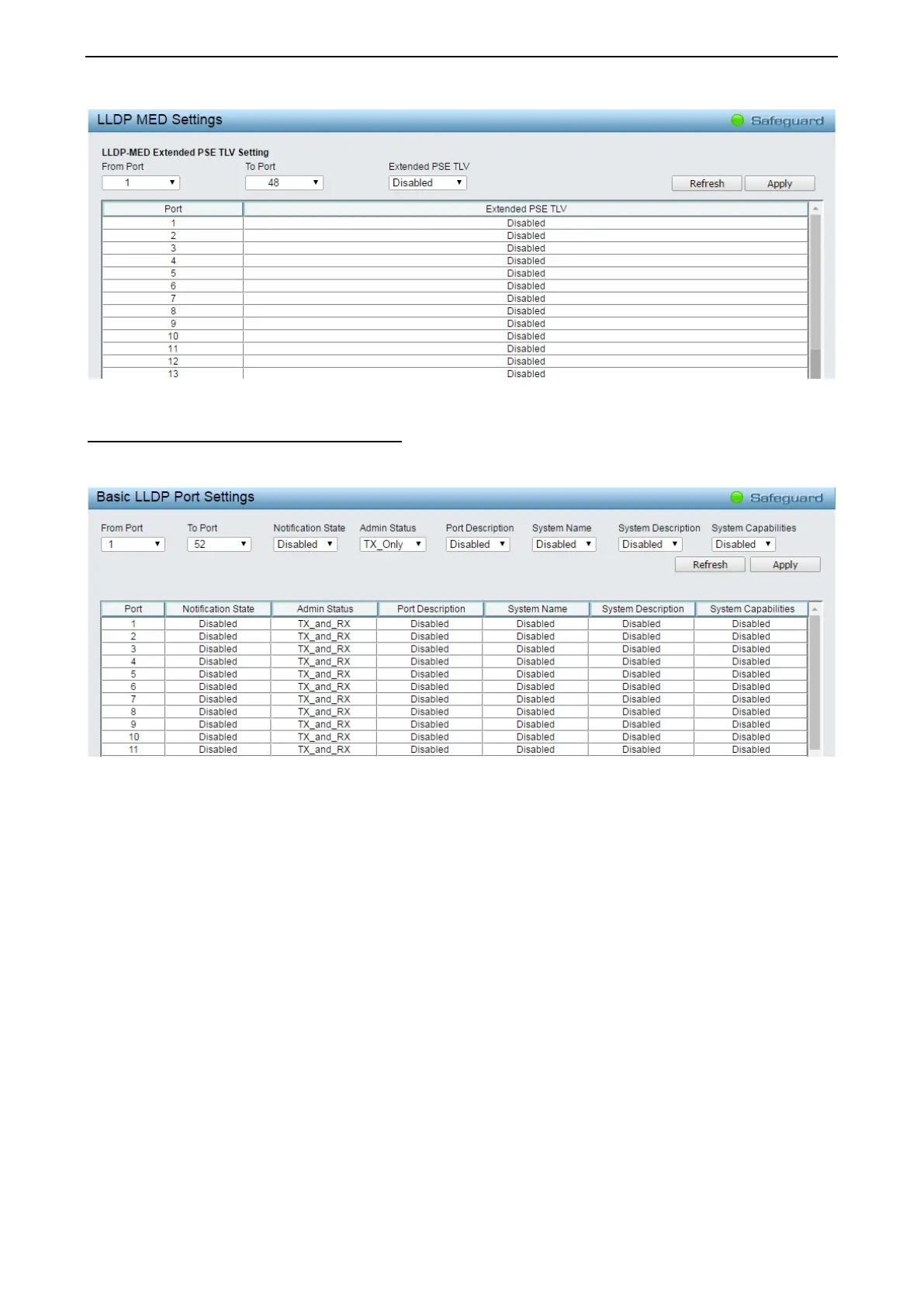

Figure 4.73 – L2 Functions > LLDP > LLDP–MED Settings
L2 Functions > LLDP > LLDP Port Settings
The Basic LLDP Port Settings page displays LLDP port information and contains parameters for configuring
LLDP port settings.
Figure 4.74 – L2 Functions > LLDP > LLDP Port Settings
From Port/ To Port: A consecutive group of ports may be configured starting with the selected port.
Notification State: Specifies whether notification is sent when an LLDP topology change occurs on the port.
The possible field values are:
Enabled – Enables LLDP notification on the port.
Disabled – Disables LLDP notification on the port. This is the default value.
Admin Status: Specifies the LLDP transmission mode on the port. The possible field values are:
TX_Only – Enables transmitting LLDP packets only.
RX_Only – Enables receiving LLDP packets only.
TX_and_RX – Enables transmitting and receiving LLDP packets. This is the default.
Disabled – Disables LLDP on the port.
Port Description: Specifies whether the Port Description TLV is enabled on the port. The possible field
values are:
Enabled – Enables the Port Description TLV on the port.
Disabled – Disables the Port Description TLV on the port.
System Name: Specifies whether the System Name TLV is enabled on the port. The possible field values
are:
Enabled – Enables the System Name TLV on the port.
Disabled – Disables the System Name TLV on the port.
