D-Link DGS-1210-10 User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
42

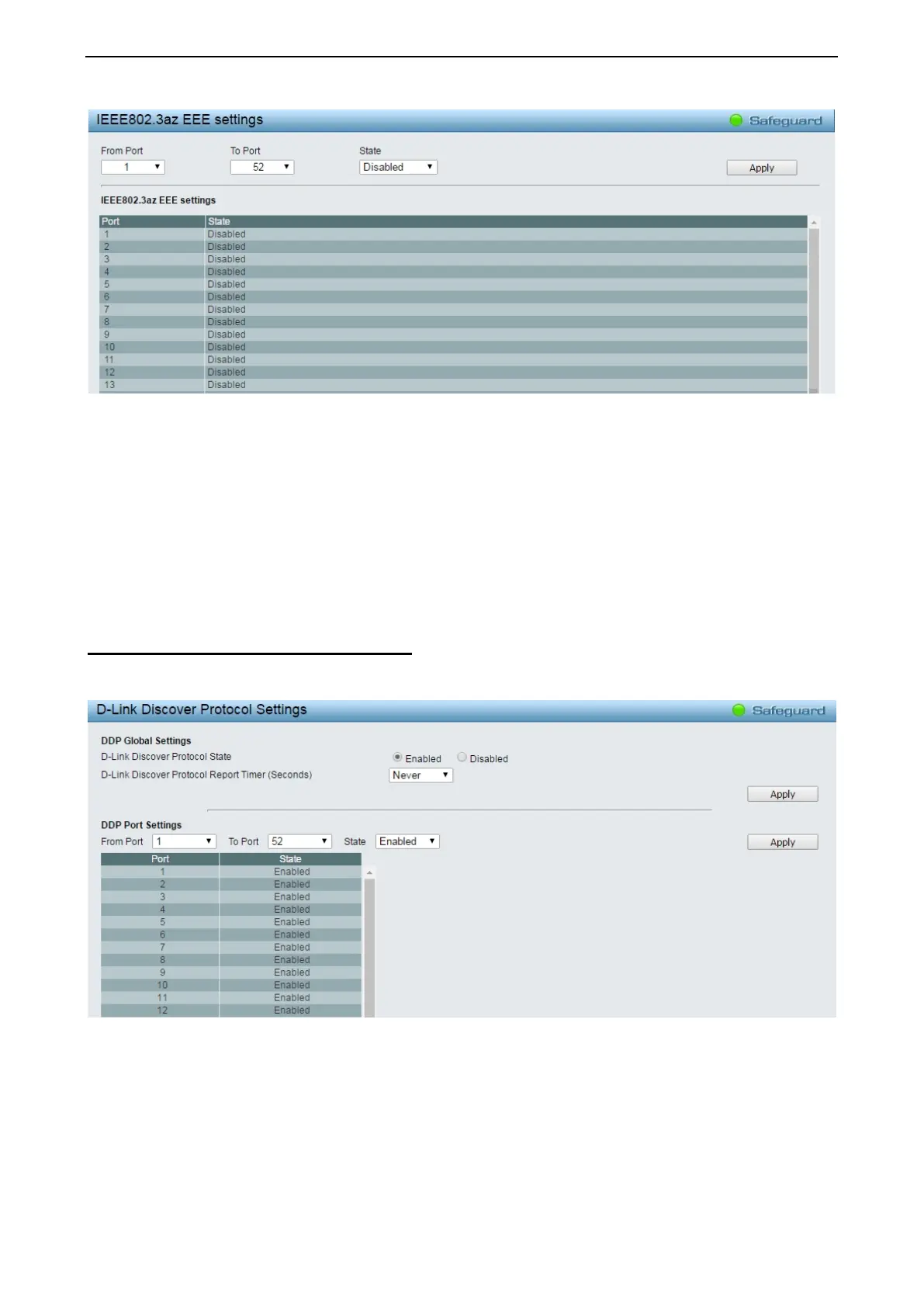

Figure 4.36 – System > IEEE802.3az EEE Settings
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
State: Enabled or Disabled the IEEE802.3az EEE for the specified ports. By default, all ports are disabled.
Click Apply to implement changes made.
If the connection speed drops down from 1000M to 100M, or the first link up takes longer time, please follow
below steps and check again:
1. Upgrade drivers of your Ethernet adapter or LAN controller for the host PC.
2. Disable EEE function on the switch port.
System > D-Link Discover Protocol Settings
For the D-Link Discovery Protocol (DDP) supported device, this page is an option for you to disable DDP or
configure the DDP packet report timer.
Figure 4.37 – System > D-Link Discover Protocol Settings
D-Link Discover Protocol State: Enable or disable the Discover Protocol state. The default value is
enabled.
D-Link Discover Protocol Report Timer (Seconds): Configure the report timer of D-Link Discover Protocol
in seconds. The values are 30, 60, 90, 120 or Never.
Click the Apply button to implement changes made..

D-Link DGS-1210-10 Specifications

General

Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table Size	8K
VLANs	256
Jumbo Frame	9, 216 bytes
Fanless Design	Yes
Humidity	5% to 95% non-condensing
Ports	8 x 10/100/1000Base-T, 2 x SFP
Dimensions	280 x 180 x 44 mm
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
