D-Link DGS-1210-10 User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
70

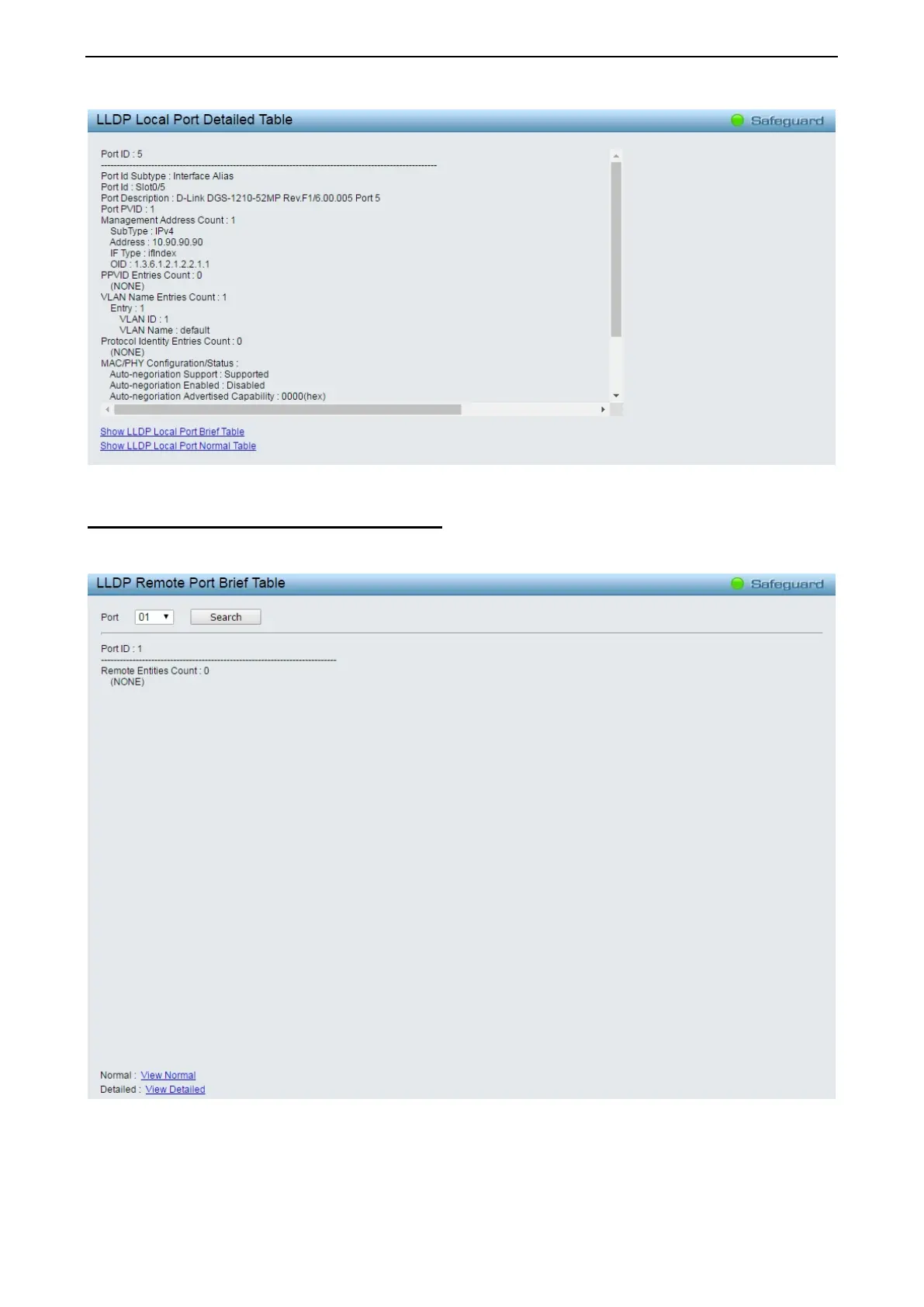

Figure 4.81 – L2 Functions > LLDP > LLDP Local Port Detailed Table
L2 Functions > LLDP > LLDP Remote Port Table
This LLDP Remote Port Table page is used to display the LLDP Remote Port Brief Table. Select port
number and click Search to display additional information.
Figure 4.82 – L2 Functions > LLDP > LLDP Remote Port Table
To view the settings for a remote port, click View Normal and the following page displays.

D-Link DGS-1210-10 Specifications

General

Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table Size	8K
VLANs	256
Jumbo Frame	9, 216 bytes
Fanless Design	Yes
Humidity	5% to 95% non-condensing
Ports	8 x 10/100/1000Base-T, 2 x SFP
Dimensions	280 x 180 x 44 mm
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
