5 Surveillance Mode Configuration

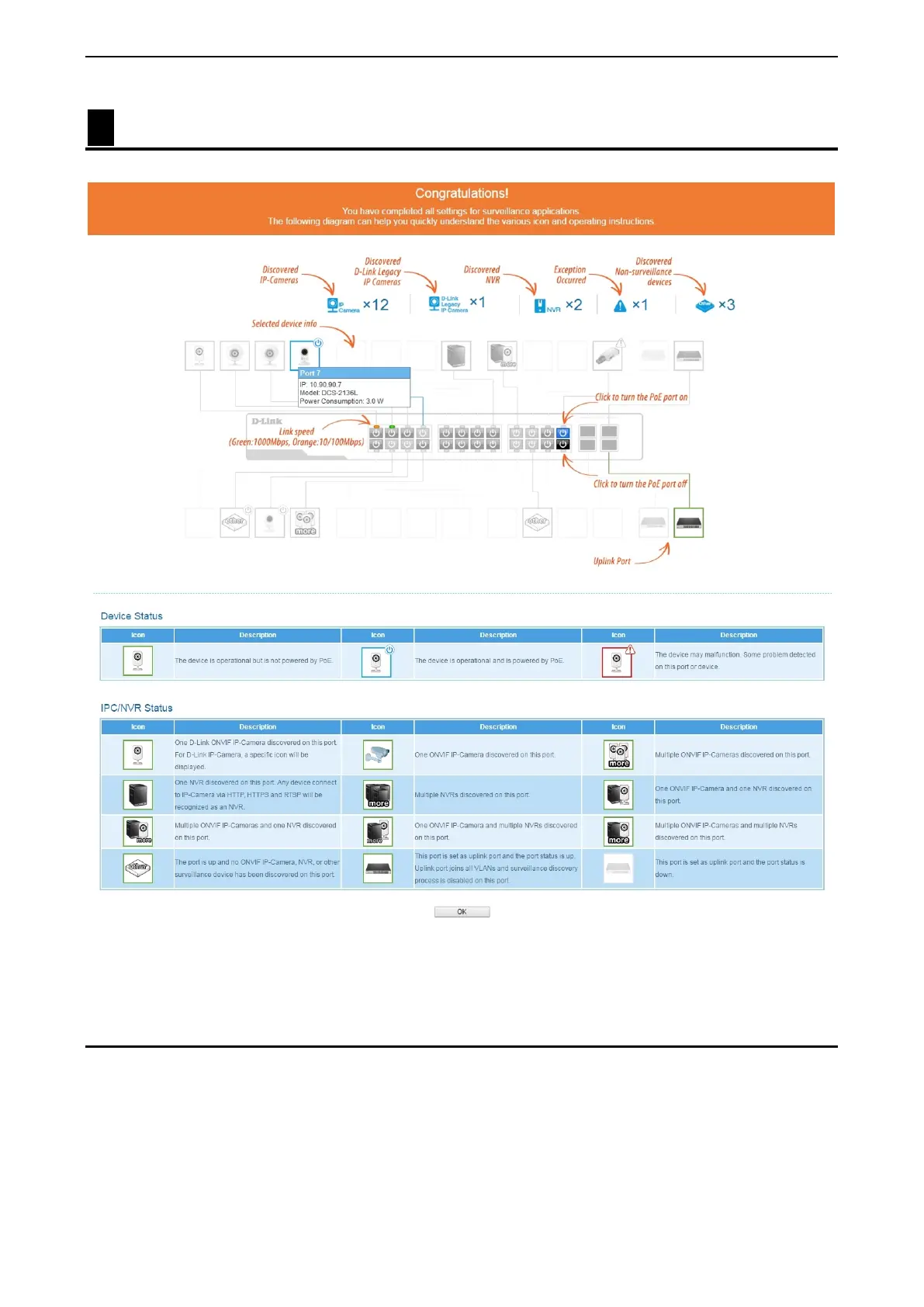

When you complete the Surveillance Mode Smart Wizard, you will be presented with the following screen:
Figure 5.1 – Surveillance Mode Congratulations window
Click OK button to continue to the Web UI.
Web User Interface
Before enter the Web User interface, the pop-up dialog will be shown as below. Click OK to enter the Web
user interface.

D-Link DGS-1210-10 Specifications

General

Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table Size	8K
VLANs	256
Jumbo Frame	9, 216 bytes
Fanless Design	Yes
Humidity	5% to 95% non-condensing
Ports	8 x 10/100/1000Base-T, 2 x SFP
Dimensions	280 x 180 x 44 mm
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
