D-Link DGS-1210-10 User Manual

5 Surveillance Mode Configuration D-Link Smart Managed Switch User Manual
1
1
3
3
5
5

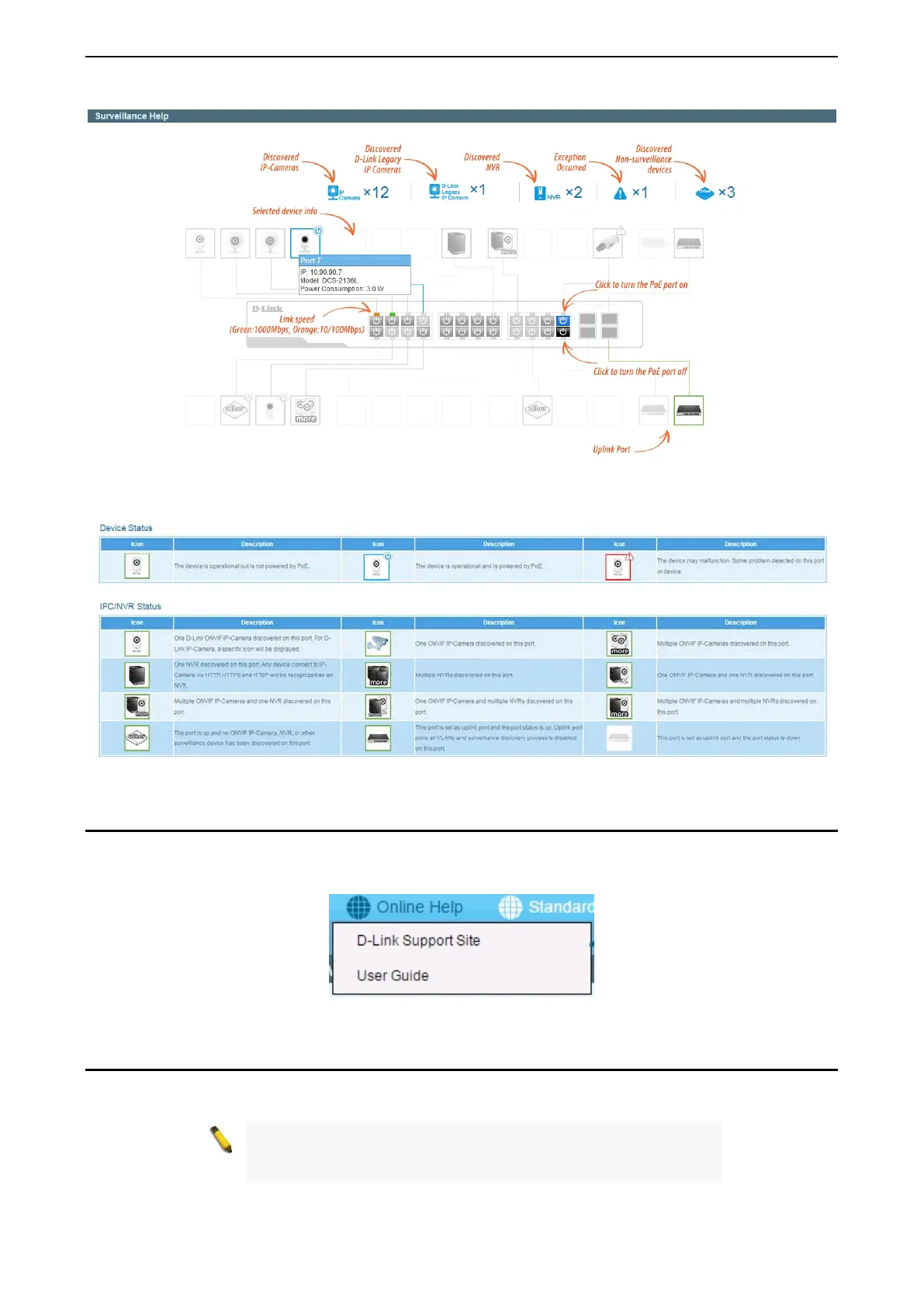

Figure 5.26 – Surveillance Mode > Help - Diagram
Figure 5.27 – Surveillance Mode > Help - Table
Tool Bar > Online Help
The Online Help provides two ways of online support: D-Link Support Site will lead you to the D-Link
website where you can find online resources such as updated firmware images; User Guide can offer an
immediate reference for the feature definition or configuration guide.
Figure 5.28 – Surveillance Mode > Online Help
Tool Bar > Standard Mode
By this option to access the Standard Mode Web UI available on the Switch.
NOTE: The Web Mode can only be changed to the Standard
Mode when one user session is connected to the Web UI of the
Switch.

D-Link DGS-1210-10 Specifications

General

Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table Size	8K
VLANs	256
Jumbo Frame	9, 216 bytes
Fanless Design	Yes
Humidity	5% to 95% non-condensing
Ports	8 x 10/100/1000Base-T, 2 x SFP
Dimensions	280 x 180 x 44 mm
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
