4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
50

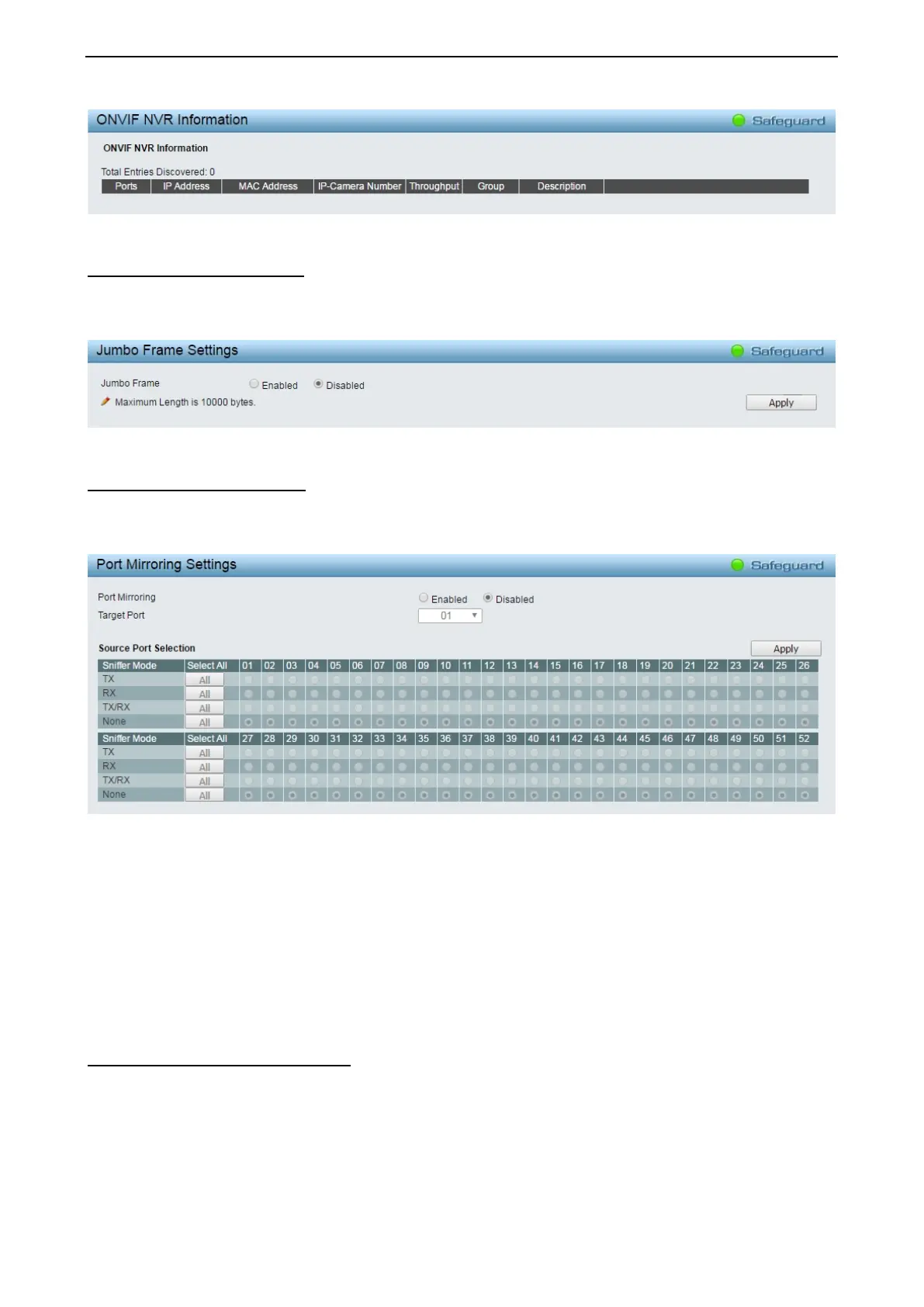

Figure 4.50 – VLAN > Auto Surveillance VLAN > ONVIF NVR Information
L2 Functions > Jumbo Frame
D-Link Gigabit Smart Managed Switches support jumbo frames (frames larger than the Ethernet frame size
of 1536 bytes) of up to 10000 bytes (tagged). Default is disabled, Select Enabled then click Apply to turn on
the jumbo frame support.
Figure 4.51 – L2 Functions > Jumbo Frame
L2 Functions > Port Mirroring
Port Mirroring is a method of monitoring network traffic that forwards a copy of each incoming and/or
outgoing packet from one port of the Switch to another port, where the packet can be studied. This enables
network managers to better monitor network performances.
Figure 4.52 – L2 Functions > Port Mirroring
Selection options for the Source Ports are as follows:
TX (transmit) mode: Duplicates the data transmitted from the source port and forwards it to the Target Port.
Click “all” to include all ports into port mirroring.
RX (receive) mode: Duplicates the data that is received from the source port and forwards it to the Target
Port. Click “all” to include all ports into port mirroring.
TX/RX (transmit and receive) mode: Duplicate both the data transmitted from and data sent to the source
port, and forwards all the data to the assigned Target Port. Click “all” to include all ports into port mirroring.
None: Turns off the mirroring of the port. Click “all” to remove all ports from mirroring.
L2 Functions > Loopback Detection
The Loopback Detection function is used to detect the loop created by a specific port while Spanning Tree
Protocol (STP) is not enabled in the network, especially when the down links are hubs or unmanaged
switches. The Switch will automatically shutdown the port and sends a log to the administrator. The
Loopback Detection port will be unlocked when the Loopback Detection Recover Time times out. The
Loopback Detection function can be implemented on a range of ports at the same time. You may enable or
disable this function using the pull-down menu.
