NOTE:
● Ensure latching features on retaining clip, and DLC module are aligned during assembly.
● Ensure that the pin 1 indicator on the DLC module is aligned with the pin 1 indicator on the retaining clip before
placing the DLC module onto the retaining clip.

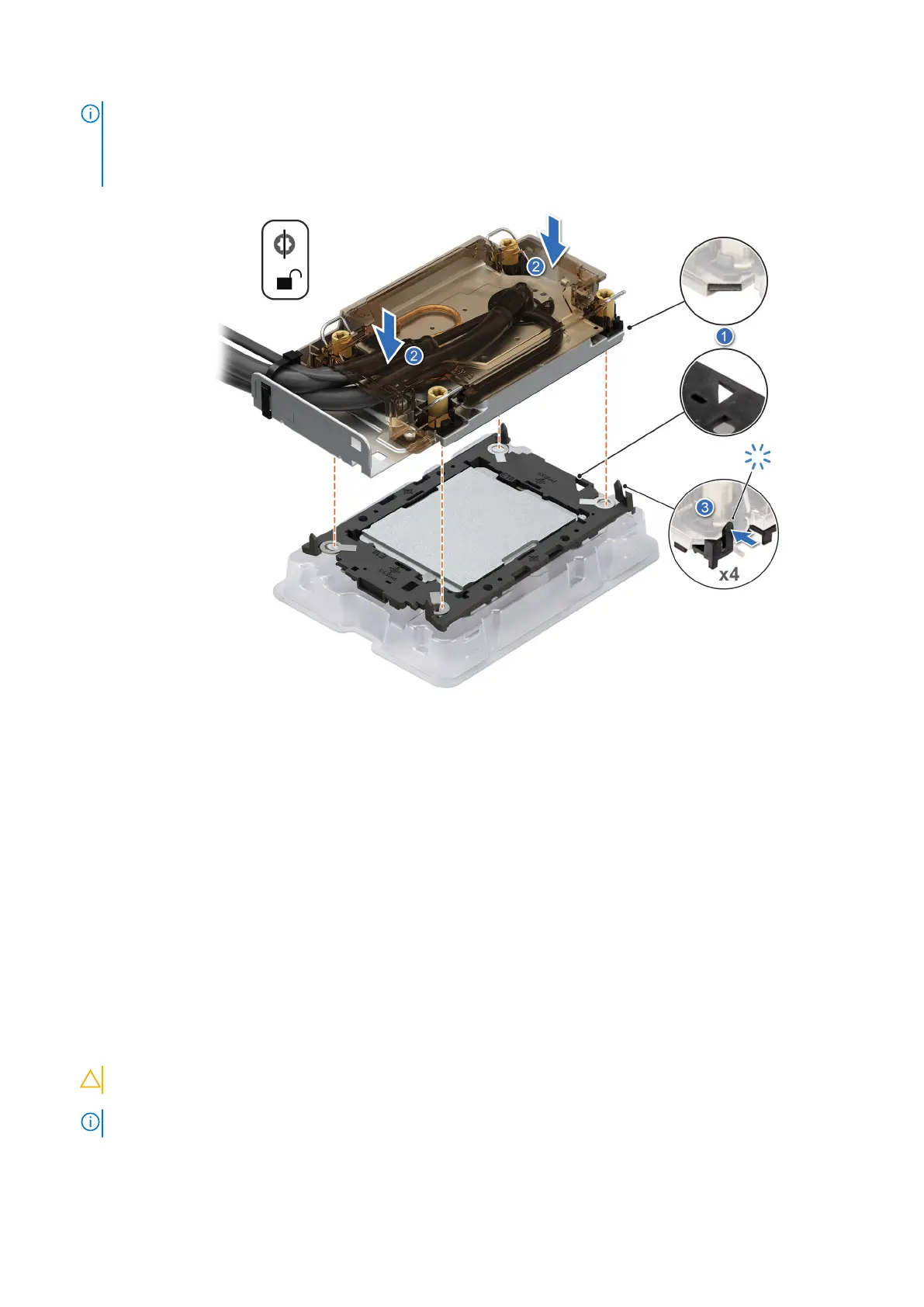

Figure 86. Installing the DLC module onto the processor
Installing the processor and heat sink module
Prerequisites
Never remove the heat sink from a processor unless you intend to replace the processor or heat sink. The heat sink is necessary
to maintain proper thermal conditions.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
4. If installed, remove the processor dust cover.
Steps
1. Set the anti-tilt wires to the unlocked position on the heat sink (inward position).
2. Align the pin 1 indicator of the heat sink to the system board, and then place the processor heat sink module (PHM) on the
processor socket.
CAUTION: To avoid damaging the fins on the heat sink, do not press down on the heat sink fins.
NOTE: Ensure that the PHM is held parallel to the system board to prevent damaging the components.
Installing and removing system components 107
