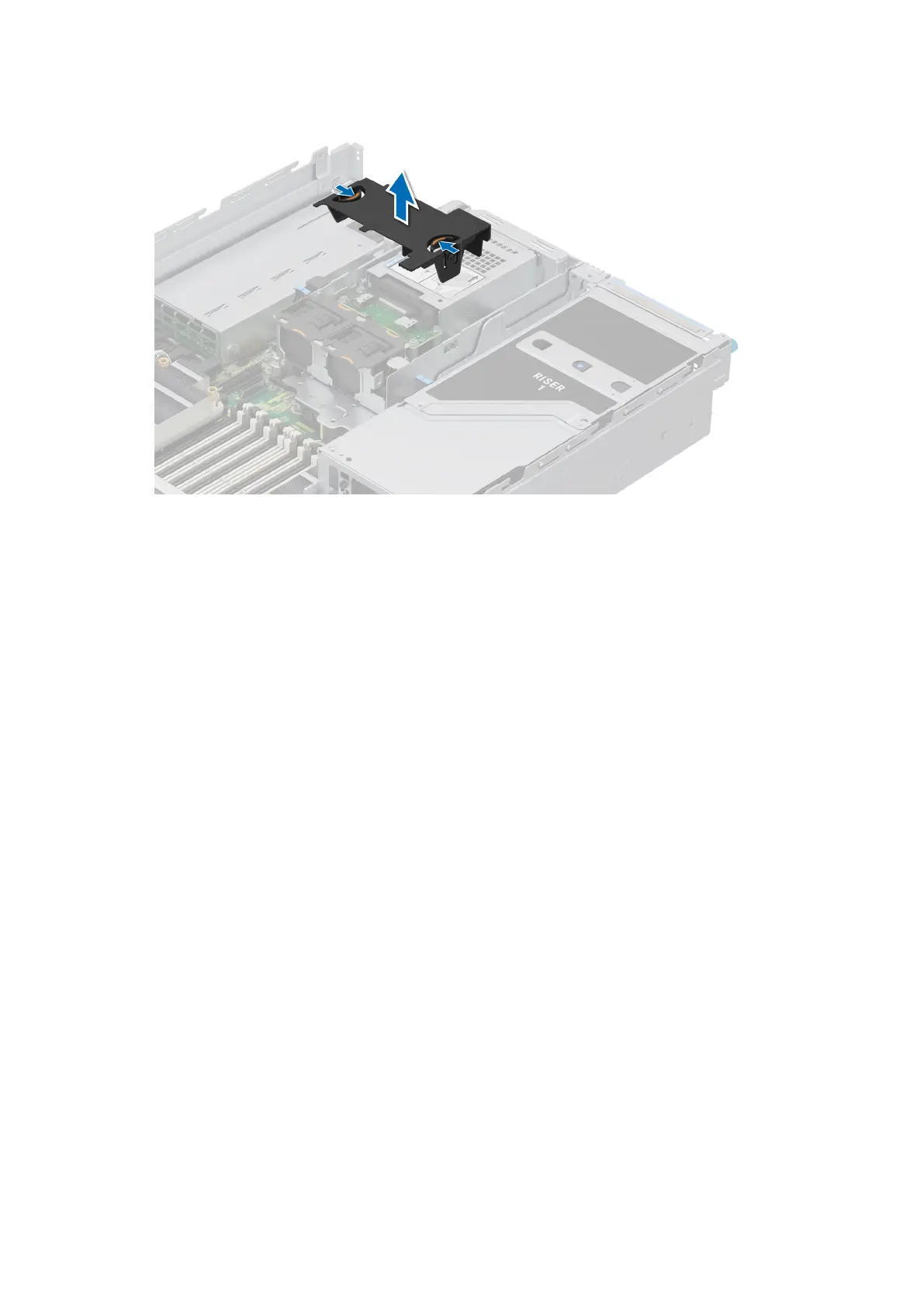

Figure 33. Removing the 2 x 2.5-inch rear drive module air shroud
Installing the 2 x 2.5-inch rear drive module air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the tabs on the air shroud with the slots on the rear drive module.
2. Lower the air shroud into the rear drive module until it is firmly seated.
62
Installing and removing system components
