Removing the BOSS-N1 card carrier blank
The removal of the BOSS-N1 card carrier blank from the Riser 1 and 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps

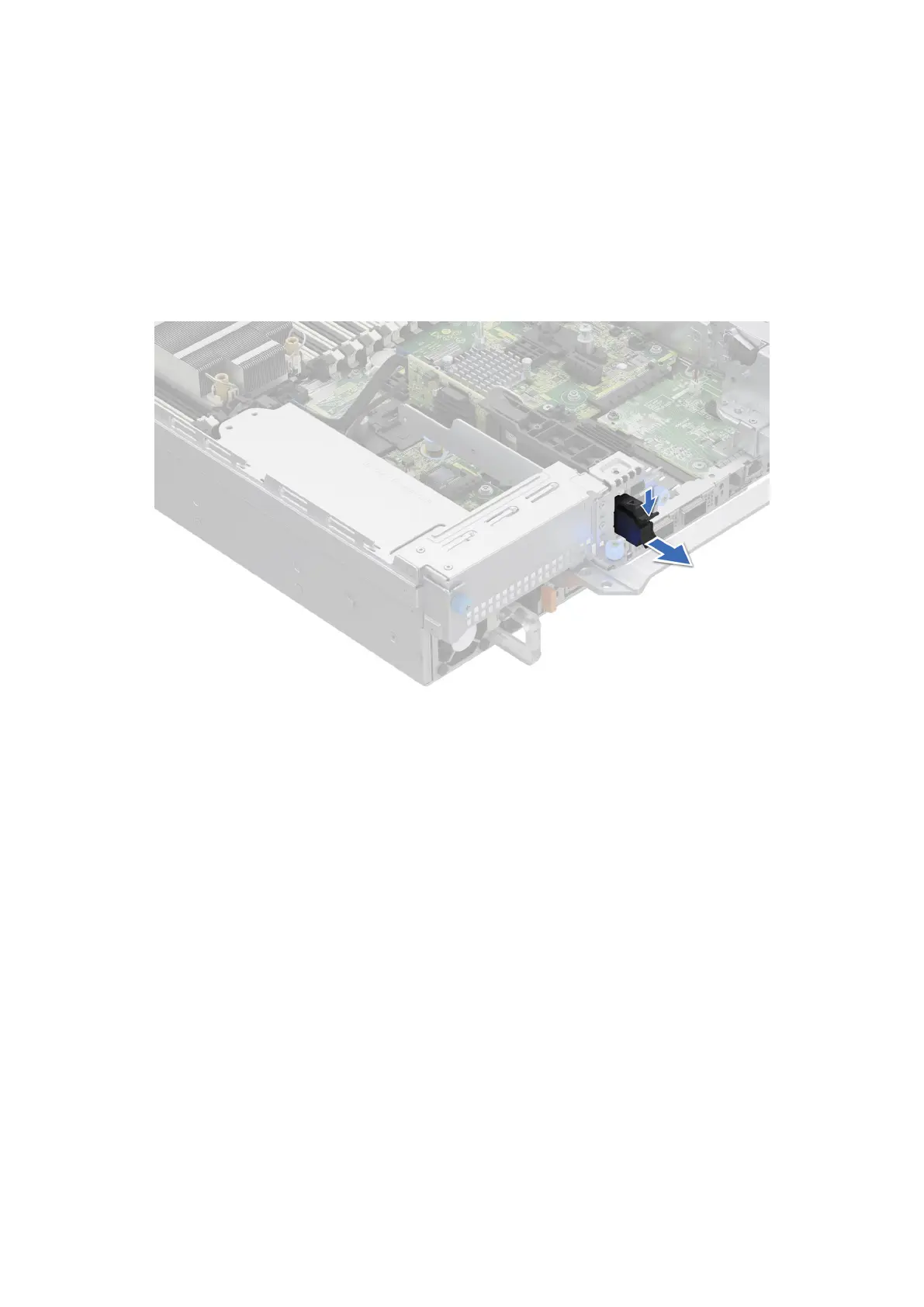

Press and pull the BOSS-N1 card carrier blank out from the BOSS-N1 module.
Figure 156. Removing the BOSS-N1 card carrier blank
Installing the BOSS-N1 card carrier blank
The installation of the BOSS-N1 card carrier blank to the Riser 1 and 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
Steps
Align the blank with the BOSS-N1 module bay and push it into the bay until it clicks into place.
162
Installing and removing system components
